SMA to U.FL Cables
The developer kit includes three 4.5" SMA to U.FL cables which are preinstalled on the developer board. Consult
the mechanical drawings for your device to determine which antenna to connect to which U.FL connector on the
device.

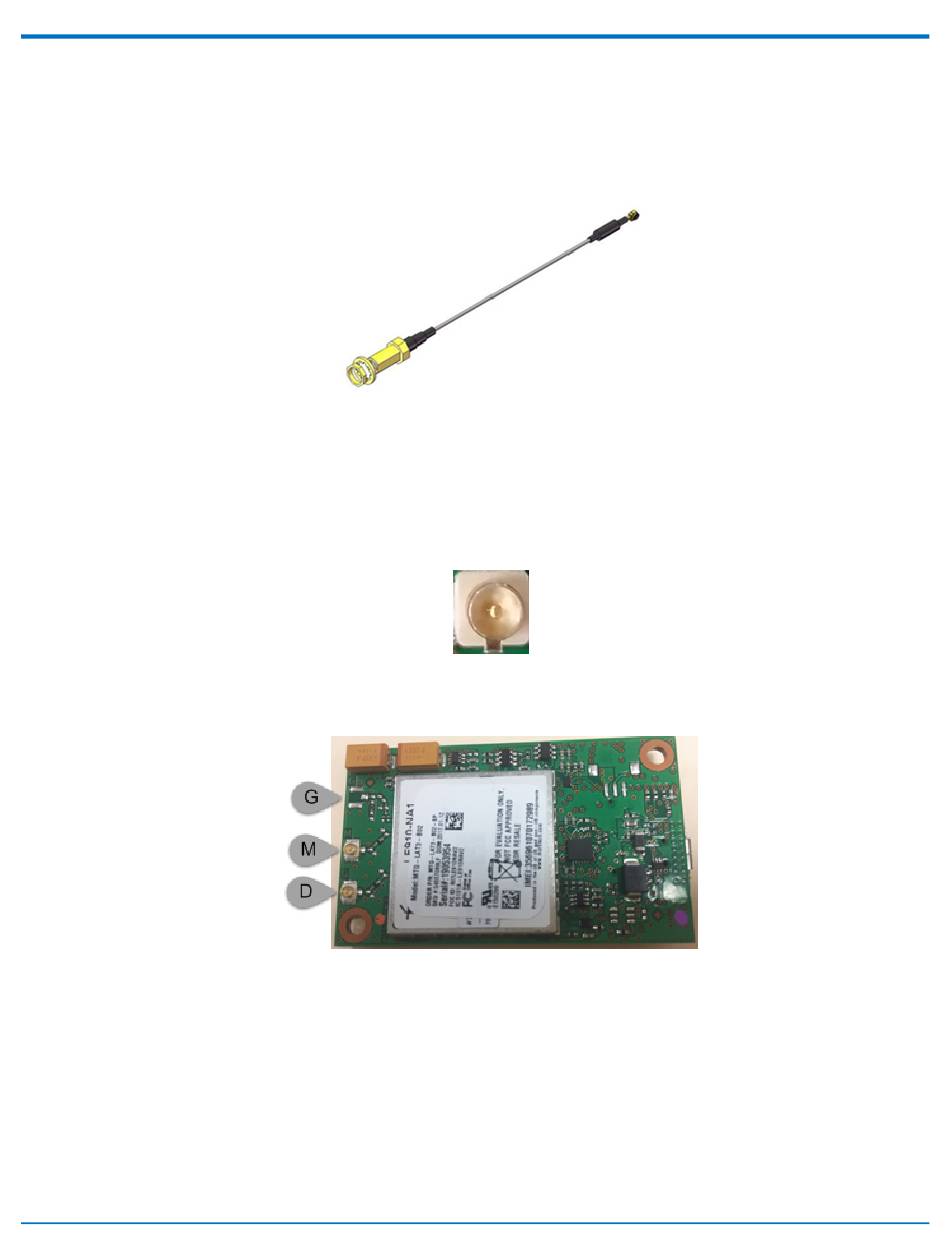

Connecting an Antenna through the Developer Board Connectors
To connect an antenna to the device through the developer board:
1.
Determine which SMA connector you want to use for the antenna.
2.
Finger tighten the antenna to the SMA connector.
3.
Attach the U.FL connector from the cable to the connector on the device.
G = GPS (may not apply to your device)
M = Main
D = Diversity
