E3939
2/10/2020
INSTALLATION & OPERATION INSTRUCTIONS
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
FEDERAL INDUSTRIES
Toll Free 1(800)356-4206

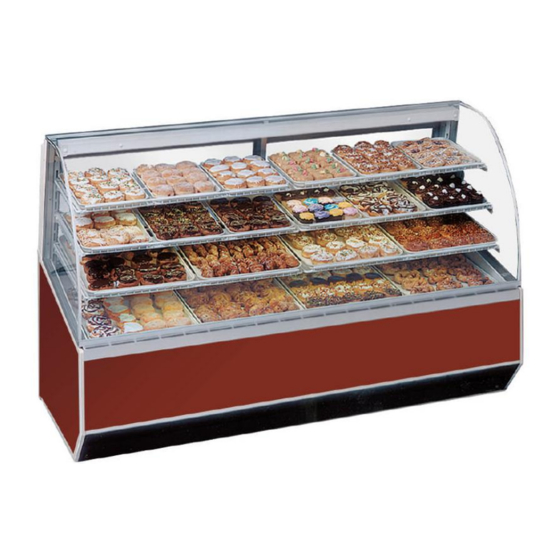

SN48, SN59, SN77, SN96
SN48SS, SN59SS, SN77SS
Non-Refrigerated Units
215 Federal Avenue
WI Phone (608)424-3331
Belleville, WI 53508
Fax: (608)424-3234
Advertisement
Table of Contents
Related Manuals for Federal SN48
Summary of Contents for Federal SN48

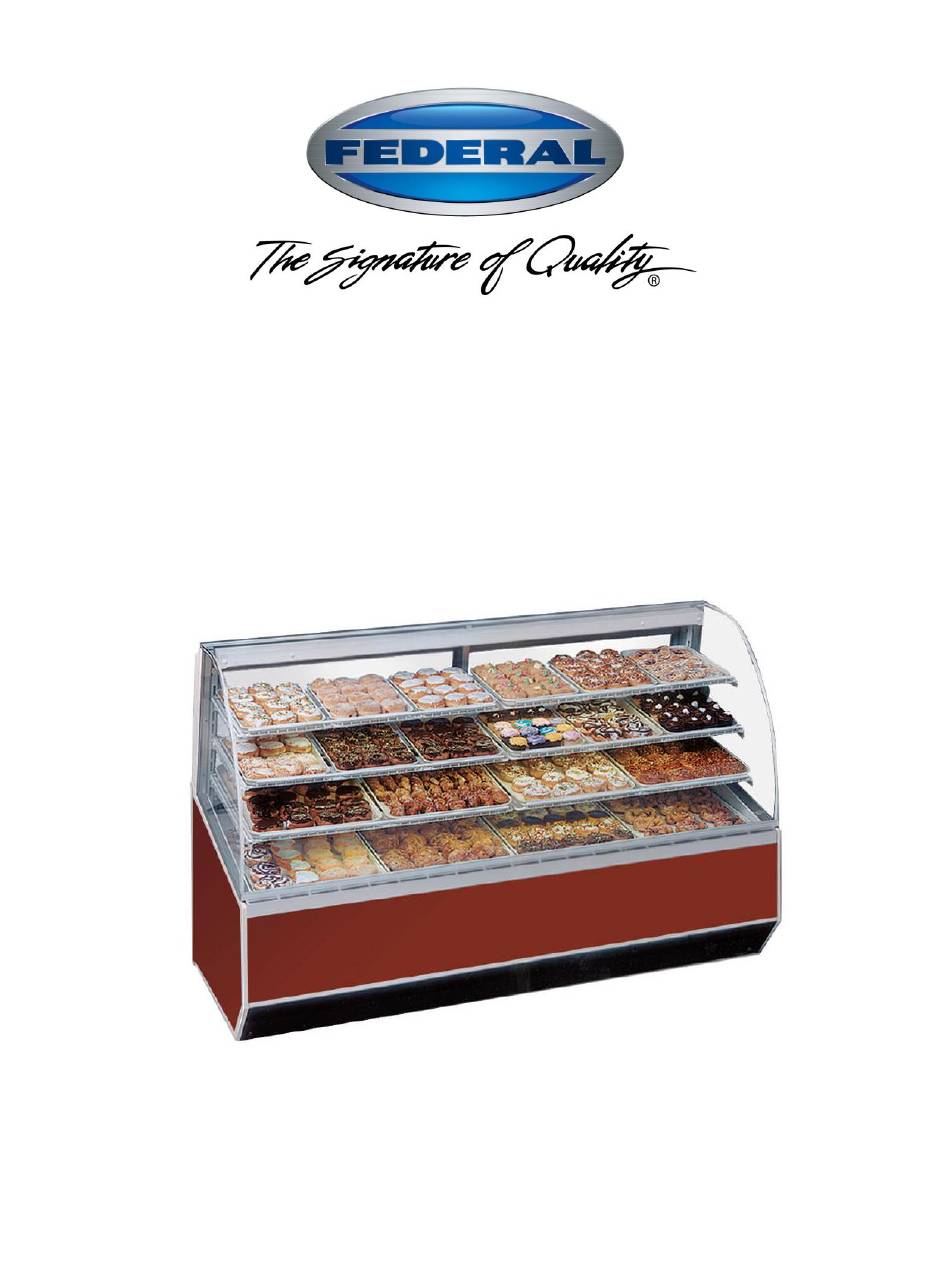

- Page 1 E3939 2/10/2020 SN48, SN59, SN77, SN96 SN48SS, SN59SS, SN77SS Non-Refrigerated Units INSTALLATION & OPERATION INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE Engineering and technical data are subject to change without notice. FEDERAL INDUSTRIES 215 Federal Avenue Belleville, WI 53508 Toll Free 1(800)356-4206...
-
Page 2: Table Of Contents
PRE-SERVICE CHECKLIST……………………………………………………………………….….16 SALE & DISPOSAL……………………………………………………………………16 OWNER RESPONSIBILITY………………………………………………………………………...…16 ELECTRICAL DATA………………………………………………………………….17 REPLACEMENT PARTS………………………………………………………..18-19 REPLACEMENT PARTS SN48, SN59, SN77, SN96………………………………………………….18 REPLACEMENT PARTS SN48SS, SN59SS, SN77SS………………………………………………...19 WIRING DIAGRAM- MAIN WIRING………………………………………………20 WIRING DIAGRAM- SN48 & SN59 W/LIGHTS…………………………………...21 WIRING DIAGRAM- SN77 W/LIGHTS……………………………………………..22 WIRING DIAGRAM- SN48SS & SN59SS W/LIGHTS…………………………..23 WIRING DIAGRAM- SN77SS W/LIGHTS………………………………..………...24... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Federal Industries display case. This manual contains important instructions for installing and servicing the Series ’90 Non-Refrigerated Bakery Cases. A repair parts list and wiring diagram are also included in the manual. Read all of these documents carefully before installing or servicing your case. -
Page 4: Warning Labels & Safety Instructions
This is important installation, operation, or service information. If you ignore the message, you may damage your case. The warning and safety labels shown throughout this manual are placed on your Federal Industries case at the factory. Follow all warning label instructions. If any warning or safety labels become lost or damaged, call our customer service department at 1(800)356-4206 for replacements. -
Page 5: Pre-Installation Procedures
PRE-INSTALLATION PROCEDURES Inspection for Shipping Damage You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for damage as soon as they arrive. If damage is noted to shipping crates or cartons or if a shortage is found, not this on the bill of lading (all copies) prior to signing. -
Page 6: Grill Removal
Grill Removal DANGER: Electrical Shock Hazard. Do not operate unit with panels removed. The front of the case has a removable base panel to access the front leg levelers from the inside of the case. Normally it is not necessary to remove the panel to install the case. This panel must be in place for proper operation of the case. -
Page 7: Shelving
Shelving Remove both rear doors from the track by lifting them upward until the bottom edge clears the lower door track and then outward. Lift up the front glass to the fully open positon. Put the shelf support assembly in the desired shelf standard slots. Plug the shelf light cords in the appropriate light socket. -
Page 8: Optional Glass Shelves
Optional Glass Shelves Put the glass shelves on the rear shelf support and shelf light housing as shown. The shelf retainer should sit over the rear shelf support. If the shelf is not in the proper position, it may disrupt the air flow in the case and could cause product loss. -
Page 9: Electrical Information & Grounding
ELECTRICAL INFORMATION & GROUNDING This Case Must Be Grounded DANGER: Improper or faulty hookup of electrical components in the display case can result in severe injury or death. All case electrical connections must be performed only by a licensed electrician. All electrical hookups must be done in accordance with all applicable local, regional, or national electrical standards. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Initial Start-Up After all the checks outlined in the installation section of this manual have been made, the case is ready to be put into service. Controls Light Switch This switch controls the power to all shelf lights and top light. The rocker switch is red in the on position. -
Page 11: Hinged Front Glass
Hinged Front Glass The front glass hinges up for easy cleaning of the case interior. Pneumatic cylinders assist in lifting the glass. The glass will hold in any position beyond approximately the first 20” of travel. In the first 20” of travel, the glass will gently close. See diagram below: The hinged glass mechanism will give years of reliable operation in normal usage. -
Page 12: Light Replacement
Light Replacement The light fixtures use a spring loaded socket on one end. To remove light, push the bulb toward the spring-loaded socket until the opposite end drops out of the socket. The bulbs are furnished with plastic safety light shields. Make certain the light shields are always in place to safeguard against bulb breakage. -
Page 13: Cleaning Instructions
CLEANING INSTRUCTIONS Daily Cleaning The case should be cleaned thoroughly, as describe in the weekly cleaning section, before it is used for the first time. NOTICE: Avoid splashing or soaking any electrical components with water to prevent electrical damage to the case. NOTICE: Shut off light and remove all product from case. -
Page 14: Interior Cleaning
Interior Cleaning 1. Remove rear doors from track by lifting door upward until the bottom of the door clears the lower door track and then outward. Remove the inner door in the same manner. 2. Lift up the front glass to the fully open position. 3. -
Page 15: Service Information
(800) 356-4206 and choose the Warranty Parts Option Email: Parts@Federalind.com Federal Industries has partnered with Parts Town for ALL Non-Warranty Part Identification, Pricing, Lead Times, Orders & Freight Quotes. Please contact Parts Town directly if you need parts: Website: PartsTown.com Email: CustomerService@PartsTown.com... -
Page 16: Pre-Service Checklist
SALE & DISPOSAL Owner Responsibility If you sell or give away your Federal Industries case you must make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. Contact the customer service department at Federal Industries at (800)356-4206. -
Page 17: Electrical Data
ELECTRICAL DATA All Models are 120 Volts, 1 Phase, 60 Hertz SN48 SN59 SN77 SN96 AMPS SN48SS SN59SS SN77SS AMPS Refer to the rating plate data attached to the rear of the case for Maximum Fuse Size and Minimum Circuit Ampacity. -
Page 18: Replacement Parts
REPLACEMENT PARTS MODELS SN48, SN59, SN77, SN96 Part Description Part Number Electrical Components SN48 SN59 SN77 SN96 Light Switch 41-11066 41-11066 41-11066 41-11066 Auxiliary Fan 41-11170 41-11170 41-11170 41-11170 Auxiliary Fan Switch 39-11066 39-11066 39-11066 39-11066 Terminal Block 45-11056 45-11056... -
Page 19: Replacement Parts Sn48Ss, Sn59Ss, Sn77Ss
REPLACEMENT PARTS MODELS SN48SS, SN59SS & SN77SS Part Description Part Number Electrical Components SN48SS SN59SS SN77SS Light Switch 41-11066 41-11066 41-11066 Auxiliary Fan 41-11170 41-11170 41-11170 Auxiliary Fan Switch 39-11066 39-11066 39-11066 Terminal Block 45-11056 45-11056 45-11056 Ballast 39-12904 39-12904 39-12904 Light Bulb 42-11069... -
Page 20: Wiring Diagram- Main Wiring
WIRING DIAGRAM- MAIN WIRING Series ’90 Non-Refrigerated Bakery Page 20... -
Page 21: Wiring Diagram- Sn48 & Sn59 W/Lights
WIRING DIAGRAM- SN48 & SN59 W/LIGHTS Series ’90 Non-Refrigerated Bakery Page 21... -
Page 22: Wiring Diagram- Sn77 W/Lights
WIRING DIAGRAM- SN77 W/LIGHTS Series ’90 Non-Refrigerated Bakery Page 22... -
Page 23: Wiring Diagram- Sn48Ss & Sn59Ss W/Lights
WIRING DIAGRAM- SN48SS & SN59SS W/LIGHTS Series ’90 Non-Refrigerated Bakery Page 23... -
Page 24: Wiring Diagram- Sn77Ss W/Lights
WIRING DIAGRAM- SN77SS W/LIGHTS Series ’90 Non-Refrigerated Bakery Page 24... - Page 25 California Residents Only. WARNING This product can expose you to chemicals including chromium which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Series ’90 Non-Refrigerated Bakery Page 25...
- Page 26 APP’D CHANGE RECORD DATE ECN# Series ’90 Non-Refrigerated Bakery Page 26...
