Summary of Contents for netsys NV-320DP

  • Page 1 ’ ’ ’...

  • Page 2: Copyright

    In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to make changes to the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

  • Page 3: Foreword

    DIP switch on rear panel of NV-320DP. NV-320DP will automatically do auto-negotiation & auto-MDIX to set up the most stable & fastest connection between NV-320DP and the devices that connected to it on Ethernet side. NV-320DP is specifically designed for FTTdp/FTTC network, and it supports both symmetrical and asymmetrical transmission at up to 160/160Mbps and 2Mbps / 500Kbps at 3000 meters, which is a perfect solution to extend LAN to buildings, hotels, hospitals or any location outside of the 10/100/1000Base-T(Ethernet) or fiber optic.

  • Page 4: Safety Warnings

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Safety Warnings For your safety, be sure to read and follow all warning notices and instructions before using the device. DO NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks.

  • Page 5: Table Of Contents

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Table of Contents Copyright ................................2 Foreword ................................3 Safety Warnings ..............................4 Chapter 1. Unpacking Information ........................7 1.1 Check List....................................7 Chapter 2. Installing the Device ......................... 8 2.1 Hardware Installation .................................
  • Page 6 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Appendix B: Product Specification ......................... 20 Appendix C: DIN-Rail mount installation ......................22 Appendix D: Troubleshooting .......................... 23 Appendix E: Compliance and Safety Information ..................25 Warranty ................................

  • Page 7: Chapter 1. Unpacking Information

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Chapter 1. Unpacking Information 1.1 Check List Carefully unpack the package and check its contents against the check list. Package Contents: 1 x NV-320DP 1 x QR code for user’s Accessory: manual hyperlink.

  • Page 8: Chapter 2. Installing The Device

    2.1 Hardware Installation This chapter describes how to install the bridge and establish the network connections. The NV-320DP may be installed on any level surface (e.g. a table or shelf or rail). However, please take note of the following minimum site requirements before one begin.

  • Page 9: General Rules

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 2.3 General Rules Before making any connections to the bridge, please note the following rules: • SFP Port All Fiber optical network connections to the SFP port must use Fiber 1.25G SFP transceiver.

  • Page 10: Connecting The Ethernet

    2.4 Connecting the Ethernet of RJ-45 Ports NV-320DP has two Ethernet ports which support connection to Ethernet operation. The devices attached to these ports must support auto-negotiation or 10Base-T, 100Base-T or 1000Base-T unless they will always operate at half duplex.

  • Page 11: Connecting The Rj-11 / Rj-45 Ports

    2.6 Connecting the Line of RJ-11 Port The line port has 2 connectors: RJ-45 and terminal block. It is used to connect with NV-320DP(CO) using a single pair phone cable to NV-320DP(CPE) bridge side (point to point solution). Take note that NV-320DP line port RJ-11 and terminal block cannot be used at the same time.
  • Page 12 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 When inserting a RJ-11 plug, make sure the tab on the plug clicks into position to ensure that it is properly seated. Do not plug a RJ-11 phone jack connector into the Ethernet port (RJ-45 port). This may damage the bridge. Instead, use only twisted-pair cables with RJ-45 connectors that conform to Ethernet standard.

  • Page 13: Application Diagram

    Even though Fiber optic is a well developed technology, it still can't reach some places due to cost & physical limit. To extend Fiber optic service to region where Fiber optic infrastructure is not advanced, NV-320DP will play an important role in such situation.

  • Page 14: Chapter 3. Hardware Description

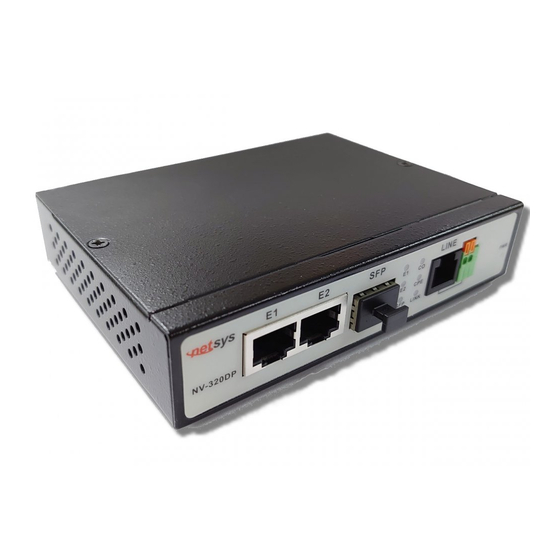

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Chapter 3. Hardware Description This section describes the important parts of NV-320DP. It features the front panel and rear panel. 1. Front Panel: The front panel provides SFP Slot, RJ-45 Connector, RJ-11 connector and LED indicators of NV-320DP.
  • Page 15 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Table 2-1 Description of the front interface Port Name Connector type Description E1 / E2 RJ-45 For connecting to a Networking device. SFP slot For small form-factor pluggable transceiver.
  • Page 16 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 VDSL Config Overview Below table clarify the settings of 9 different VDSL modes. DIP Switch on rear panel Config Mode Description PIN1 PIN2 PIN3 PIN4 Symmetric Auto, Max. Interleave=8, Min.Inp=2,...

  • Page 17: Led Indicators

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 3.1 LED Indicators The NV-320DP has 7 LED indicators. The following Table shows the description. (Table 2-1) Table 2-1 LED Indicators Description and Operation LEDs Color...

  • Page 18: Appendix A: Cable Requirements

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Appendix A: Cable Requirements A.1 Ethernet Cable A CAT 5~7 UTP (unshielded twisted pair) cable is typically used to connect the Ethernet device to the Modem. A: 10/100TX cable often consists of four pairs of wires, two of which are used for transmission.
  • Page 19 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Figure A-2 Pin Assignments and Wiring for an RJ-45 Straight-Through Cable Figure A-3 Pin Assignments and Wiring for an RJ-45 Crossover Cable...

  • Page 20: Appendix B: Product Specification

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Appendix B: Product Specification Key Features and Benefits: Supports 2 x 10/100/1000BASE T & auto –MDIX for RJ-45 port Supports 1 x 1.25G SFP Slot Cost effective Copper/Fiber to xDSL bridge function for FTTDP/FTTC application...
  • Page 21 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Specification: Item Description Protocol and Standards : IEEE 802.3u / IEEE802.3ab / IEEE802.3z Ethernet: 1000Base-T Cat.5 or above UTP Cable Fiber Optic: 1000Base-X Flexible (Depending on Fiber...

  • Page 22: Appendix C: Din-Rail Mount Installation

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Appendix C: DIN-Rail mount installation This appendix describes how to install the DIN-Rail to the bridged. The accessory is optional. Please refer to install the DIN-RAIL as following step: 1.

  • Page 23: Appendix D: Troubleshooting

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Appendix D: Troubleshooting Diagnosing Bridge’s Indicators The Bridge can be easily monitored through its comprehensive panel indicators. These indicators assist in identifying problems the Media Converter may encounter. This section describes common problems you may encounter and possible solutions: 1.
  • Page 24 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 System Diagnostics Power and Cooling Problems If the POWER indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply.

  • Page 25: Appendix E: Compliance And Safety Information

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 System Integrity As a last resort verify the switch integrity with a power-on reset. Turn the power to the switch off and then on several times. If the problem still persists and you have completed all the preceding diagnoses, then contact your dealer.
  • Page 26 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If this telephone equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required.
  • Page 27 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 If you experience trouble with this unit, please contact customer service of your dealer immediately. DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.
  • Page 28 NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 RoHS Mark Warning RoHS stands for Restriction of Hazardous Substances, and impacts the entire electronics industry and many electrical products as well. The original RoHS, also known as Directive 2002/95/EC, originated in the European Union in 2002 and restricts the use of six hazardous materials found in electrical and electronic products.

  • Page 29: Warranty

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Warranty The original owner that the product delivered in this package will be free from defects in material and workmanship for one year parts after purchase.

  • Page 30: Chinese Sj/T 11364-2014

    NV-320DP : Ethernet Extender with 2 Giga LAN ports + SFP USER’S MANUAL Ver.A.2 Chinese SJ/T 11364-2014 有 毒 有 害 物 质 或 元 素 部件名称 铅(Pb) 汞(Hg) 镉(Cd) 六价铬[Cr(VI)] 多溴联苯(PBB) 多溴二苯醚(PBDE) 结构壳体 ○ ○ ○ ○ ○ ○...
