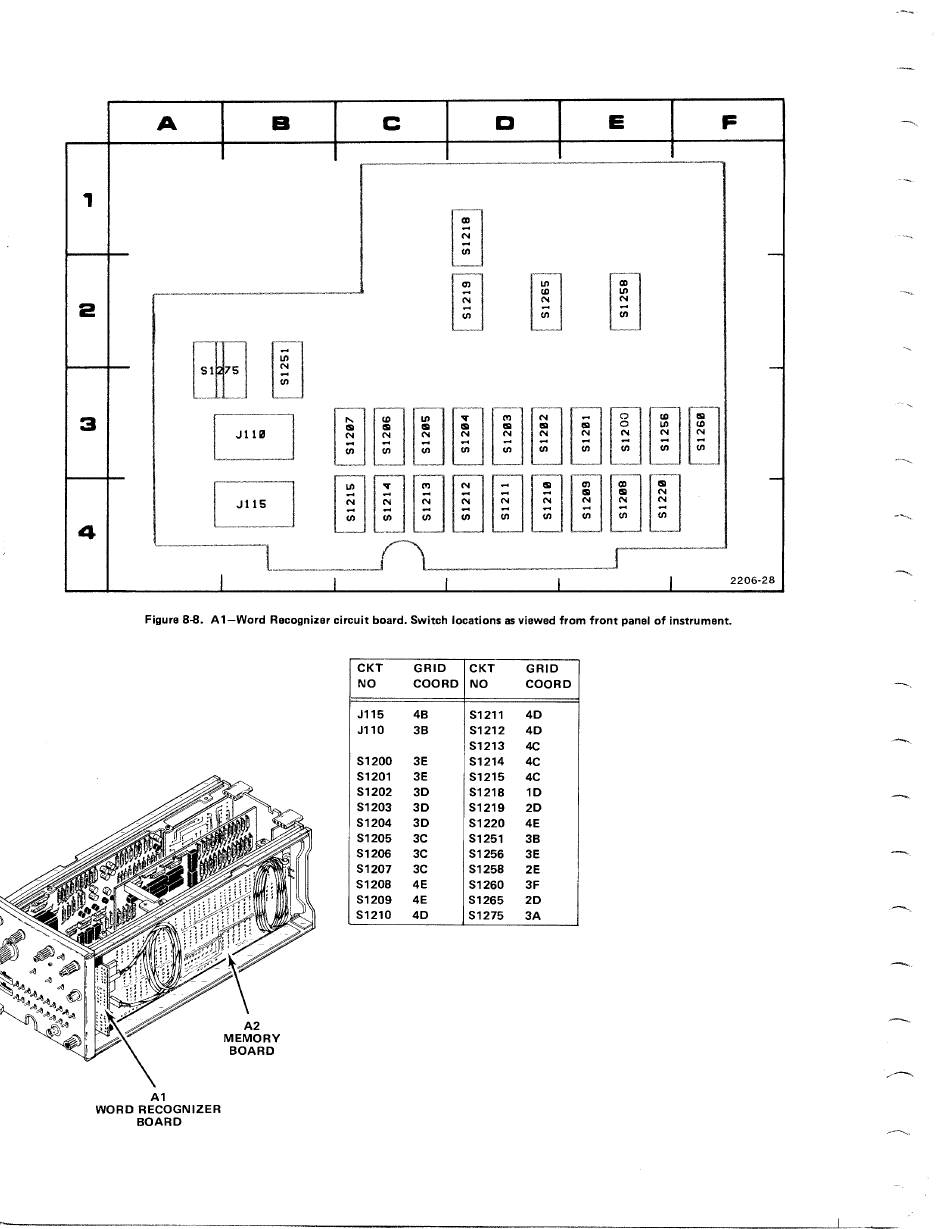

Figure 8-8. Al-Word Recognizer circuit board. Switch locations as viewed from front panel o f instrument.
- - -
1 -
GRID ~ K T G R I D ~
COORD NO COORD
MEMORY
BOARD
A 1
WORD RECOGNIZER
BOARD
- -
J115 4B
J l l O 3 B
S1200 3E
S1201 3E
S1202 3D
S1203 3D
S1204 3D
S1205 3C
S1206 3C
S1207 3C
S1208 4E
S1209 4E
S1210 4D
- -- - -
- -
--- --
S1211 4D
S1212 4 D
S1213 4C
S1214 4C
S1215 4C
S1218 1 D
S1219 2D
S1220 4E
S1251 3B
S1256 3E
S1258 2E
S1260 3F
S1265 2 D
S1275 3 A
-
