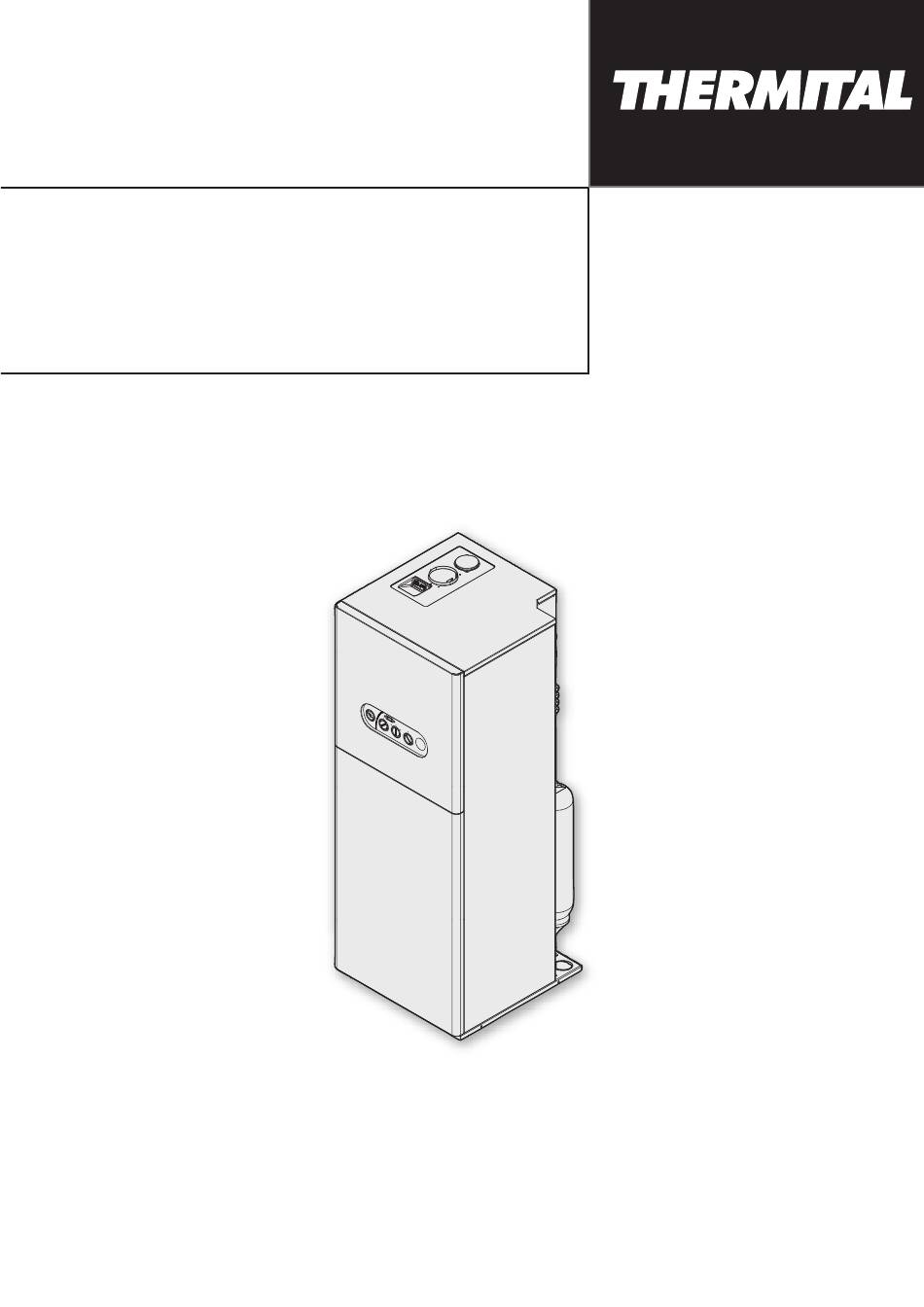

- Page 1 USER MANUAL SUNDAY 30/130 B...
-
Page 2: Table Of Contents
CONTENTS Precautions page 4 General safety information “ Control panel “ Start-up “ Shutdown “ Warning LEDs and errors “ Cleaning “ Maintenance “ Useful information “ The following symbols are used in this manual: = Identifies actions that require caution and ade- quate preparation. - Page 3 Dear Customer, Thank you for choosing a THERMITAL boiler. You have purchased a modern, high efficiency, qua- lity product that will give you an excellent level of comfort as well as silent, safe service for many years to come. Arrange for your boiler to be serviced regularly by Technical Assistance Service.
-
Page 4: Precautions
The boiler must only be used for the purpose spe- cified by THERMITAL and for which it is designed. the installation has been completed the highest standards in compliance with the instruc-... -
Page 5: Control Panel
QUADRO DI COMANDO CONTROL PANEL 40 60 80 Set to SUMMER Set to MINIMUM 1 Storage cylinder temperature gauge Displays domestic hot water temperature. 2 Boiler pressure gauge Displays the pressure in the central heating circuit. Å Storage cylinder temperature selector Adjusts domestic hot water temperature. -
Page 6: Start-Up
START-UP Have THERMITAL’s Technical Assistance Service start-up your boiler for the first time. Once this has been done, the boiler can be left to function automatically. Under certain circumstances, such as after long periods of disuse, the user may need to re-start it without involving the THERMITAL’s Technical Assistance Service. Before doing so, perform the following checks and operations. - Page 7 SETTING DOMESTIC HOT WATER TEMPERATURE To set domestic hot water temperature, make sure that no central heating zone is requesting heat (the “Ot” message must not be visible on the boiler display). Make sure that there is 40 60 80 no bridge between terminals 23-24, 26-27 and 29-30.
- Page 8 If any ignition or functioning errors occur, the boiler per- forms a “SAFETY SHUTDOWN”. The green LED on the control panel goes out and an error code flashes on the display. The red LED (3) indicates a burner lock-out. See the “WARNING LEDS AND ERRORS”...
-
Page 9: Shutdown
SHUTDOWN If you are going away for a short period of time like a weekend or a short holiday, etc., turn the function selector to “ É “ OFF/RESET. The digital display reads out the message shown alongside. 40 60 80 Because electrical power and the gas supply to the boiler both remain on, the boiler is protected by the following systems:... -
Page 10: Warning Leds And Errors
WARNING LEDS AND ERRORS THE MAIN CONTROL PANEL Green LED (2) Off = boiler in stand-by, burner out On = burning lit, boiler functioning normally. Red LED (3) Safety shutdown: an error code flashes on the display. Burner lockout: the red LED lights and an error code flashes on the display. - Page 11 Dealing with error AL41 Check the pressure on the control panel pressure gauge; if it is below 0.5 bar, proceed as follows. - Turn the function selector to “ ” É - Remove the top front panel from the boiler by pulling it forwards.
-
Page 12: Cleaning
PROFESSIONALLY QUALIFIED HEATING ENGINEERS UNDERTAKE PERIODIC MAINTENANCE COMBUSTION EFFICIENCY MEASUREMENTS. THERMITAL’s Technical Assistance Service is qualified to satisfy these legal requirements and can also provide useful information on MAINTENANCE PROGRAMMES designed to guarantee: - greater safety - compliance with applicable legislation - freedom from the risk of fines in the event of spot checks. -
Page 13: Useful Information
USEFUL INFORMATION Seller: Installer: ....................................................................................................................Address Address ......................................................Tel. Tel............................................................Technical Assistance Service: ............................................Address ............................Tel............................... Date Work done Fuel oil supplier: ....................................................Address ............................Tel............................... Date Quantity supplied Date Quantity supplied Date... - Page 14 USER ENGLISH...
- Page 16 RIELLO S.p.A. Via Ing. Pilade Riello, 7 37045 - Legnago (VR) www.thermital.it As part of the company’s ongoing commitment to perfecting its range of products, the appearance, dimensions, technical data, equipment and accessories may be subject to variation.
