7A24 (SN B103000 8t UP)

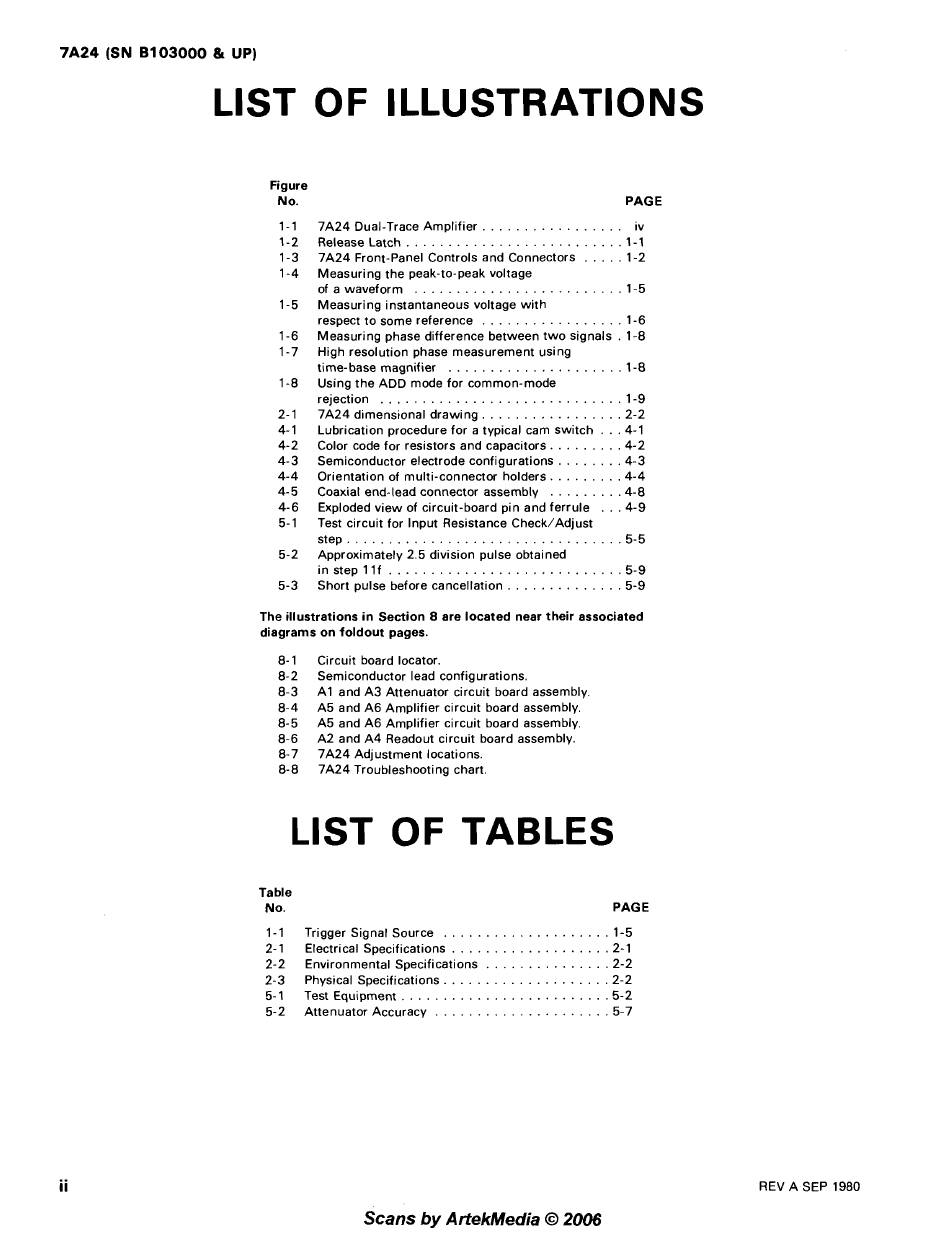

LIST OF ILLUSTRATIONS
Figure
N~
PAGE
1-1 7A24 Dual-Trace Amplifier . . . . . . . . . . . . . . . . . iv
1- 2 Release Latch . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1-3 7A24 Front-Panel Controls and Connectors ..... 1-2
1-4 Measuring the peak-to-peak voltage
of a waveform . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1-5 Measuring instantaneous voltage with
respect to some reference . . . . . . . . . . . . . . . . . 1- 6
1-6 Measuring phase difference between two signals. 1-8
1-7 High resolution phase measurement using
time-base magnifier . . . . . . . . . . . . . . . . . . . . . 1-8
1-8 Using the ADD mode for common-mode
rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
2-1 7 A24 dimensional drawi ng . . . . . . . . . . . . . . . . . 2-2
4-1 Lubrication procedure for a typical cam switch ... 4-1
4-2 Color code for resistors and capacitors . . . . . . . . . 4-2
4-3 Semiconductor electrode configurations . . . . . . . . 4-3
4-4 Orientation of multi-connector holders . . . . . . . . . 4-4
4-5 Coaxial end-lead connector assembly . . . . . . . . . 4-8
4-6 Exploded view of circuit-board pin and ferrule ... 4-9
5-1 Test circuit for Input Resistance Check/Adjust
step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
5-2 Approximately 2.5 division pulse obtained
in step 11f . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
5-3 Short pulse before cancellation . . . . . . . . . . . . . . 5-9
The illustrations in Section 8 are located near their associated
diagrams on foldout pages.
8-1 Circuit board locator.
8-2 Semiconductor lead configurations.
8-3 A 1 and A3 Attenuator circuit board assembly.
8-4 A5 and A6 Amplifier circuit board assembly.
8-5 A5 and A6 Amplifier circuit board assembly.
8-6 A2 and A4 Readout circuit board assembly.
8-7 7A24 Adjustment locations.
8-8 7A24 Troubleshooting chart.
LIST OF TABLES
Table
No. PAGE
1-1 Trigger Signal Source . . . . . . . . . . . . . . . . . . . . 1-5
2-1 Electrical Specifications . . . . . . . . . . . . . . . . . . . 2-1
2-2 Environmental Specifications . . . . . . . . . . . . . . . 2-2
2-3 Physical Specifications . . . . . . . . . . . . . . . . . . . . 2-2
5-1 Test Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5-2 Attenuator Accuracy . . . . . . . . . . . . . . . . . . . . . 5-7
ii
REV A SEP 1980
