Tektronix 7A26 Quick Start Manual

040-0785-01

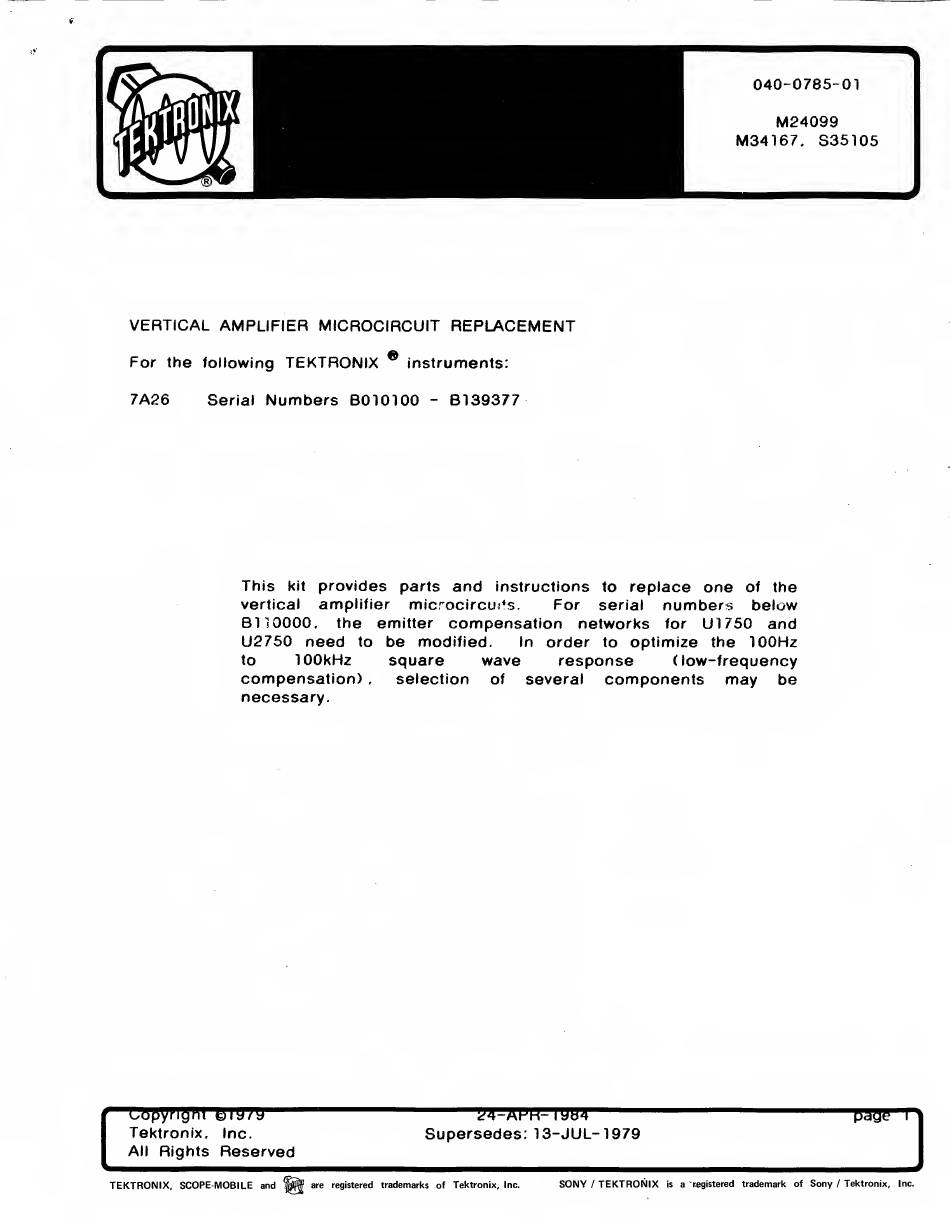

VERTICAL AMPLIFIER MICROCIRCUIT REPLACEMENT
For the following
TEKTRONIX
®
instruments:
7A26
Serial
Numbers
BOlOlOO -
B139377
This
kit
provides
parts
and
instructions
to
replace
one
of
the
vertical
amplifier
microcircu«'s.
For
serial
numbers
below
B1 10000, the
emitter
compensation
networks
for
U1750 and
U2750 need
to
be
modified.
In
order
to
optimize
the
lOOHz
to
lOOkHz square wave
response (low-frequency
compensation)
.
selection
of
several
components
may
be
necessary.
Tektronix,
Inc.
Supersedes: 13-JUL-1979
All
Rights
Reserved
TEKTRONIX, SCOPE-MOBILE
and are registered
trademarks
of Tektronix,
Inc.
SONY
/
TEKTRONIX
is
a registered
trademark
of
Sony
/
Tektronix,
Inc.
