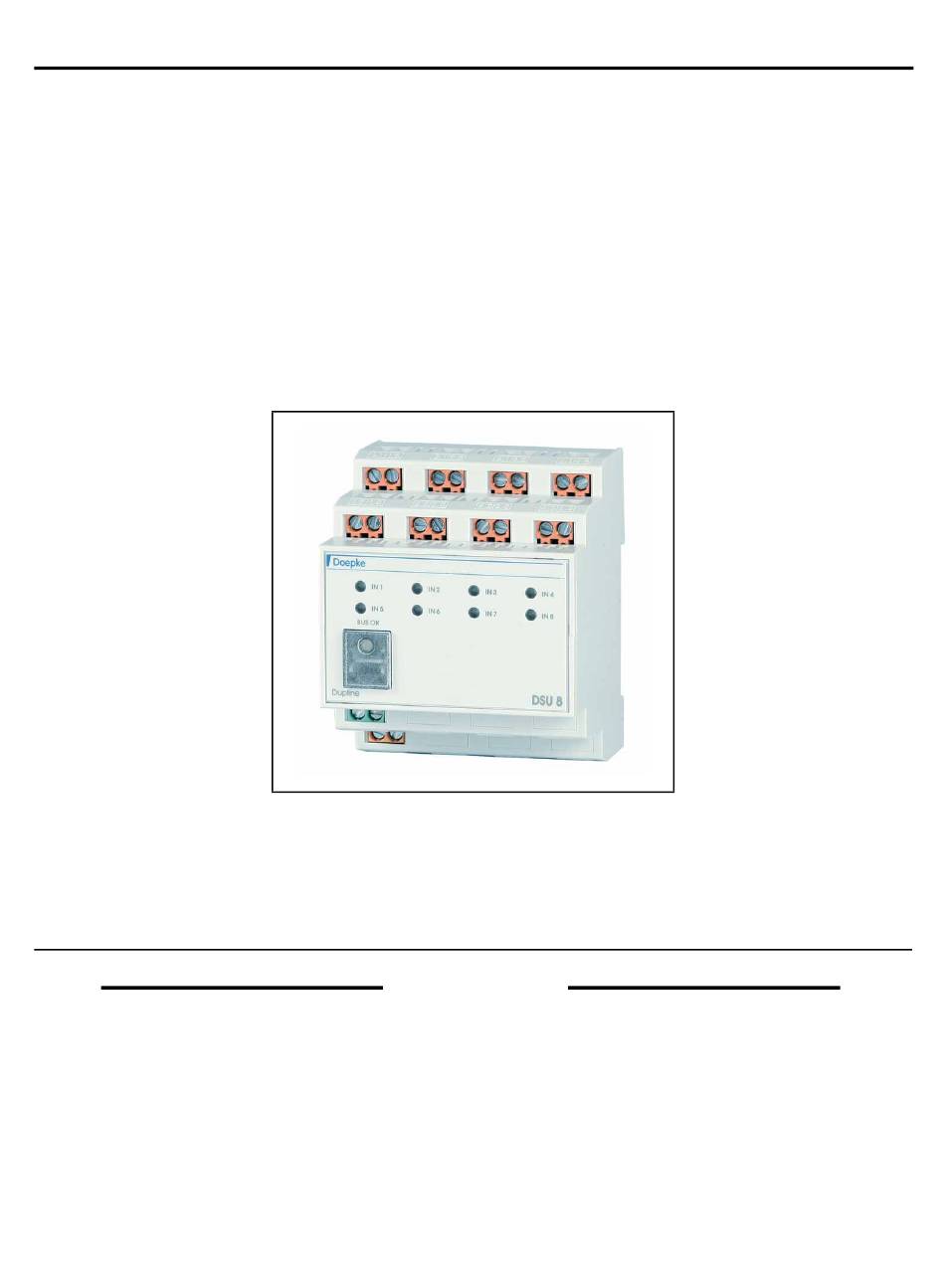

Doepke Dupline 8-fach Binäreingabe-Modul DSU 8 8-way Binary Input Module DSU 8 Bedienungsanleitung Operating Instructions Inhaltsverzeichnis Table of Contents 1. Allgemeines ......2 8. General Information ....5 2. Wichtige Hinweise vorab ..2 9. Important Notes in Advance ... 5 3.
Page 2
Doepke 1Inhaltsverzeichnis Bedienungsanleitung 8-fach Binäreingabe-Modul DSU 8 1. Allgemeines Der Signalumsetzer DSU 8 ist eine Komponente des Dupline Installationssystems und ermöglicht die Umsetzung von bis zu acht Spannungssignalen zur Übertragung auf dem Dupline-Bus. Die Eingänge sind für Gleichspannungen von 20 V bis 300 V oder Wechselspannungen von 20 V bis 250 V bei 50 Hz geeignet;...
Page 3
Doepke DSU 8 kann ohne Versorgungsspannung sowie ohne Dupline-Signal vorgenommen werden. Sie bleibt dauerhaft erhalten, kann aber jederzeit überschrieben werden. 4. Inbetriebnahme Bei der Installation ist das Anschlussschema zu beachten. Alle anzuschließenden Lei- tungen müssen spannungsfrei sein. Folgende Tabelle zeigt die Anschlussbelegung:...
Page 4
Doepke 7. Technische Daten Min. Typ. Max. Dupline Stromaufnahme 60 µA 290 µA Eingangskanäle 8 Eingangssignale (IN 1..IN 8) Ausgangskanäle Keine Eingänge Art galvanisch getrennt, mit Gleichrichtung Gleichspannung Nennspannung 20 V 300 V Stromaufnahme 65 µA 4 mA Leitungslänge 100 m...
Page 5
Doepke 1Table of Contents Operating Instructions DSU 8 8-way Binary Input Module 8. General Information The DSU 8 signal converter is a component of the Dupline installation system and is able to convert up to eight voltage signals for transmission on the Dupline bus.
Page 6
Doepke neither a power supply nor the Dupline signal. Although the coding is permanently re- tained, it may always be overwritten. 11. Putting into Service When installing, the connection diagram has to be observed. All conductors that shall be connected have to be free of voltage. Following table shows the connections:...
Page 7
Doepke 14. Technical Data Min. Typ. Max. Dupline Current input 60 µA 290 µA Input channels 8 input signals (IN 1..IN 8) Output channels None Inputs Type electrically isolated, with rectification DC voltage Voltage 20 V 300 V Current input 65 µA...
Page 8
Doepke 15. Zeichnungen / Drawings Sollten Sie Fragen zu diesem Produkt In case of queries concerning this product oder zum Dupline-System haben, wen- or the Dupline system please contact: den Sie sich bitte an: Doepke Schaltgeräte GmbH & Co. KG Stellmacherstraße 11...
