PART #
DESCRIPTION
1
Meat Tank
2
Set Screw (8mm)
3
Axle Adjusting Knob
4
Axle Adjuster
5
Axle Bushing
6
Tank Cover
7
Axle with Paddles
8
Axle Drive Shaft
9
Key
10
Gear
11
Bearing 61904
12
Drive Shaft

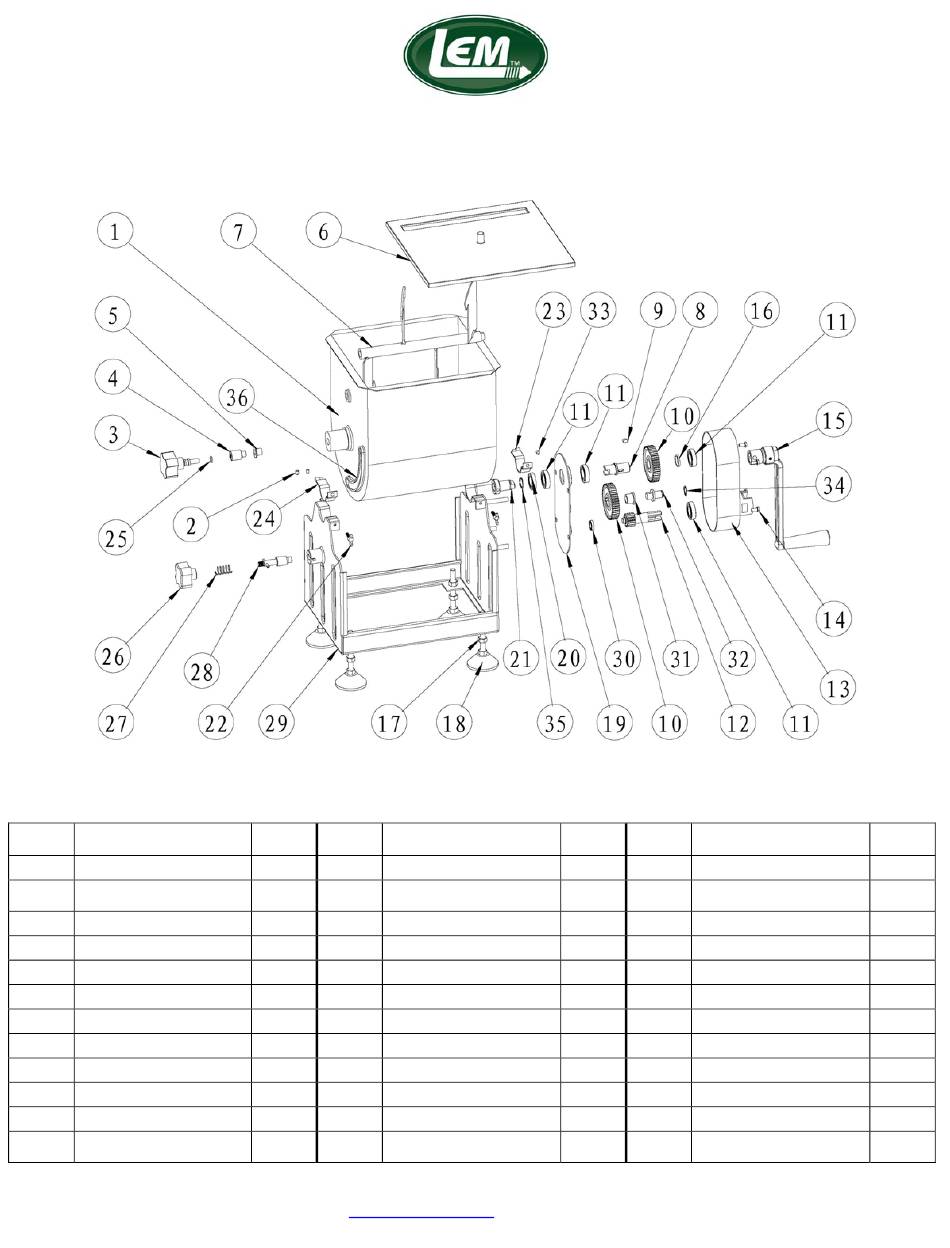

#869- 25lb. & #868- 50lb. TILTING MEAT MIXER
QTY.
PART #
1
13
Gear Box Cover
Phillips Head Screw
2
14
(12mm)
1
15
Handle
1
16
Drive Shaft Bushing
1
17
Mixer Feet Nut
1
18
Rubber Feet
1
19
Gear Box Base
1
20
Grease Seal
1
21
Connect Shaft
2
22
Wing Screw
4
23
Pressing Board 1
1
24
Pressing Board 2
LEM Products, 109 May Drive, Harrison, OH 45030
www.lemproducts.com
DESCRIPTION
QTY.
1
4
1
1
4
4
1
1
1
2
1
1
1-877-536-7763
PART #
DESCRIPTION
25
O Ring
26
Locking Handle
27
Spring
28
Lock Pin
29
Rotating Stand
30
Bearing 61801
31
Middle Shaft Bushing
32
Middle Shaft
33
Set Screw M6 * 8
34
Middle Shaft C-Clip
35
Drive Shaft C-Clip
Lock Pin Tilt Guide
36
(not a removable part)
QTY.
1
1
1
1
1
1
1
1
1
1
1
1
