Vehicle Can-Am Renegade Gen 2 2012-2019
Also fits Maverick 1000R & Renegade Gen 1 2008-2012

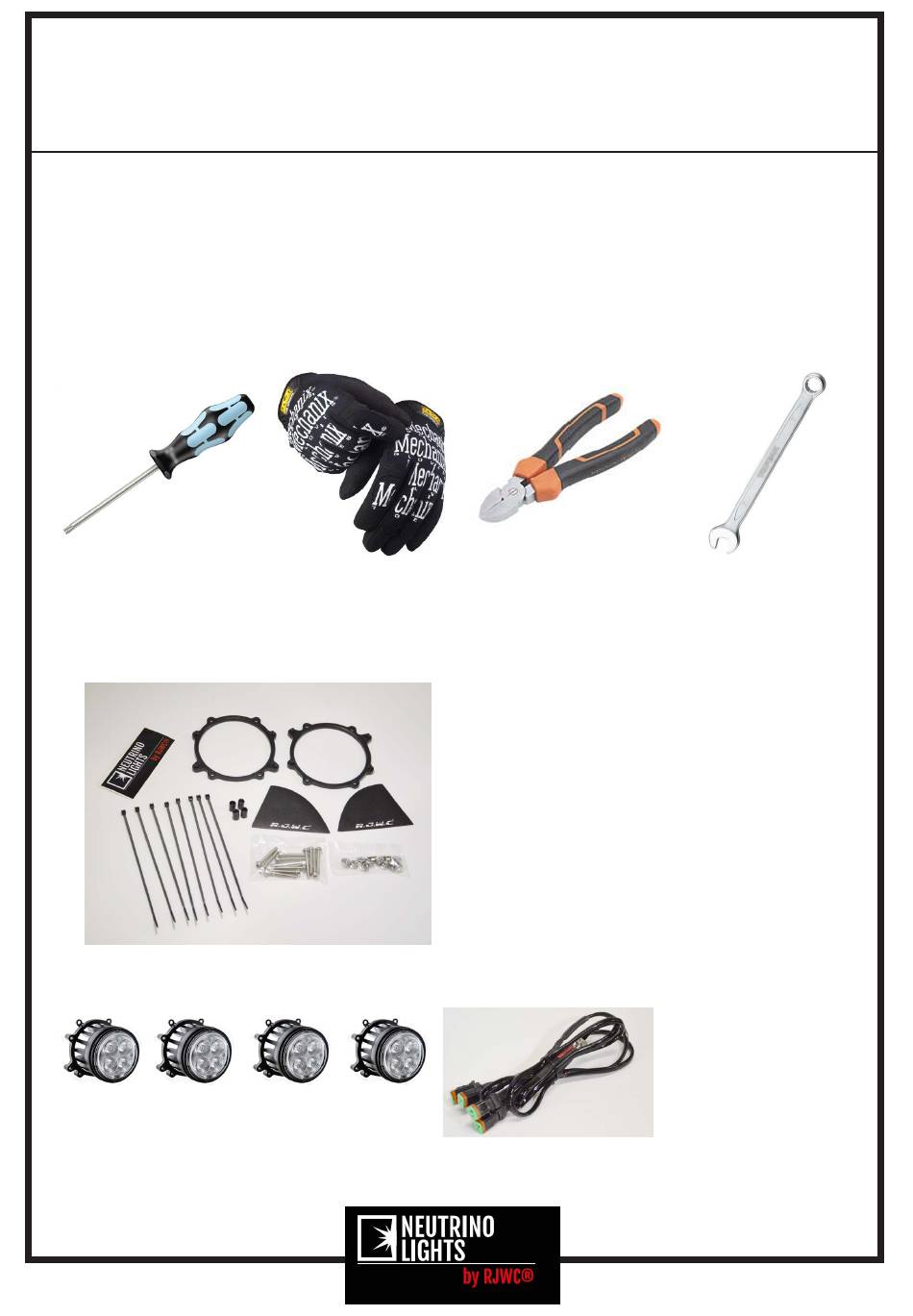

This manual will guide you through the process of installing your
new model specific Neutrino LED Headlights
It is very important that you read this.
Torx screwdriver
size T10 and T20
Installation Manual
Neutrino LED Headlights with Halo
You will need the following tools
Gloves
Pliers
Hardware parts included for
the Renegade Gen 2
2 x Headlight adaptor
4 x Plastic washers
9 x Zip ties
14x Stainless torx bolts
14x Stainless m5 lock nuts
1 x Neutrino sticker
4 x Neutrino LED headlights
1 x Halo harness
2 x Thick RJWC stickers
Page 01
Rev: 2.0
7 mm and 10 mm
wrench
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RJWC Neutrino 1340C
Summary of Contents for RJWC Neutrino 1340C
- Page 1 Renegade Gen 2 2 x Headlight adaptor 4 x Plastic washers 9 x Zip ties 14x Stainless torx bolts 14x Stainless m5 lock nuts 1 x Neutrino sticker 4 x Neutrino LED headlights 1 x Halo harness 2 x Thick RJWC stickers...
- Page 2 (SEEN FROM THE DRIVERS SEAT) Remove the black sticker that is covering this bolt hole we have sent new replacement RJWC stickers with the hard- ware kit so you can throw the OE ones in the trash, Remove the bolt and nut.
- Page 3 Page 03 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 Remove this bolt and nut Remove the 2 bolts holding Headlight frame support the headlight support. These bolts are a bit tricky to get out.
- Page 4 Page 04 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 Remove the low beam from the plastic frame Remove the high beam as well make sure to mark each holder for the lights with ”high beam”...
- Page 5 Page 05 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 Now its time to install the Neutrino light that is going to be installed in the high beam location. Check wich light support frame you marked as high beam and make sure to use that one.
- Page 6 Page 06 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 LOW BEAMS Now its time to install the Neutrino lights in the plastic fra- me/pod! NOTE THIS HEADLIGHT IS GOING TO FIT IN THE LOWBEAM SPOT IN THE OE PLASTIC Install the plastic adapter...
- Page 7 Page 07 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 Tighten the screws by using an T20 Torx screw driver and one 7 mm wrench Re-install the screw that locks the plastic clamp in place.
- Page 8 Page 08 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 Install the Neutrino light like the picture shows, no adapters and no washers is being used on this one.
- Page 9 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 Install the bolts and nuts as the picture shows Install the thick RJWC Stick- er to cover the bolt Install the bolts holding the light frame support Re-install the connectors on the Neutrino lights, make sure you install the correct connector on the light you want to use as High or Low beam.
- Page 10 Page 10 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 Now its time to install the halo harness which is very simple. The cable harness is made to fit both the Renegade and Outlander wich makes it a bit to long for the Renegade.
- Page 11 Page 11 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 IMPORTANT INFO DO NOT USE FORCE TO REMOVE CONNECTORS FROM EACHOTHER BY PULLING THE CABLES USE THE QUICK CONNECTORS SO YOU DONT DAMAGE THE CABLES IMPORTANT if you install these lights on a Maverick 1000 R you need to extend the 12v+ halo cable to install it behind the 12v...
- Page 12 Page 12 Installation Manual Neutrino LED Headlights with Halo Vehicle Can-Am Renegade Gen 2 2012-2019 Also fits Maverick 1000R & Renegade Gen 1 2008-2012 Rev: 2.0 RJ Weld & Custom AB Bullerleden 9 961 67 BODEN, SWEDEN www.rjweldcustom.com...
