ABB Ability Smart Sensor Installation Manual page 4

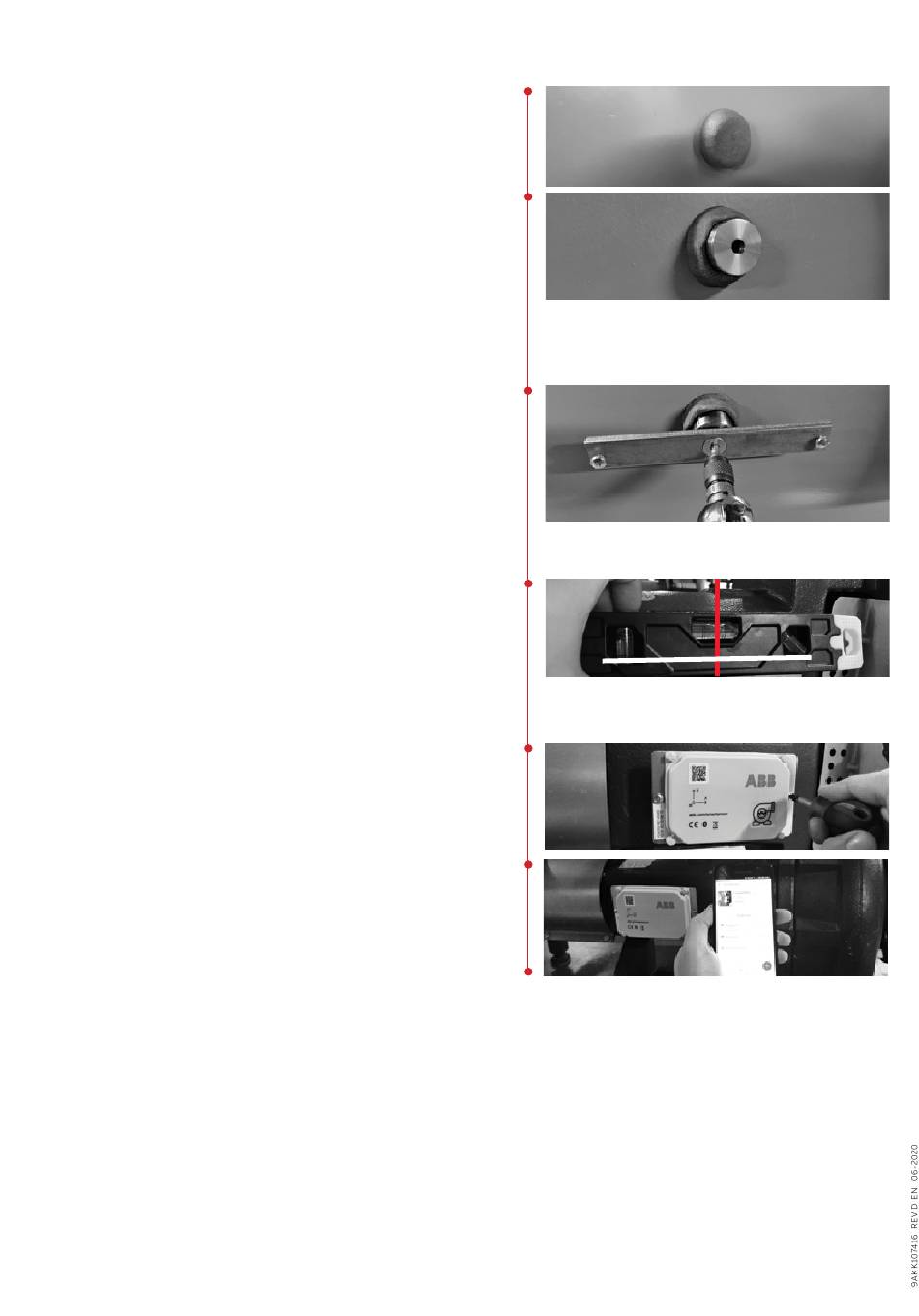

Step 5
Firmly apply putty to the clean housing surface or,
alternatively, wrap the putty around the end of the
receiving mount before attaching to the surface.
The putty should be approx. 1.25 inch (3 cm) wide.
Step 6
Immediately after applying putty, insert receiving
mount into center of putty, pressing firmly. Form any
excess putty around the sides of the mounting piece.
CAUTION: ALLOW SUFFICIENT TIME FOR PUTTY TO
HARDEN BEFORE PROCEEDING. CURING TIME DE-
PENDS ON SURFACE AND AMBIENT TEMPERATURES.
TYPICAL CURING TIME IS 10 MINUTES, BUT THIS CAN
TAKE LONGER IN COLD ENVIRONMENTS.
Step 7
Secure bracket to receiving mount using the hex head
screw. Apply Loctite™ or equivalent threadlocker to the
screw threads, ensuring that the screw head is locked
1 mm above chamfer for the best heat and vibration
transmission.
CAUTION: REVIEW AND FOLLOW ALL MANUFACTURER'S
INSTRUCTIONS AND SAFETY PRECAUTIONS WHEN
USING THREADLOCKER.
Step 8
Use a level to verify the alignment. The axial direction
(white line) must be parallel to the pump shaft. The
tangential axis (red line) should be at a right angle to
the axial line, on a plane tangential to the housing.
The radial direction (black line) points towards the
center line of the shaft. If this is not possible, the
T-axis must be parallel to the rotating shaft.
Step 9
Use two Phillips head screws to securely fasten the
ABB Ability™ Smart Sensor to mounting bracket.
Next step
Digitally connect Smart Sensor using the ABB Ability™
Smart Sensor Platform app. Log on using your ABB
credentials and follow the prompts to connect.
NOTE: After commissioning, the sensor has a two-
month trial period with full functionality. After the
trial period, the usage can be continued by activa-
ting a subscription acquired from a local ABB sales
unit or from ABB Ability Marketplace
with your local ABB partner if the ABB Ability Market-
place
—
For questions, feedback and support, please contact:
Product information
www.abb.com/smartsensor
Support
support.smartsensor@abb.com
Subscriptions
https://eu.marketplace.ability.abb/
is available in your region.
TM
. Please check
TM
—
