  • Page 1 Intelligent Analyzer Quick Start Guide...

  • Page 2: Table Of Contents

    Intelligent Analyzer Quick Start Guide TABLE OF CONTENTS Chapter 1 Introduction ................................... 6 1.1 Introduction ....................................6 1.2 Key Features ....................................6 1.3 Panel Description ..................................6 1.3.1 Front Panel ..................................6 1.3.2 Rear Panel ..................................7 Chapter 2 Installation and Connections ............................9 2.1 Before You Start ..................................9 2.2 Environment ....................................9 2.3 Install SD Card ....................................9 2.4 Install SIM Card ..................................10...
  • Page 3 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 4 Intelligent Analyzer Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Intelligent Analyzer Quick Start Guide Applicable Models DS-MP1803 This manual is applicable to Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
  • Page 6 Intelligent Analyzer Quick Start Guide Safety Instructions  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.  In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.

  • Page 7: Chapter 1 Introduction

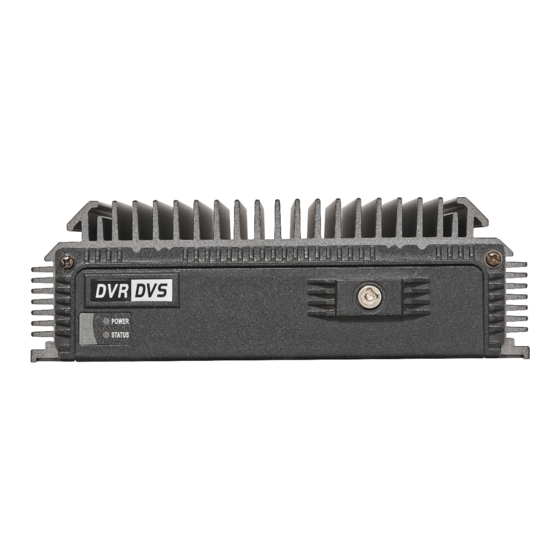

    Chapter 1 Introduction 1.1 Introduction Hikvision DS-MP1803 Intelligent Analyzer, based on deep-learning algorithm, is specially designed for driver behavior supervision and traffic safety protection. The product can detect multiple events such as talking on mobile phone, smoking, fatigue driving, and not looking straight ahead.

  • Page 8: Rear Panel

    Intelligent Analyzer Quick Start Guide Table 1-1 Panel Description Name Description Power Power indicator. Solid green: device is powered on. Status Status indicator.  Solid green: device is on.  Flashing green: Communication between device and IP camera is normal. ...
  • Page 9 Intelligent Analyzer Quick Start Guide Line Audio input/output. IPC 1 and 2 IP camera interface for 2XM62 series mobile camera. Connects mobile video recorder. Network interface 1 × 10M/100M RJ45 Ethernet interface. Power Power supply.

  • Page 10: Chapter 2 Installation And Connections

    Intelligent Analyzer Quick Start Guide Chapter 2 Installation and Connections 2.1 Before You Start Take out the device from the package. Check the device and accessories status. Please contact us if something is missing or damaged. 2.2 Environment To ensure the device can ventilate well, find a position with enough space. Recommended installation space is shown in Figure 2-1.

  • Page 11: Install Sim Card

    Intelligent Analyzer Quick Start Guide Figure 2-3 Unfasten Screws Step 3 Close the cover and turn the key clockwise to lock it. 2.4 Install SIM Card Purpose: Install the SIM card to realize the wireless communication function. The chapter is only device with 3G/4G wireless communication module. Before You Start Turn off the device.
  • Page 12 Intelligent Analyzer Quick Start Guide SIM Card Tray Yellow Button SIM Card Slot Figure 2-5 Pull out SIM Card Tray Step 4 Place the SIM card on SIM card tray. Step 5 Insert the SIM card tray back to SIM card slot. Figure 2-6 Install SIM Card Step 6 Install the 3G/4G module back to the device and tighten the set screw.

  • Page 13: Chapter 3 Device Wiring

    Intelligent Analyzer Quick Start Guide Chapter 3 Device Wiring 3.1 Power Cord Wiring In order to ensure the safety of your automobile and device, a fuse is required for wiring of automobile power and device power. Do not connect the power cord to the device before all the cables are connected. 3.1.1 Shutdown Delay Purpose: The device starts up when your automobile ignites and shuts down after automobile is off.

  • Page 14: Scheduled Shutdown

    Intelligent Analyzer Quick Start Guide Device Automobile Power System DC IN Wiring of Device Point of Connection Automobile Power Switch Positive Pole Negative Pole Automobile Ignition Switch Automobile Battery Figure 3-2 Shutdown Delay  Please contact the automobile manufacturer for the connection information of starting switch.

  • Page 15: Power On Device

    Intelligent Analyzer Quick Start Guide Device Automobile Power System DC IN Wiring of Device Point of Connection Automobile Power Switch Positive Pole Negative Pole Automobile Battery Figure 3-4 Scheduled Shutdown 3.2 Power on Device Step 1 Lock front panel. Step 2 Connect power supply to device after all the above installations are finished.

  • Page 16: Chapter 4 Activation

    Intelligent Analyzer Quick Start Guide Chapter 4 Activation For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. 4.1 Default Settings Device default IP address and user name are as follows: ...
  • Page 17 Intelligent Analyzer Quick Start Guide Figure 4-1 Activation Step 4 Click OK.

  • Page 18: Chapter 5 Basic Operation

    Intelligent Analyzer Quick Start Guide Chapter 5 Basic Operation 5.1 Login Purpose: Get access to the device via web browser. Step 1 Open web browser, input the IP address of the device and then press Enter. Step 2 Enter the user name and password in the login interface and click Login. Figure 5-1 Login Step 3 Install the plug-in before viewing the live video and managing the camera.

  • Page 19: Mobile Surveillance Platform Connection

    Intelligent Analyzer Quick Start Guide Figure 5-2 3G/4G Dialing Step 4 Click Save and reboot the device to activate the new settings. Step 5 Optionally, go to Wireless Dial-up Status tab to view dialing status. 5.3 Mobile Surveillance Platform Connection Purpose: The device can be remotely accessed via mobile surveillance platform.

  • Page 20: Driving Behavior Configuration

    Intelligent Analyzer Quick Start Guide Figure 5-3 Platform Settings Step 2 Check Enable. Step 3 Select Platform Access Mode as Ehome. Step 4 Configure the following parameters.  Server Address Type: IP Address and Domain Name are selectable.  Server Address: Enter the static IP address of iVMS server. ...

  • Page 21: Configure People Counting

    Intelligent Analyzer Quick Start Guide Step 2 Select Camera No. Step 3 Check behaviors to analyze and configure Alarm Time and Confidence Interval.  Alarm Time: Device alarms when the corresponding driving behavior lasts for the set time.  Confidence Interval: Available for on-the-phone detection and smoking detection. You are recommended to use the default value.

  • Page 22: Appendix Afaq

    Intelligent Analyzer Quick Start Guide Appendix A A1 Why does my device fail to start up after connecting the power?  Check power supply specification.  Check power cord wiring. For details, refer to 3.1 Power Cord Wiring. A2 Why does my device dialing fail? ...
