Laser Performance FUNBOAT Rigging Manual page 4

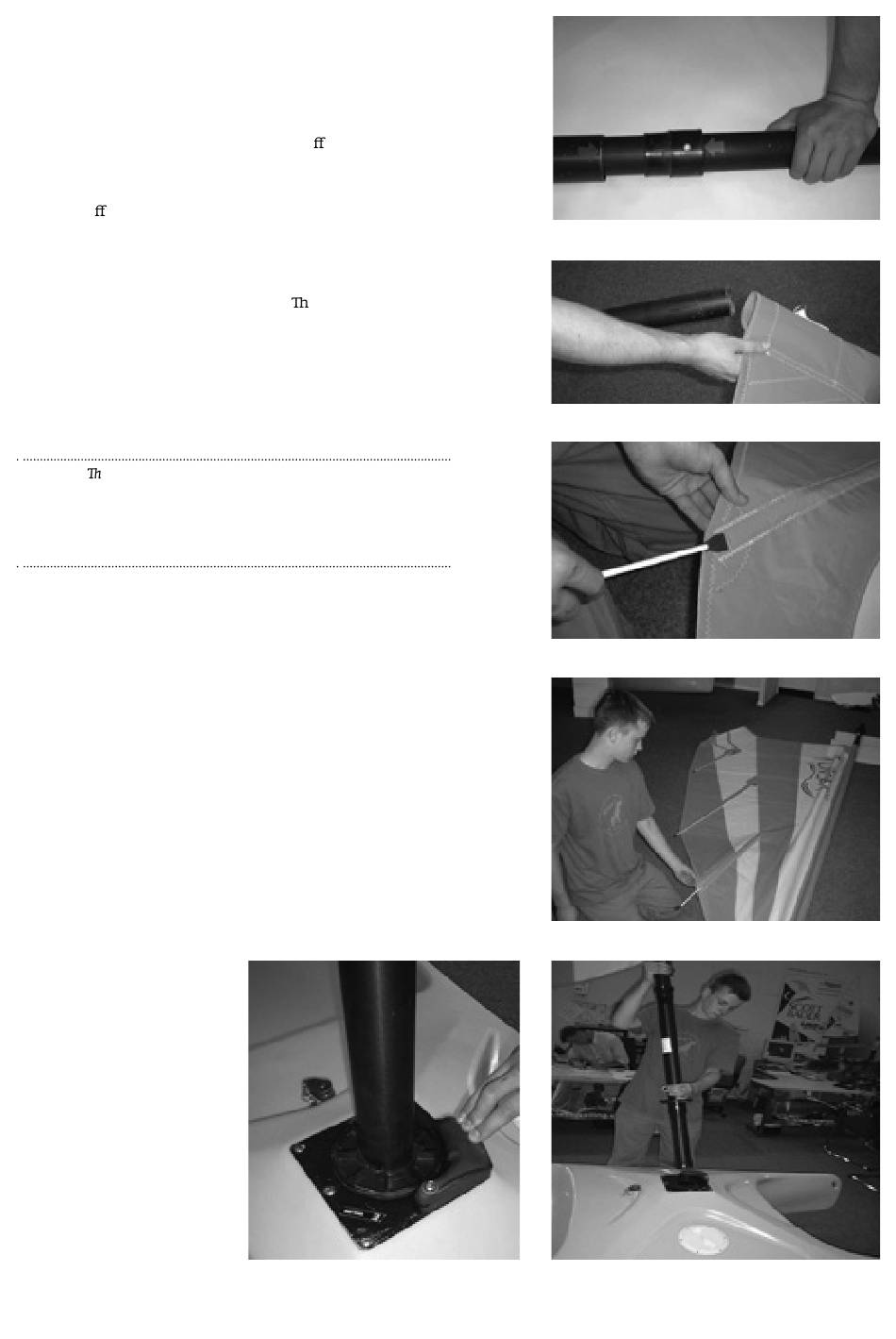

4. Assembly
1. Insert the upper mast into the lower mast, ensuring
that the two arrows are aligned. (figure 1)
2. Insert the assembled mast into the lu tube of the
mainsail and pull the sail over the mast. Ensure that the
mast is fully entered into and firmly pushed completely
into the lu tube. (figure 2)
3. Insert the battens into the batten pockets. Ensure
that the inboard batten tip is located into the elastic at
the bottom end of the batten pocket.
of the batten is tucked under the flap on the outside edge
of the sail. (figure 3) (figure 4)
5. Insert the mast into the mast step. Ensure that the
mast gate claw springs over the mast step collar on the
lower mast. (figure 5a) (figure 5b)
Warning: e mast is metal and is an electrical conductor.
Contact with overhead electric wires could be fatal,
please exercise extreme caution when raising the mast,
launching and sailing.
e outboard end
figure 5a
figure 1
figure 2
figure 3
figure 4
figure 5b
