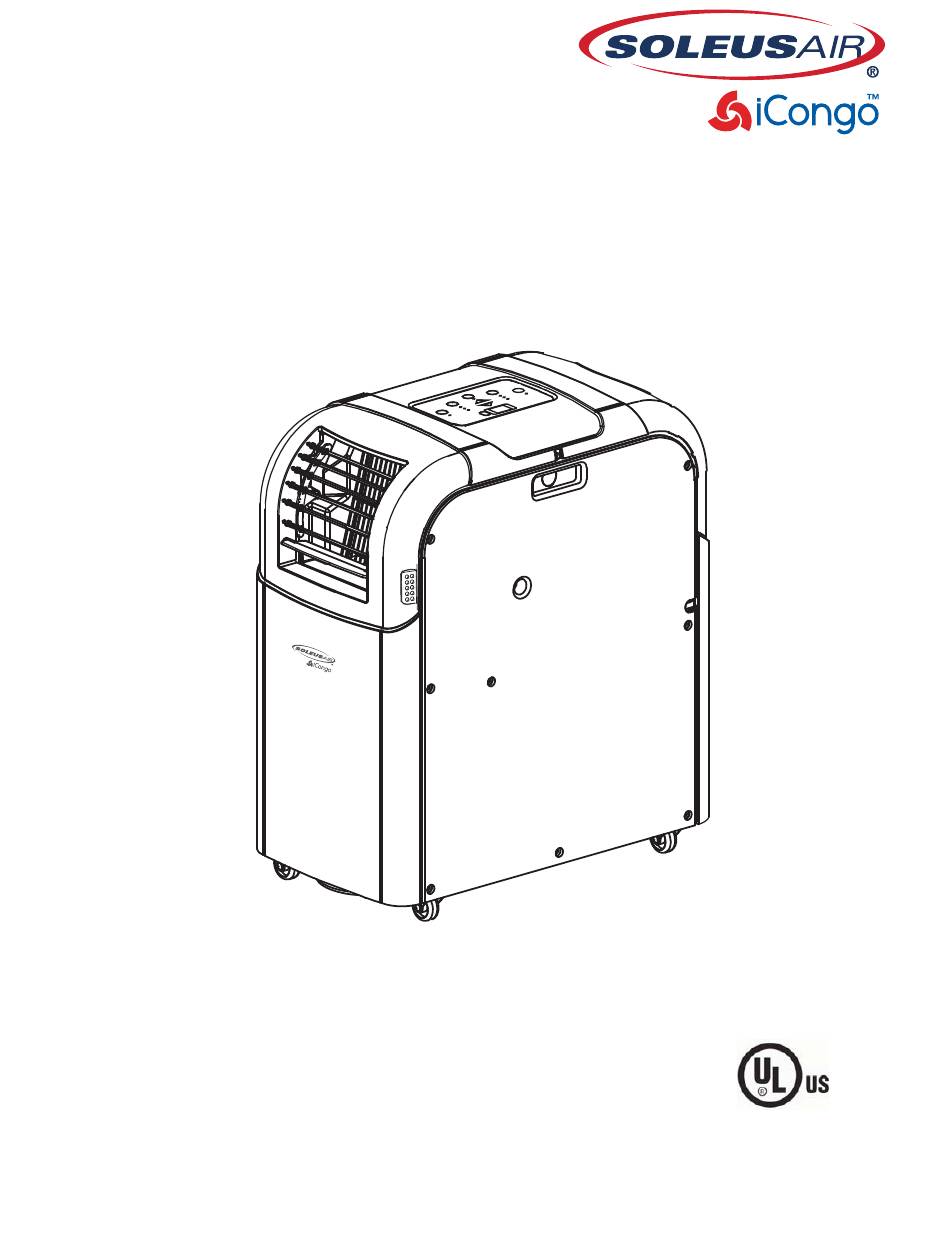

- Page 1 8,000/10,000/12,000 BTU Portable Air Conditioner Operating Instructions Model No.: PSQ-08-01 PSQ-10-01 PSQ-12-01 V16...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner. -
Page 3: Package Contents
PACKAGE CONTENTS Portable Air Conditioner (1) Exhaust Hose (1) Window Kit Adapter (1) Rubber Plug (2) Screw (1) Remote Control (1) AAA Batteries (2) Window Kit - Sliding Panels (2) Owner’s Manual (1) SPECIFICATIONS The cooling capacity is measured at an ambient temperature of DB 95˚F, WB 83 ˚F. Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cool- ing mode. -
Page 4: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi- ble cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value. -
Page 5: Product Diagram
PRODUCT DIAGRAM 1. Adjustable Louver 2. Cold Air Outlet 3. Air Outlet Cover 4. Air Exhaust Cover 5. Hot Air Exhaust Opening 6. Cold Air Filter 7. Continuous Drain Port 8. Cold Air Intake 9. Hot Air Filter 10. Hot Air Intake 11. -
Page 6: Parts & Assembly
PARTS & ASSEMBLY PARTS Exhaust Hose Window Kit Adapter WINDOW KIT Screw Panel A Panel B ASSEMBLY & INSTALLATION INSTALLATION When the unit is operating as an air conditioner or dehumidifier, the unit draws in indoor air and exhausts hot air out of the room to complete the air exchange. -
Page 7: Window Kit Installation
Exhaust Hose. DO NOT use an ex- tension cord with your portable air conditioner. Note: The unit above may differ from the unit described in the manual, the above directions and images show general directions for Soleus Air single hose Portable Air Conditioner. - Page 8 WINDOW KIT ASSEMBLY GUIDE Panel with Exhaust Opening Screw Panel A Panel B 1 Parts -Panel A: with exhaust hose opening -Panel B -Screw to lock window kit in place 2. Assembly: Slide Panel B into Panel A and size to window width. Windows sizes vary.
-
Page 9: Control Panel Buttons
CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL Increase Signal Receiver Temperature/Timer Button Fan Speed Air Conditioner Indicators Mode Indicator Bucket Full Indicator BUCKET FULL COOL HIGH Timer TEMPERATURE TIMER Button MEDIUM Mode Indicator SPEED MODE Dehumidifier Mode Indicator POWER Decrease Fan Speed Mode Selection... -
Page 10: Operating The Unit
OPERATING THE UNIT Air Conditioner Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button. 4) Press the Mode button until the air conditioner mode indicator lights up on the control panel dis- play. -
Page 11: Remote Control
OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL $872 PRGH DQG $872 6:,1* DUH IRU VHOHFWHG PRGHOV RQO\ SET TEMPERATURE MODE DISPLAY LOCK/UNLOCK INDICATOR FAN SPEED INDICATOR TIME TIMER ON/OFF INDICATOR TIMER/TEMP DECREASE TIMER TIME TIMER/TEMP INCREASE POWER BUTTON MODE BUTTON FAN SPEED BUTTON... - Page 12 REMOTE CONTROL OPERATING INSTRUCTIONS 1) Power On and Off - If the unit is already on, press the ON/OFF button on the remote while pointing the remote away from the unit. This will turn the remote on. If the unit is off, now press the ON/OFF button once to turn the unit on.
- Page 13 CONTINUOUS DRAIN OPTION This portable air conditioner is designed to evaporate moisture drawn from the air through the vented ex- haust hose. During periods where excess moisture is in the air, a garden hose can be installed to drain water continuously from the unit, eliminating interruptions in operation.
-
Page 14: Internal Water Tank
EXCESS MOISTURE MAINTENANCE BUCKET FULL INDICATOR When the Internal Water Tank is full, the Bucket Full light will illuminate and the unit will automatically shut down. The air conditioner will resume normal operation once Internal Water Tank is emptied. INTERNAL WATER TANK When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough. -
Page 15: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with dust, the airflow volume may be reduced. It is recommended to clean the filter once every two weeks or as needed. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION • Plug unit in. • Unit is not plugged in. • Check electric breaker box for a Air conditioner does not • No electric current to outlet. trip. power on • Wait 30 minutes for safety de- •... -
Page 17: Self-Diagnosis
SELF-DIAGNOSIS SYSTEM MALFUNCTION CODES SELF-DIAGNOSIS The unit has a self diagnosis system to identify a number of malfunctions. Error messages are displayed on the control panel display. Error Codes Possible Causes Error Messages Temperature Sensor Failure Self Diagnosis Internal Pipe Sensor Failure Self Diagnosis;... -
Page 18: Warranty
)LYH Year 6HDOHG 6\VWHP Limited Warranty Soleus Home Comfort warrants the accompanying Soleus Air Portable Air Conditioner to be free of defects in ma- terial and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
