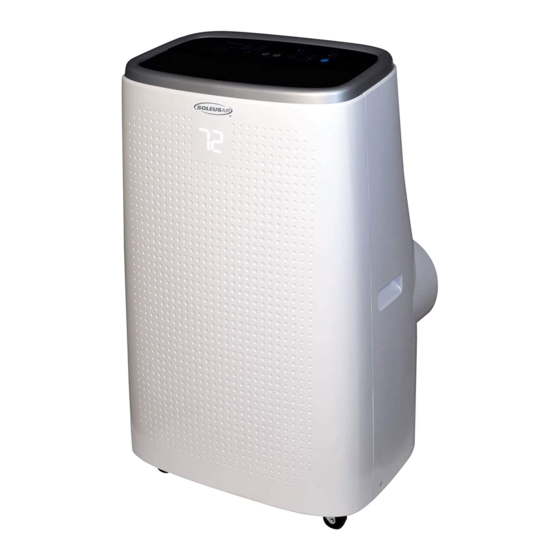

Soleus Air PSH-09-01 Operating Instructions Manual

Hide thumbs Also See for PSH-09-01:

Operating instructions manual (19 pages)

page of 19

/ 19
Bookmarks

Quick Links

Download this manual

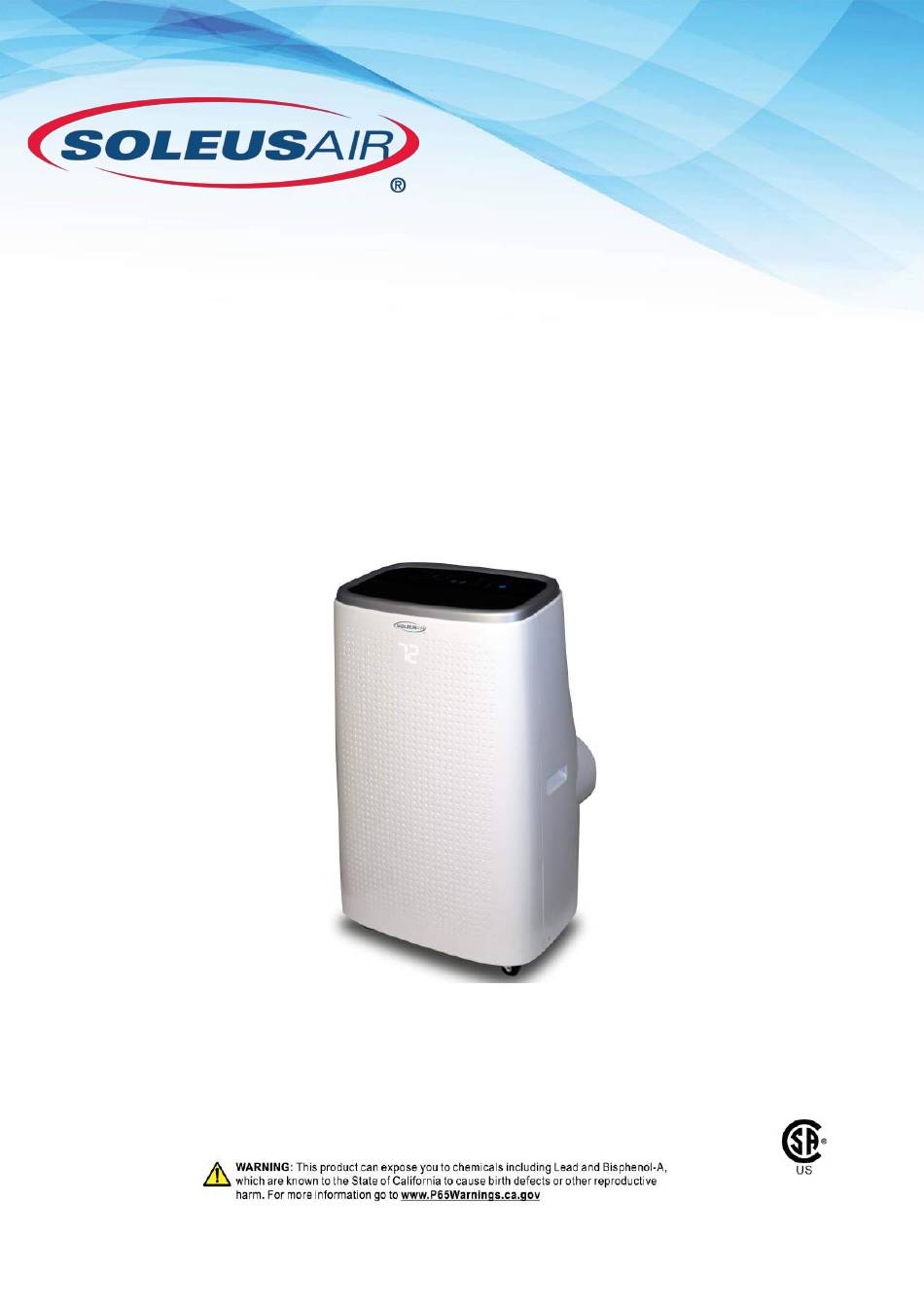

Portable Air Conditioner

8,050 BTU

9,300 BTU

•

Seasonally Adjusted Cooling Capacity (SACC)

Meets Department of Energy & California Energy Standards

OPERATING INSTRUCTIONS

PSH-08-01

PSH-09-01

600538

V210702

Air conditioner must be upright for 24 hours prior to operating.

This ensures that the compressor will function as intended.

Need help?

Do you have a question about the PSH-09-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soleus Air PSH-09-01

Page 1 • Seasonally Adjusted Cooling Capacity (SACC) Meets Department of Energy & California Energy Standards OPERATING INSTRUCTIONS PSH-08-01 PSH-09-01 600538 V210702 Air conditioner must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.
Page 2 PURCHASE INFORMATION Thank you for choosing a Soleus Air Portable Air Conditioner. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner.
Page 3 Remote Control (1) Window Kit Panel (3) AAA Battery (2) Window Kit Adapter (1) Owner’s Manual (1) SPECIFICATIONS Model Number PSH-08-01 PSH-09-01 8,050 BTU/Hr 9,300 BTU/Hr Cooling Capacity (SACC) Meets DOE & California Meets DOE & California Energy Standards Energy Standards...
Page 4 POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flex- ible cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined val- ue.
Page 5 PRODUCT DIAGRAM MODEL# PSH-08-01/PSH-09-01 1. Control Panel 2. Manual Control Louver & Air Outlet 3. Carry Handle 4. Casters 5. Air Filters 6. Continuous Drain Port 7. Air Discharge Opening 8. Air Intake Grilles 9. Condensation Drain Hole 10. Exhaust Hose 11.
Page 6 PARTS & ASSEMBLY WINDOW VENTING KIT ASSEMBLY & INSTALLATION When the unit is operating in air conditioning mode, the unit draws in indoor air and exhausts hot air out of the room to complete the air exchange. The Window Kit must be installed when operating the unit in air conditioning, dehu- midification.
Page 7 WINDOW KIT ASSEMBLY 3. Slide panel B inside panel A and over the Wing Nut Base. 1. Unscrew the Wing Nut from the base. Insert the Wing Nut base into the small hole found on panel A 4. Panel A and B should now be connected. 2.
Page 8 WINDOW KIT INSTALLATION PORTABLE AIR CONDITIONER The window venting kit must be installed in order for the unit to work correctly. The window venting kit has been de- signed to fit into most vertical and horizontal window openings and sliding glass doors up to 5 feet.. *The window kit included with your purchase may vary slightly from what is shown below.
Page 9 CONTROL PANEL Quiet Mode Bucket Full Turbo Cool Air Conditioner Indicator Auto Mode Dehumidifier Mode Sleep Mode Indicator Indicator Mode Indicator Indicator Indicator Indicator Timer Indicator Power Indicator Mirage Display Fan Speed Fan Mode Indicator Indicators Indicator OPERATING INSTRUCTIONS FOR CONTROL PANEL BUTTONS 1) Power On and Off - Press the POWER button once to manually turn the unit on.
Page 10 REMOTE CONTROL LCD DISPLAY POWER BUTTON MIRAGE DISPLAY BUTTON MODE BUTTON TIMER/TEMP DECREASE FAN SPEED TURBO COOL BUTTON MY TEMP BUTTON CHILD LOCK BUTTON SLEEP BUTTON TIMER BUTTON °C/°F SWITCH BUTTON...
Page 11 REMOTE CONTROL 1) Power On and Off - When the unit is plugged in, press the POWER button to turn on the unit. Press the POWER button once more to turn the unit off. When in Air Conditioner mode, Auto mode, and Sleep mode, the selected temperature will appear on the remote control LCD display.
Page 12 UNIT OPERATION Air Conditioner Mode 1) Install the exhaust hose and window kit properly (see pages 7&8). 2) Plug the power cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button. 4) Press the MODE button until the air conditioner mode indicator lights up on the control panel display. 5) Press the + or - until the desired room temperature appears on the control panel display.
Page 13 UNIT OPERATION Auto Mode 1) Install the exhaust hose and window kit properly (see pages 7&8). 2) Plug the Power cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button. 4) Press the MODE button until the Auto mode indicator lights up on the control panel display. Auto Mode will operate the unit in Air Conditioning Mode when the temperature is above 72 degrees, Fan Mode when the temperature is below 72 degrees.
Page 14 MAINTENANCE BUCKET FULL INDICATOR When the Internal Water Tank is full, the Bucket Full light will illuminate and the unit will automatically shut down. The air conditioner will resume normal operation once Internal Water Tank is emptied. INTERNAL WATER TANK When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough.
Page 15 MAINTENANCE HOW TO DRAIN THE INTERNAL WATER TANK *You will need a small pan, approximately 1” high to catch the water coming out of the water tank. Once the water tank is empty, the unit will resume operation within a few minutes. 1.
Page 16 4) If the filter is torn or unusable, order a new filter by calling the customer service number on the warranty page of this manual. PSH-08-01 PSH-09-01 Clean the Unit Housing 1) Keep the unit from being exposed directly to the sun to prevent color fading.
Page 17 TROUBLESHOOTING PROBLEM CAUSE SOLUTION • Plug unit in • Unit is not plugged in Air conditioner does not • Check electric breaker box for a trip • No electric current to outlet power on • Wait 30 minutes for safety device to •...
Page 18 SELF-DIAGNOSIS CODES SELF-DIAGNOSIS The unit has a self diagnosis system to identify a number of malfunctions. Error codes are displayed on the appliance display. ERROR CODE DESCRIPTION SOLUTION Turn the unit off. Unplug the unit from the wall and plug it back in. If this codes Indoor Temperature Sensor Malfunction appears again, please call customer service at (833) 669-9998...
Page 19 LIMITED WARRANTY One Year Limited Warranty JHS INC. warrants the accompanying Portable Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
