TrueConnect™ tool changing mechanism with our swivel technology, combining the best out of two technologies. Robot System Products’ product lines are available for all major robot brands and come with complete documentation. 3D-models for simulation are available for download at: www.rsp.eu.com. M0605-1 ver 2.5...
1.1 Safety 1.1.1 General The integrator installing the tool changer into the system must follow the safety demands stated in standards and provisions applicable in the country where the tool changer system is to be installed. The products are all prepared for CE-certification. The user of the Robot System Products tool changer is responsible that law and directives applicable in respective countries, with regards to safety, are followed.
The combination of RSP’s hose packages with the swivel with integrated tool changer does in addition significantly reduce the design and installation times for the system integrator.
’E’. The swivel with tool changer STC350-6 and STC350-6E cannot transport fluids. The spring loaded signal pins of STC350-6E are placed and protected along a circle close to the centre of the tool changer. The signal pins are not in connection until at the very end of the docking cycle when the tool attachment is already properly aligned.
2.1.1 Coordinate System Definition A swivel with tool changer adds load to the robot. If the arm and tool loads are not stated correctly during programming the behaviour of the robot and the wear of the equipment will be affected. Information about weight and centre of gravity can, in accordance with the co-ordinate system stated below, be found in the technical specification tables of the swivel with tool changers.

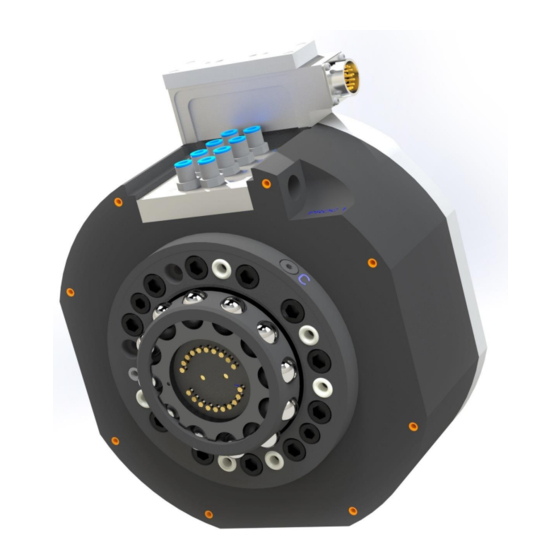

2.1.2 Swivel with tool changer STC350-6. Article no: P0605 Swivel with tool changer STC350-6 transfers 6 pneumatic channels to the tool attachment. To be used together with swivel with tool changer P0606 and P0602. Technical data Working temperature +10°C - +60°C...
2.1.3 Tool attachment, TA350-8 Round. Article no: P0606 Tool attachment TA350-8 transfers 8 pneumatic channels to the tool. To be used together with tool changer P0605. Technical data +10°C−+60°C Working temperature Bolt pattern ISO9409-1-160-11-M12 Weight 5.2 kg Maximum tool load Fz (static) ±3 500 N (M12-screws)
2.1.4 Tool attachment, TA350-8 square. Article no: P0602 Tool attachment TA350-8 transfers 8 pneumatic channels to the tool. To be used together with tool changer P0605. Technical data +10°C−+60°C Working temperature Bolt pattern ISO9409-1-160-11-M12 Weight 5.7 kg Maximum tool load Fz (static) ±3 500 N (M12-screws)
2.1.5 Swivel with tool changer STC350-6E. Article no: P0607 Swivel with tool changer STC350-6E transfers 6 pneumatic channels and 12 electrical signals to the tool attachment. To be used together with tool attachments P0608 and P0604. M0605-1 ver 2.5...
Page 15
Technical data Working temperature +10°C - +60°C Bolt pattern ISO 9409-1-160-11-M12 Maximum tool load Fz (static) ± 3500 N Mx/My (dynamic) ± 3500 Nm Mz (dynamic) ± 3500 Nm Weight and centre of gravity 23.0 kg P0607 Weight 0.1 / 2.5 / 92.7 mm Mass centre X / Y / Z 28.5 kg P0607 and P0608...
2.1.6 Swivel with tool changer STC350-6E Sealed. Article no: P0695A Swivel with tool changer STC350-6E transfers 6 pneumatic channels and 12 electrical signals to the tool attachment. To be used together with tool attachments P0608 and P0604. M0605-1 ver 2.5...
Page 17
Technical data Working temperature +10°C - +60°C Bolt pattern ISO 9409-1-160-11-M12 Maximum tool load Fz (static) ± 3500 N Mx/My (dynamic) ± 3500 Nm Mz (dynamic) ± 3500 Nm Weight and centre of gravity 24.6 kg P0695A Weight 0.1 / 2.4 / 104.0 mm Mass centre X / Y / Z 29.8 kg P0695 and P0608...
2.1.7 Tool attachment round, TA350-8E. Article no: P0608 Tool attachment TA350-8E round transfers 8 pneumatic channels and 18 electrical signals to the tool. To be used together with tool changers P0607 and P0695A. Technical data +10°C−+60°C Working temperature Bolt pattern ISO9409-1-160-11-M12 Weight 5.5 kg...
2.1.8 Tool attachment square, TA350-8E. Article no: P0604 Tool attachment TA350-8E square transfers 8 pneumatic channels and 18 electrical signals to the tool. To be used together with tool changers P0607 and P0695A. Technical data +10°C−+60°C Working temperature Bolt pattern ISO9409-1-160-11-M12 Weight 6.1 kg...
The flange of the swivel with tool changer has fastening holes in accordance with ISO 9409-1 according to the figure below. Dependent on robot model adaptation plates, for other bolt circles, between the tool changer and the turning disc on the robot may be needed. Adaptation plates are available from RSP. M0605-1 ver 2.5...
2.2.3 Tool stand kit. Article no: P0639 This tool stand kit, mounted on a stand, gives in combination with square tool attachments P0602 or P0604 a robust tool stand for easy tool changing. Technical data Weight 2.6 kg Maximum load 350 kg 2.2.4 Limitation of Robot movements There can be some limitations on the movement of axis 5 for some robot models.
3.3 Installation of swivel with tool changer on robot Action Note Safety Read the safety section (1.1). Service position Place the robot in service position. Power off Switch the power off and lock the circuit breaker. NOTE! Read the safety chapter for the robot.
Page 28
Connect air Connect the air hoses according to markings (see section 2.1.9). Connect signal contact 23P Souriau. Connect signal cable (STC350-6E only) Unlock the circuit breaker and switch Power on the power on. M0605-1 ver 2.5...
3.4 Installation of tool attachment on tool Action Note Safety Read the safety section (1.1). Mount guide pins Press the guide pin into the corresponding holes on the tool. Fit tool attachment Lift and fit the tool attachment, using the guide pin, into its appropriate guide hole.
3.5 Manual unlocking of swivel with tool changer Action Note Safety Read the safety section (1.1). Park the tool Park the tool on a tool stand or table. NOTE! Make sure that the tool attachment and tool are fully supported by a tool stand or table.
3.6 Hints 3.5.1 Programming The following will ensure a correct docking position. Action Attach a spare tool attachment to the swivel with tool changer. Position a spare tool attachment above the tool attachment that is mounted on the tool. The right position is found when the tool attachments are parallel, centered and engraved arrows are on the same line.
4 MAINTENANCE AND SERVICE 4.1 Maintenance chart The swivel with tool changers and the tool attachments must be maintained regularly to ensure proper function. The specified intervals are approximate and valid under normal conditions. Under extreme conditions, such as dirty environments or extreme robot movements, the intervals should be shortened.
4.1.2 Recommended tools for maintenance Tools Applications Complete set of Allen keys For dismounting and mounting. Pair of pliers For dismounting the signal pins. Flat-head screwdriver For removing the air sealings. Torque wrench For all socket head cap screws 4.1.3 Wear parts Wear parts should be replaced before considerable damage occurs.
Note Air connections Not damaged or dirty Air sealings No wear, not damaged or dirty Electrical connection (STC350-6E only) Not damaged or dirty Signal pins (STC350-6E only) No wear, not damaged or dirty Cables (STC350-6E only) No wear, not damaged...
(Molykote BR2Plus) on the locking balls. NOTE! It is important that this is done or there might else be a risk that the tool attachment jams. Clean signal pins (STC350-6E only) Clean only the contact surfaces! NOTE! Avoid cleaning solvent in the spring housing.
4.3.2 Cleaning of tool attachment Action Note Clean grooves Wipe the grooves for the locking balls with a cloth. Clean contact surfaces (TA350-8E only) Clean the signal contact surfaces with a cloth. Clean contact surfaces of air sealings Wipe the contact surfaces of the air sealings with a cloth.
Pneumatic air off NOTE! The pressure in the pneumatic system must be released before dismounting begins. Release contact (STC350-6E only) Release signal contact Souriau 23P. NOTE! Handle the contact with care, as it is sensitive to mechanical damage. Make sure that no dirt enters the contacts.
Page 38
Remove screws Remove the screws holding the swivel with tool changer to the robot flange. WARNING! The swivel with tool changer is heavy and may cause damage if dropped. NOTE! Be careful not to damage the signal pins at the tool side of the swivel with tool changer.
4.5 Replacement of wear parts 4.5.1 Replacement of air sealings Action Note Remove air sealings Remove the air sealings with a screw driver. NOTE! There are totally 6 air sealings. Clean sealing holes Wipe clean the sealing holes. Mount new air sealings Tap in the air sealings with a plastic mallet.
We recommend a complete service on tool changers to be carried out every 30 months. This will ensure proper function and increase the lifespan of the tool changer considerably. We further recommend that the maintenance shall be carried out by qualified RSP personnel. Please contact us for a quotation.
5 SPARE PARTS 5.1 Part list for swivel with tool changer, P0605, P0607 and P0695A M0605-1 ver 2.5...
Page 42
X-ring I0111 Spring I0204 O-ring I0031 Air coupling I0196 Souriau connector (STC350-6E only) I0206 Sealing (P0605 and P0607) I0213 Sealing (P0695A) I1183 The signal and power pins, water/air couplings and O-rings are also considered as wear parts, see section 4.1.3.
5.2 Part list for tool attachment P0606 amd P0608 Item Description Part number Connector Souriau UT001619SHT Connection plate P0166-001B O-ring I0133 Screw MC6S 5x20 M0605-1 ver 2.5...
5.3 Part list for tool attachment P0602 and P0604 Item Description Part number Locking screw MC6S 5x20 Connection plate P0166-023B Screw MF6S 4x30 O-ring I0031 M0605-1 ver 2.5...
6 DISPOSAL AND RECYCLING Taking care of spent equipment Used equipment must be taken care of in an environmentally-friendly way. When disposed of, a major share of the material, or its energy content, can be recycled. The quantities possible to recycle vary depending on technical resources and practises in respective country.
