VQ OrthoCare BIONICARE KNEE SYSTEM Quick Start Manual page 5

7

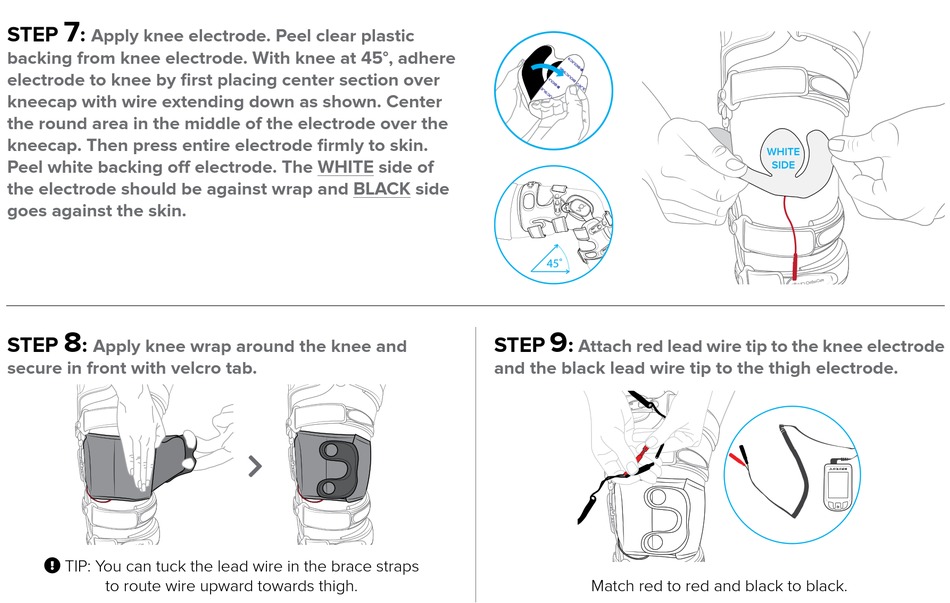

STEP :
Apply knee electrode. Peel clear plastic
backing from knee electrode. With knee at 45°, adhere
electrode to knee by first placing center section over
kneecap with wire extending down as shown. Center
the round area in the middle of the electrode over the
kneecap. Then press entire electrode firmly to skin.
Peel white backing off electrode. The WHITE side of
the electrode should be against wrap and BLACK side
goes against the skin.
8
STEP :
Apply knee wrap around the knee and
secure in front with velcro tab.
 TIP: You can tuck the lead wire in the brace straps
to route wire upward towards thigh.

45˚
9
STEP :
Attach red lead wire tip to the knee electrode
and the black lead wire tip to the thigh electrode.
Match red to red and black to black.
WHITE
SIDE
