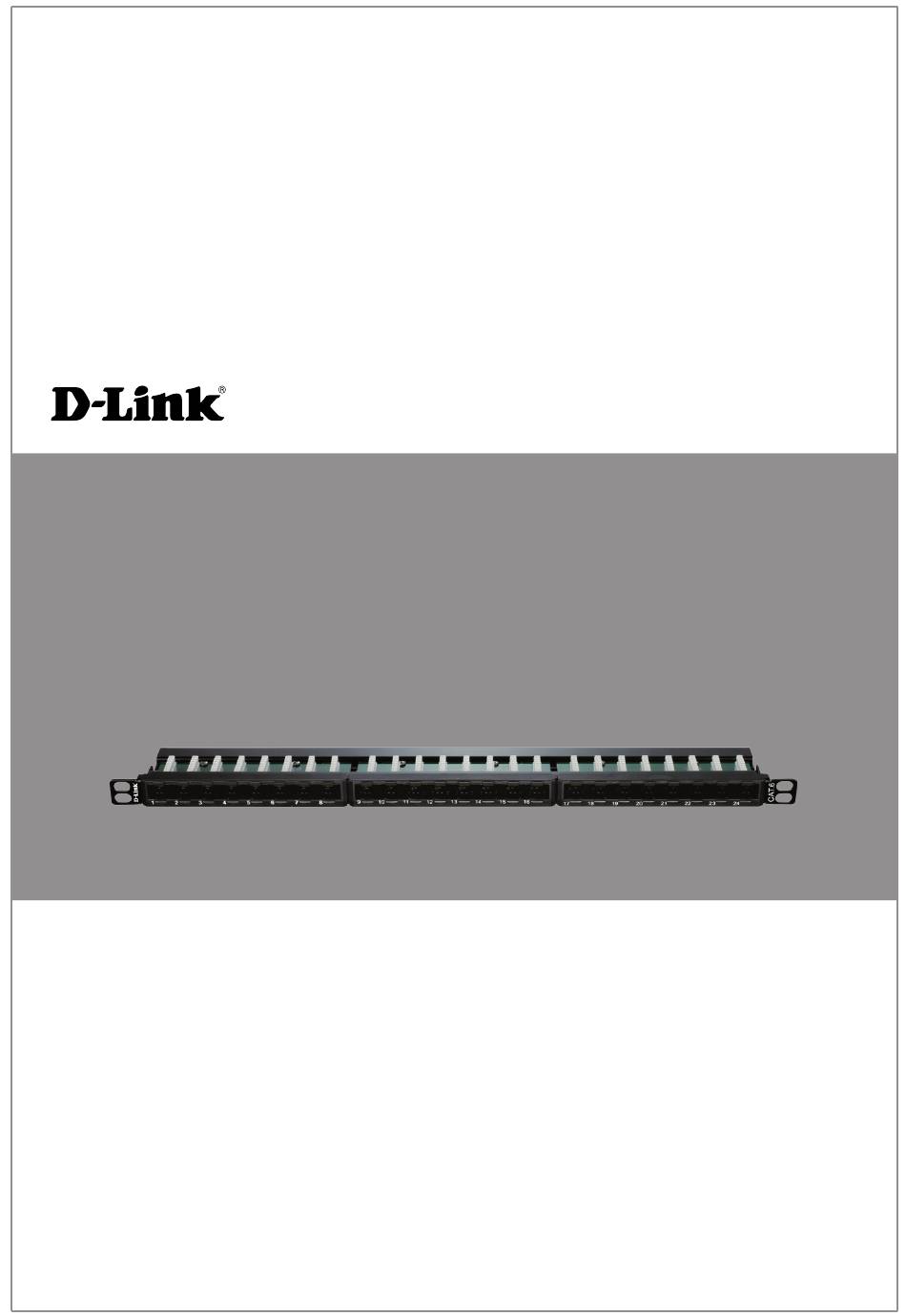

- Page 1 Building Networks for People Hardware Quick Installation Guide Unshielded Patch Panel This document will guide you through the basic installation process for your new D-Link Unshielded Patch Panel. Quick Installation Guide...
- Page 2 About This Guide This guide contains step-by-step instructions for setting up your D-Link Unshielded Patch Panel. Please note that the model you have purchased may appear slightly different from those shown in the illustrations. Product Overview Figure 3. Front Panel Follow the wiring sticker to place the wires into IDC slot.
