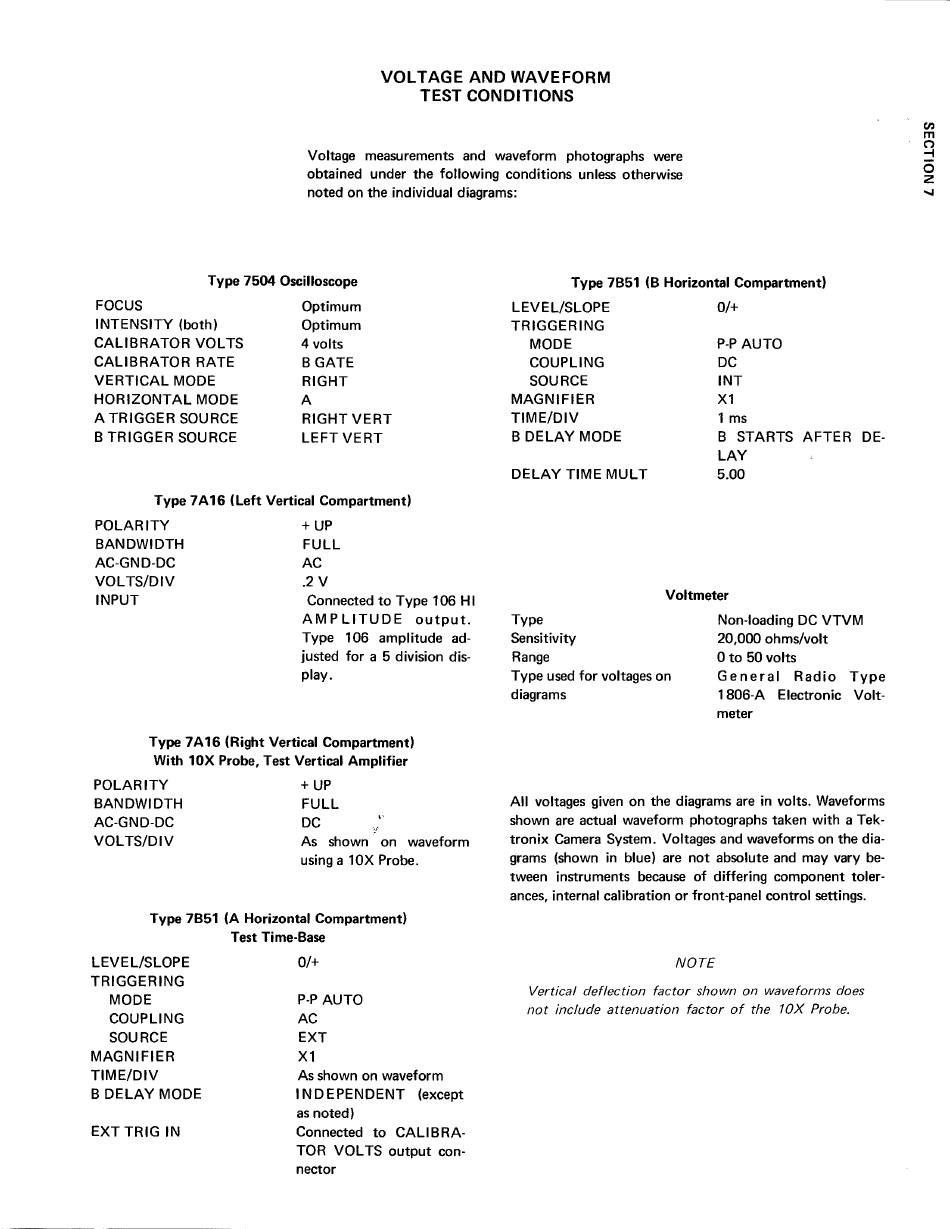

VOLTAGE AND WAVEFORM
TEST CONDITIONS
Voltage measurements and waveform photographs were
obtained under the following conditions unless otherwise
noted on the individual diagrams:
Type 7504 Oscilloscope
FOCUS
Optimum
INTENSITY (both)
Optimum
CALIBRATOR VOLTS 4 volts
CALIBRATOR RATE B GATE
VERTICAL MODE
RIGHT
HORIZONTAL MODE
A
A TRIGGER SOURCE
RIGHT VERT
B TRIGGER SOURCE
LEFT VERT
Type 7A16 (Left Vertical Compartment)
POLAR ITY + UP
BANDWIDTH FULL
AC-GN D-DC AC
VOL TS!DIV .2 V
INPUT Connected to Type 106 HI
AM P LlTUDE output.
Type 106 amplitude ad-
justed for a 5 division dis-
play.
Type 7A16 (Right Vertical Compartment)
With 10X Probe, Test Vertical Amplifier
POLAR ITY + UP
BANDWIDTH FULL
AC-GND-DC DC
"
:>'
VOLTS/DIV
As shown on waveform
using a lOX Probe.
Type 7B51 (A Horizontal Compartment)
Test Time-Base
LEVEL/SLOPE
TRIGGERING
MODE
COUPLING
SOURCE
MAGNIFIER
TIME/DIV
B DELAY MODE
EXT TRIG IN
0/+
P-P AUTO
AC
EXT
Xl
As shown on waveform
I NDEPENDENT (except
as noted)
Connected to CALIBRA-
TOR VOLTS output con-
nector
Type 7B51 (B Horizontal Compartment)
LEVEL/SLOPE 0/+
TRIGGERING
MODE
COUPLING
SOURCE
MAGNIFIER
TIME/DIV
B DELAY MODE
P-P AUTO
DC
INT
Xl
1 ms
B STARTS AFTER DE-
LAY
DELAY TIME MUL T 5.00
Voltmeter
Type
Sensitivity
Range
Type used for voltages on
diagrams
Non-loading DC VTVM
20,000 ohms/volt
o
to 50 volts
General Radio Type
1806-A Electronic Volt-
meter
All voltages given on the diagrams are in volts. Waveforms
shown are actual waveform photographs taken with a Tek-
tronix Camera System. Voltages and waveforms on the dia-
grams (shown in blue) are not absolute and may vary be-
tween instruments because of differing component toler-
ances, internal calibration or front-panel control settings.
NOTE
Vertical deflection factor shown on waveforms does
not include attenuation factor of the lOX Probe.
