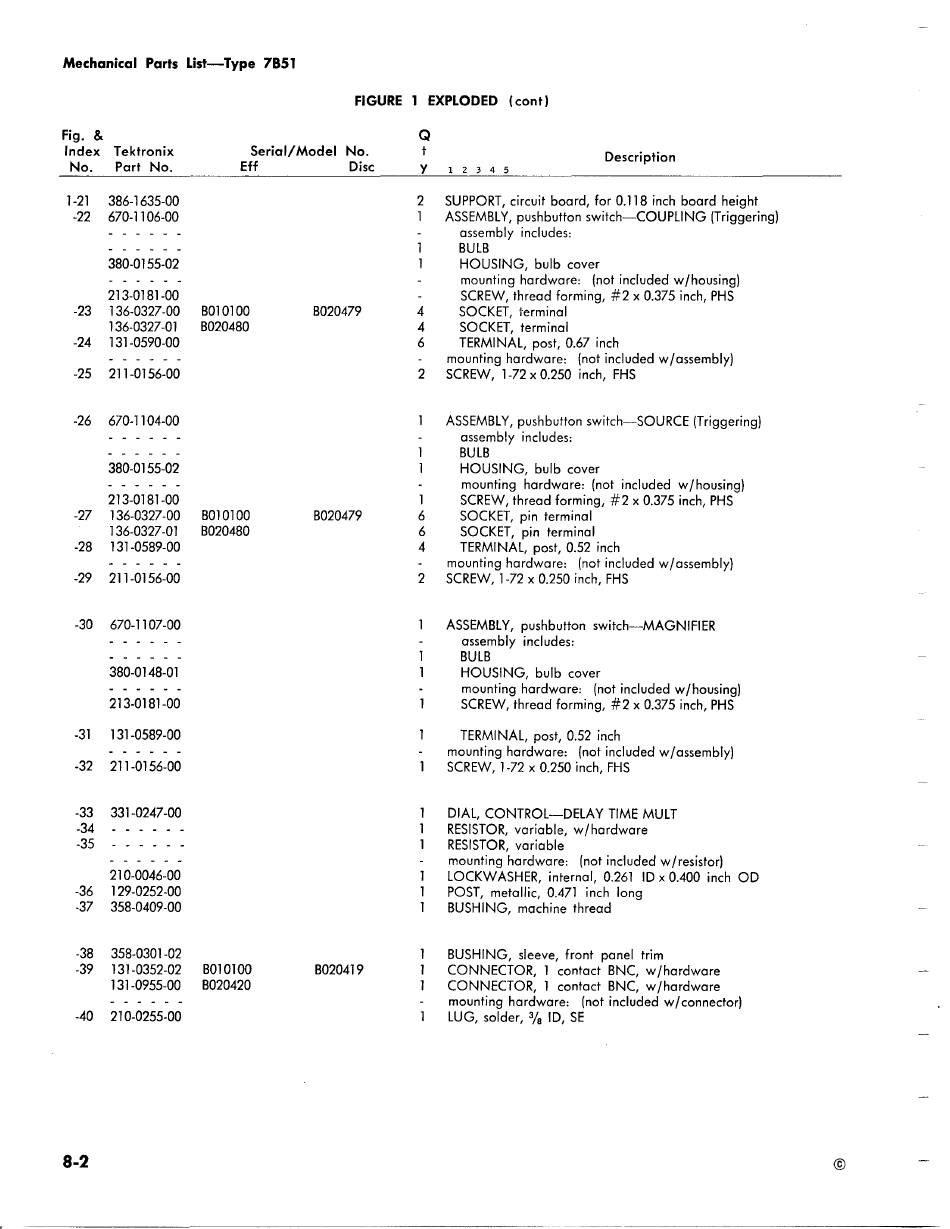

Mechanical Parts List-Type 7851
FIGURE 1 EXPLODED (cont)
Fig. &
Q
Index Tektronix Serial/Model No. t
Description
No. Part No. Eff Disc
y
1 2 3 4 5
1-21 386-1635-00 2 SUPPORT, circuit board, for 0.118 inch board height
-22 670-1106-00
1
ASSEMBLY, pushbutton switch-COUPLING (Triggering)
- - - - - -
assembly includes:
- - - - - -
BULB
380-0155-02 HOUSING, bulb cover
-
- - - - -
mounting hardware: (not included w/housing)
213-0181-00
SCREW, thread forming, #2 x 0.375 inch, PHS
-23 136-0327-00 B010100 B020479 4 SOCKET, l-erminal
136-0327-01 B020480 4 SOCKET, terminal
-24 131-0590-00
6 TERMINAL, post, 0.67 inch
- - - - - -
mounting hardware: (not included w/assembly)
-25 211-0156-00 2 SCREW, 1-72 x 0.250 inch, FHS
-26 670-11 04-00 ASSEMBLY, pushbutton switch-SOURCE (Triggering)
- - - - - -
assembly includes:
- - - - - -
BULB
380-0155-02
HOUSING, bulb cover
- - - - - -
mounting hardware: (not included w/housing)
213-0181-00 1 SCREW, thread forming, #2 x 0.375 inch, PHS
-27 136-0327-00 B010100
B020479 6 SOCKET, pin terminal
1 36-0327-01 B020480 6
SOCKET, pin terminal
-28 131-0589-00 4 TERMINAL, post, 0.52 inch
- - - - - -
mounting hardware: (not included w/assembly)
-29 211-0156-00 2
SCREW, 1-72 x 0.250 inch, FHS
-30
670-11 07-00 ASSEMBLY, pushbutton switch-MAGNIFIER
- - - - - - assembly includes:
- - - - - -
BULB
380-0148-01
HOUSING, bulb cover
- - - - - -
mounting hardware: (not included w/housing)
213-0181-00
SCREW, thread forming, #2 x 0.375 inch, PHS
-31
131-0589-00 TERMINAL, post, 0.52 inch
- - - - - - mounting hardware: (not included w/assembly)
-32 211-0156-00
SCREW, 1-72 x 0.250 inch, FHS
-33 331-0247-00 DIAL, CONTROL-DELAY TIME MULT
-34
- -
-
- -
-
RESISTOR, variable, w/hardware
-35
-
- - - - -
RESISTOR, variable
- - - - - -
mounting hardware: (not included w/resistor)
210-0046-00
LOCKWASHER, internal, 0.261 10 x 0.400 inch 00
-36 129-0252-00
POST, metallic, 0.471 inch long
-37 358-0409-00
BUSHING, machine thread
-38 358-0301-02
BUSHING, sleeve, front panel trim
-39 131-0352-02 B010100 B020419
CONNECTOR, 1 contact BNC, w/hardware
131-0955-00 B020420
CONNECTOR, 1 contact BNC, w/hardware
- - - - - -
mounting hardware: (not included w / connector)
-40 210-0255-00
LUG, solder,
%
10, SE
8-2
@
