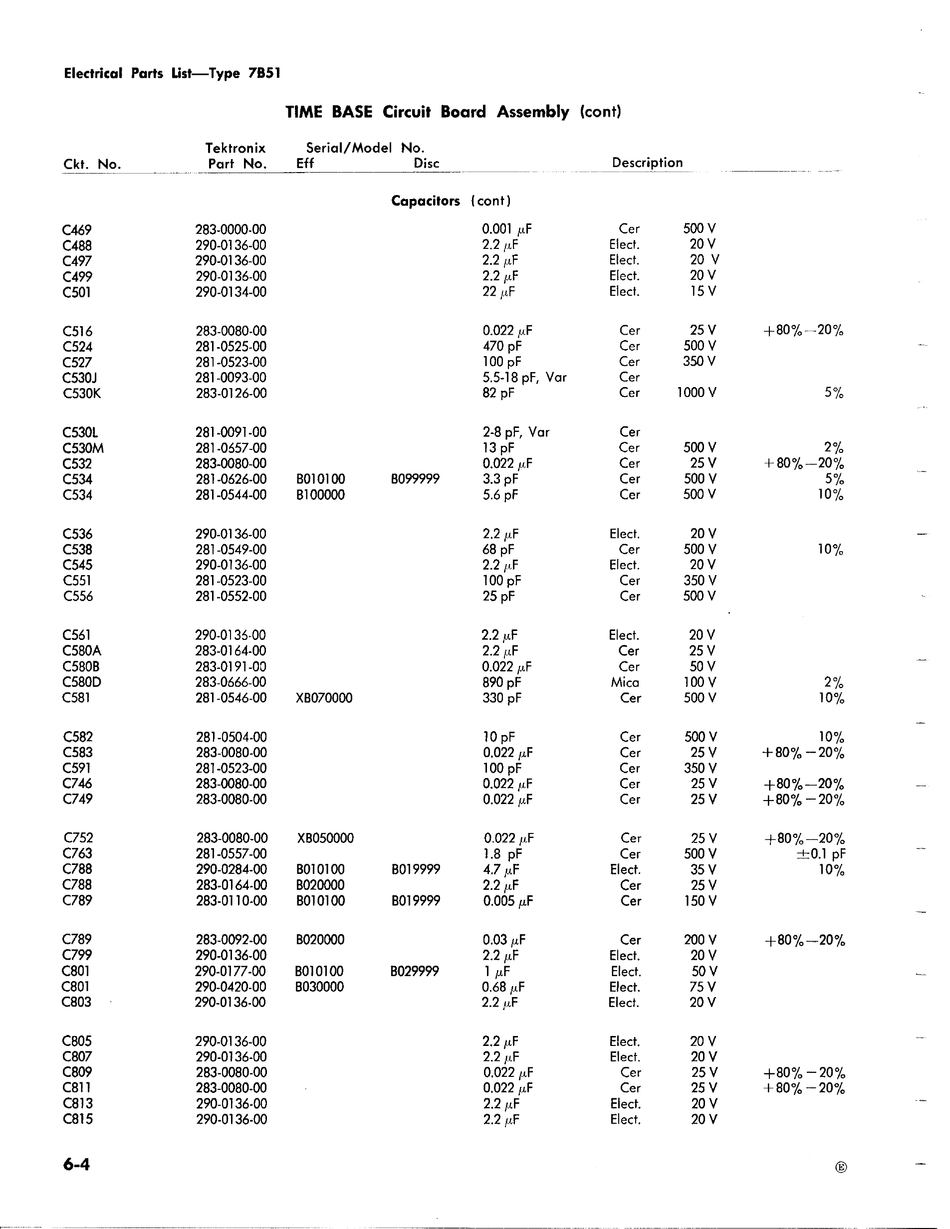

Electrical Parts List-Type 7851
TIME BASE Circuit Board
Assembly
(cont)
Tektronix Serial/Model No.
Ckt. No.
Part No.
Eff
Disc
Description
~- ~--------
-
Capacitors (cont)
C469
283-0000-00 0.001 ,uF
Cer 500 V
C488
290-0136-00 2.2,uF
Elect. 20V
C497
290-0136-00 2.2,uF Elect. 20 V
C499
290-0136-00 2.2,uF Elect.
20V
C501
290-0134-00 22,uF
Elect. 15V
C516 283-0080-00
0.022,uF Cer 25V +80%-20%
C524
281-0525-00 470 pF Cer 500 V
C527
281-0523-00 100 pF
Cer 350 V
C530J 281-0093-00
5.5-18 pF, Var Cer
C530K 283-0126-00 82 pF Cer 1000 V 5%
C530L
281-0091-00 2-8 pF, Var Cer
C530M 281-0657-00 13 pF
Cer
500 V 2%
C532 283-0080-00 0.022 ,uF
Cer 25V +80%-20%
C534
281-0626-00 B010100 B099999 3.3 pF Cer 500 V 5%
C534 281-0544-00 B100000 5.6 pF
Cer 500 V
10%
C536 290-0136-00 2.2,uF Elect. 20V
C538
281-0549-00 68 pF Cer 500 V
10%
C545 290-0136-00 2.2,uF Elect. 20V
C551 281-0523-00
100 pF Cer
350 V
C556 281-0552-00 25 pF Cer 500 V
C561 290-0136-00 2.2,uF Elect. 20V
C580A 283-0164-00 2.2,uF Cer 25V
C580B 283-0191-00 0.022,uF Cer 50V
C580D 283-0666-00 890 pF Mica 100V
2%
C581 281-0546-00 XB070000 330 pF Cer 500 V 10%
C582 281-0504-00 10 pF Cer 500 V
10%
C583 283-0080-00 0.022,uF Cer 25V +80% -20%
C591 281-0523-00 100 pF Cer 350 V
C746 283-0080-00 0.022 ,uF Cer 25V +80%-20%
C749 283-0080-00 0.022,uF Cer 25V
+80% -20%
C752 283-0080-00 X B05OO00 0.022,uF Cer 25V
+80%-20%
C763 281-0557-00 1.8 pF Cer 500 V
+0.1 pF
C788 290-0284-00 B010100 B019999
4.7 ,uF
Elect.
35V 10%
C788 283-0164-00 B02oo00 2.2,uF Cer 25V
C789 283-0110-00 B01 01 00 B019999 0.005,uF Cer 150 V
C789 283-0092-00 B020oo0 0.03 ,uF Cer 200 V
+80%-20%
C799
290-0136-00 2.2,uF Elect. 20V
C801 290-0177-00 B01 01 00 B029999
1 ,uF
Elect.
50V
C801 290-0420-00 B030000 0.68,uF Elect. 75V
C803 290-0136-00
2.2,uF Elect. 20V
C805 290-0136-00 2.2,uF Elect. 20V
C807 290-0136-00 2.2,uF Elect. 20V
C809 283-0080-00
0.022,uF
Cer 25V
+80% -20%
C811 283-0080-00 0.022,uF Cer 25V +80%-20%
C813 290-0136-00 2.2,uF Elect. 20V
C815
290-0136-00 2.2,uF Elect. 20V
