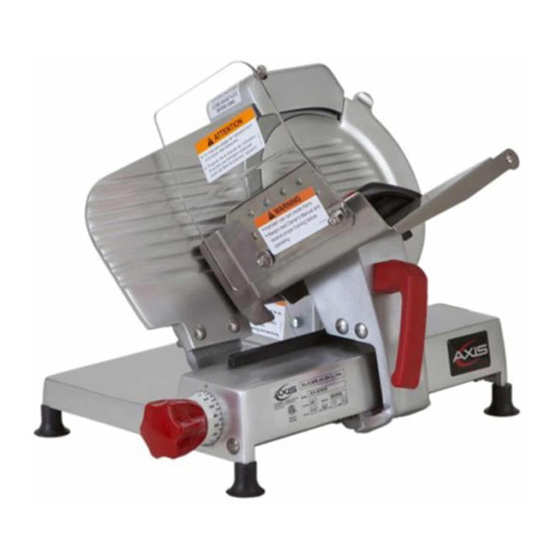

Axis AX-S9Ultra Installation & Maintenance

LUBRICATION
The rod on which the product holder slides, which is underneath the slicer, should be
lubricated weekly with several drops of oil. Machine without oiler. Lift up the machine and
oil the rod directly. After the lubrication have the carriage sliding 4 or 5 times.
Use oil SHELL ONDINA 15 or ESSO MARCOL 82.
Occasionally, the slice thickness plate slide rod should be coated lightly with lubricant.
Turn the slice thickness control fully counterclockwise when lubricating this slide rod
and then turn it fully clockwise when finished.
DO NOT lubricate the rod on which the last slice device slides.
It must be kept clean but not lubricated. The motor has sealed bearings and requires no
lubrication maintenance.
WEAR ADJUSTMENT
After several years of operation and many sharpenings of the blade it may become
necessary to have the slice thickness plate adjusted closer to the blade.

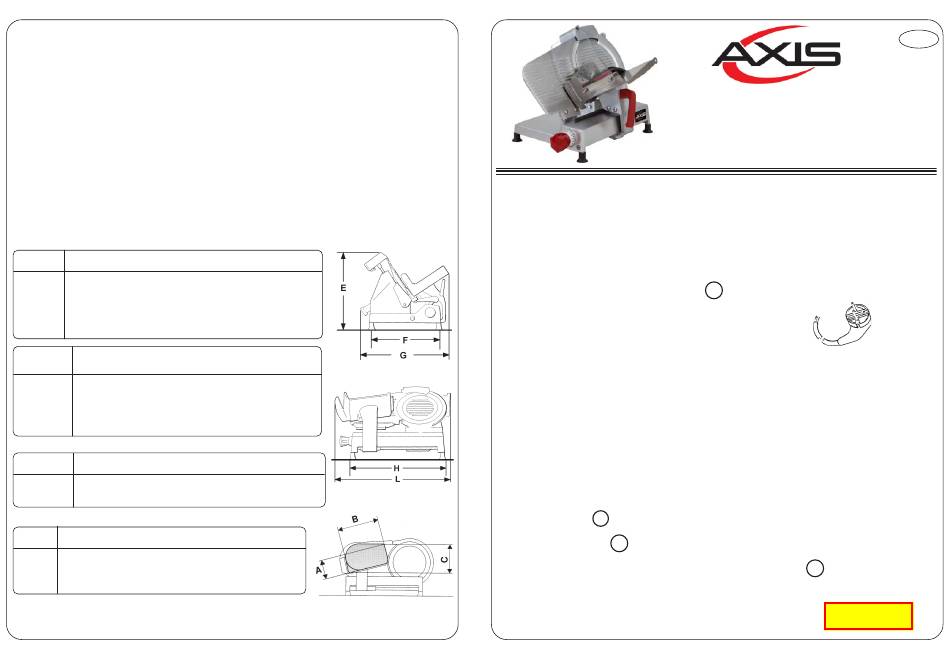

AX-S9Ultra AX-S10Ultra
E 330 360
F 280 280
G 410 410
H 360 360
L 590 590
Motor Data AX-S9Ultra AX-S10Ultra AX-S12Ultra AX-SD12Ultra
Volts 115
Hz 60
Ph 1
Amp 1,5 1,5
N/min 1750
Weight AX-S9Ultra AX-S10Ultra AX-S12Ultra AX-SD12Ultra
Net kg 12 13
Brut kg 15 16
Slicing capacity mm
AX-S9Ultra AX-S10Ultra AX-S12Ultra AX-SD12Ultra
A 140 140
B 190 190
C 170 170
PLEASE CALL AXIS EQUIPMENT FOR PARTS & SERVICE FOR YOUR
SLICER AT: (514) 737-9701 / (888) 275-4538
Dimension mm
AX-S12Ultra AX-SD12Ultra
390 470
320 365
450 500
420 455
600 630
2,5 2,5
18 24
22 29
150 200
220 270
210 235
INSTALLATION
UNPACKING
Immediately after unpacking the slicer, check it for possible shipping damage. If this
machine is found to be damaged after unpacking, save the packing material and contact
the carrier within 15 days of delivery.
Prior to installation, test the elettrical service to assure that it agrees with the
specifications on the machine data plate 1
ELECTRICAL
WARNING: THIS MACHINE IS PROVIDED WITH THIS PLUG
CONNECTED TO PROPERLY GROUNDING PLUG, GROUNDED OUTLET. IF THE
RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN
ELECTRICIAN.
CLEANING
This machine must be thoroughly cleaned and sanitized after installation and before
being put into service.
SAFETY
SAFETY DEVICES INCORPORATED IN THIS SLICER MUST BE IN THEIR CORRECT
OPERATING POSITIONS ANYTIME THE SLICER IS IN USE.
The blade cover 5 must be in position over the knife and secured by tightening
the hand knob.
The Iast slice device 4 must be used when slicing it keep your hands away from
the blade.
When the slicer is not running, the slicer thickness control 2 must be set on zero
(fuIly clockwise) to prevent the blade edge from being exposed. Always UNPLUG the
power cord before cleaning or moving the slicer.
AX-S9 Ultra
INSTALLATION AX-S10 Ultra
MAINTENANCE
AX-S12 Ultra
SLICER
AX-SD12 Ultra
.
MUST BE
RETURN
