UNPACKING
Immediately on delivery unloading, please chek whether machine packaging is eventually deteriorated
and in this case make necessary reservetions on signing the delivery note. You will than check the
machine inside packaging and eventually contact immediately the carrier when it is damaged.
Prior to installation, test the elettrical service to assure that it is in compliance with the specifications on
the machine data plate 1 .
ELECTRICAL
Warning: THIS MACHINE IS PROVIDED WITH THIS PLUG
TO PROPERLY GROUNDING PLUG, GROUNDED OUTLET. IF THE RECEPTACLE IS NOT THE
PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN.
CLEANING
This machine musi be thoroughly cleaned and sanitized after installation and before being put into
service.
SAFETY
SAFETY DEVICES INCORPORATED IN THIS SLICER MUST BE IN THEIR
CORRECT OPERATING POSITION EVERY TIME THE SLICER IS IN USE.
The blade cover 6
the hand knob 7 .
The Iast slice device 4 must be used when slicing, it keeps your hands away from the knife.
SLICER AX-S12BA
INSTALLATION
must be in position over the knife and secured by tightening
INSTALLATION
MAINTENANCE
1/4
MUST BE CONNECTED
Advertisement
Related Manuals for Axis AX-S12BA
Summary of Contents for Axis AX-S12BA

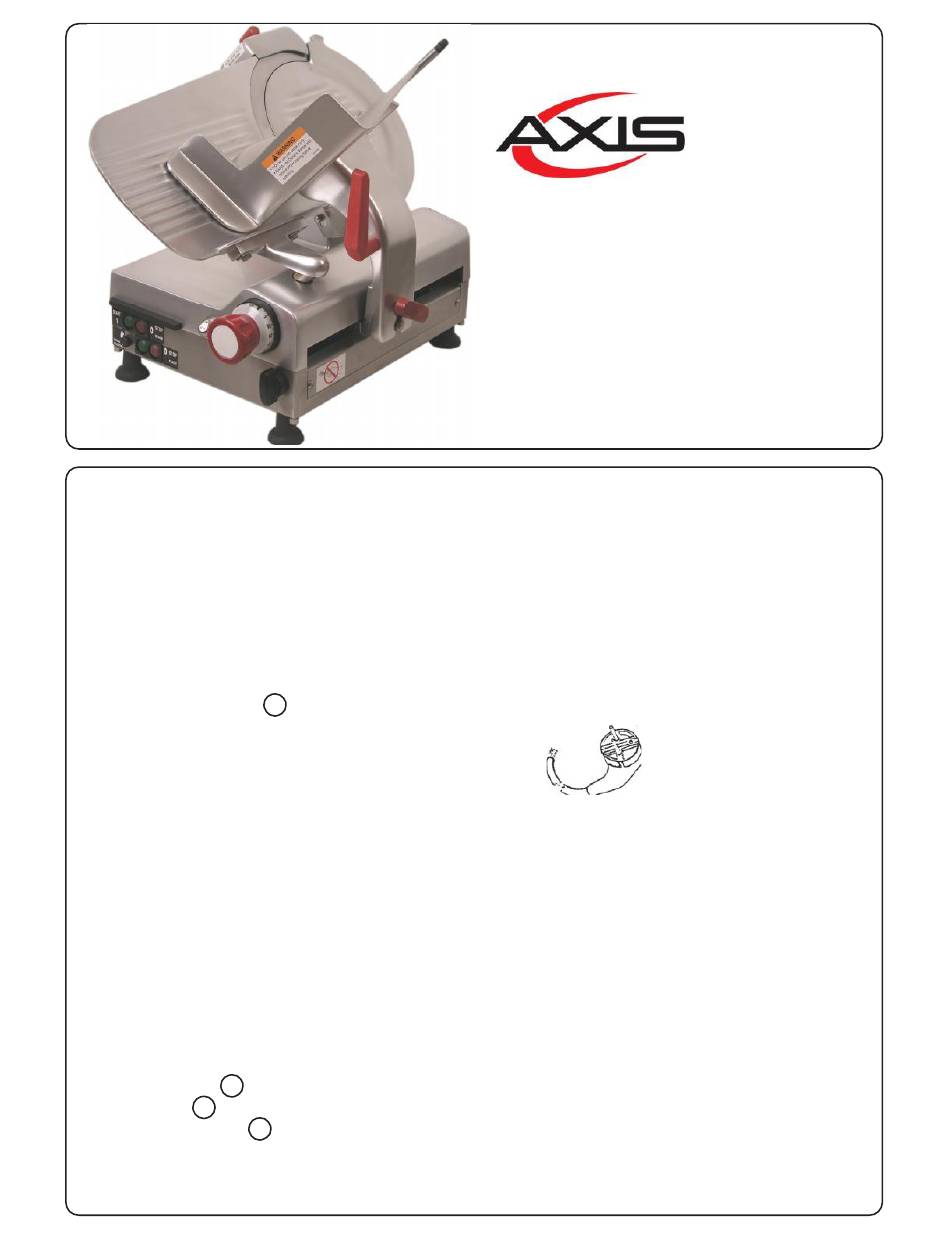

- Page 1 INSTALLATION MAINTENANCE SLICER AX-S12BA INSTALLATION UNPACKING Immediately on delivery unloading, please chek whether machine packaging is eventually deteriorated and in this case make necessary reservetions on signing the delivery note. You will than check the machine inside packaging and eventually contact immediately the carrier when it is damaged.
- Page 2 When the siicer is not working, the slicer thickness control 2 must be set on zero (fuIly clockwise) to prevent the blade edge from being exposed. Always UNPLUG the power cord before cleaning or moving the slicer. SLICING PuII the product holder 3 towards you until it stops and place the product to be sliced on the product holder tray.
-
Page 3: Maintenance
MAINTENANCE ATTENTION Use protection gloves ELECTRICAL SAFETY When the slicer is running the eventual removal of the blade cover 6 , or the default of electric power, causes the stop of the machine. To restart the slicer press the on-off switch 9 . SHARPENING OPERATION Your slicer blade will provide long service in normal deli, food store, or commercial kitchen use. - Page 4 ¾ DEFINITIONS M A N U A L O P E RATIO N R otate the A UTO /M A N U AL selector carriage release handle by 180 ,clockw ise Push the on switch/blade start pushbutton Adjust the thickness you want by turning the slice thickness control knob Actuate the carriage by your hand Push the off switch/blade stop pushbutton A UTO M ATIC O P E RAT IO N...
- Page 5 AFFETTASALUMI AUTOMATICHE A GRAVITÀ AUTOMATIC GRAVITY FEED SLICERS TRANCHEURS AUTOMATIQUES POUR CHARCUTERIE AUTOMATISCHE SCHWERKRAFTAUFSCHNITTMASCHINEN AX-S12BA PEZZI DI RICAMBIO SPARE PARTS LIST...
- Page 6 07 - 07 - 04 GLMATIC 300 MOD. C 6778 dal/from Ser.Nr. fino al/to Ser.Nr. V 6065 V 6285 C 6784 S 9112 V 625315 M 0810 B 1870 E 1409A D 0167 D 5851 V 8017 V 8085 M 0802 B 1317 V 6065 R 6840...
- Page 7 16 - 09 - 08 M 8260 -120V/60Hz-1 C 5833 I 3780 THERMAL PROT. 120V/60Hz GLM300 “ETL” V 8052 MOD. S 7512 M 8051 dal/from Ser.Nr. fino al/to Ser.Nr. V 8048 P 2014 D 0153X C 3654 V 6065 P 3536 P 2008 V 6279 V 6206...
- Page 8 30 - 01 - 07 A 5403 P 3423 GL MATIC 300 MOD. I 1901A P 6805A dal/from Ser.Nr. V 6064 D 0153X fino al/to Ser.Nr. S 9089 R 6804 C 4601 n.20 V 7020 C 4602 n.13 B 6052 S 7527 P 6905A V 7915...
- Page 9 27 - 11 - 02 GLMATIC 300 MOD. dal/from Ser.Nr. fino al/to Ser.Nr. T 5002 L 0612 V 3029 C 5001 R 6870 V 7014X T 5032 B 6144 R 6806 R 6905 T 8521 G 5027 P 4621 B 6104B V 6462X P 1533 I 1926...
- Page 10 03 - 05 - 06 A 5910 C 8022 GLMATIC 300 MOD. A 5475 dal/from Ser.Nr. P 8053 fino al/to Ser.Nr. A 5905 A 5475 C 8007 A 5446 V 6278 P 3391 T 8044 C 4813 B 6192 E 1457 V 8020 D 0102 R 6505...
- Page 11 03 - 04 - 04 AFFILATOIO A1019 MOD. dal/from Ser.Nr. fino al/to Ser.Nr. I 1953 C 1601 V 6215 A 1001 R 6903 A 5403 M 7017 C 6803 P 3221 R 6508 M 6622 V 6484 R 6854 M 7017 D 0133 P 3222 S 3005...
