DISASSEMBLY

Disassembly
Note: The pictures in the tear down are those of the
9300.The 9300xi tear down is the same, except that some of
components look different. Always consult the individual
breakdowns for 9300 and 9300xi before replacing any part.
Disassembly:
Removing the Filter Canister,
Cover, and Propeller

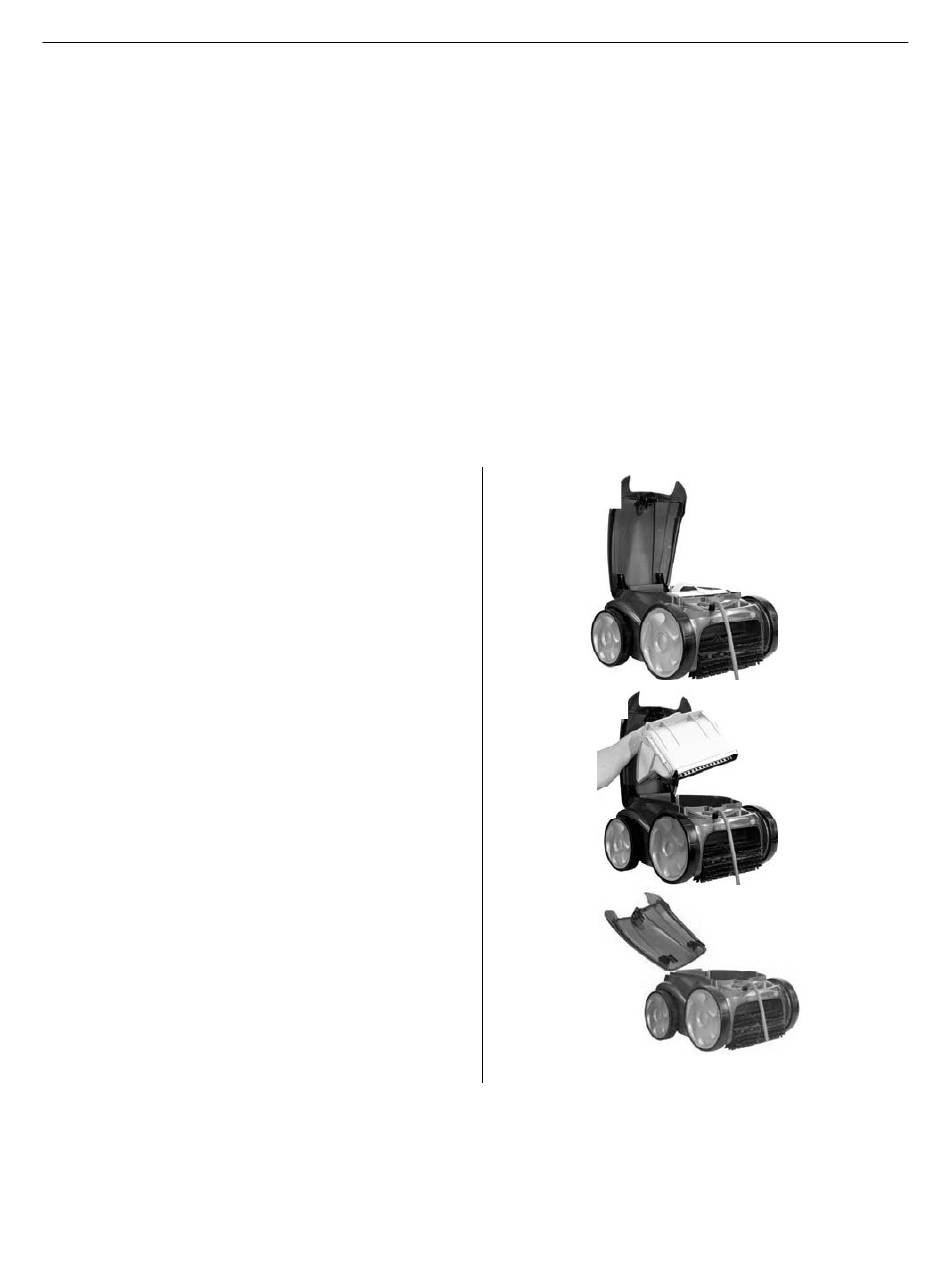

1- Open cover.
2- Remove canister.
3- Grasp cover at the top
and quickly pull backward
to release hinges and
snap off cover.
4- Remove propeller. (As
shown in maintenance).
Notes:
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
Tools needed:
• 5/32" T-handle Allen wrench
• Rubber mallet
• Phillips head screw driver
14
1
2
3
