Bosch 1364 Parts List
Bosch appliances grinder - angle grinder
Hide thumbs
Also See for 1364:
- Operating and safety instructions manual (41 pages) ,
- Operating/safety instructions manual (37 pages) ,
- Brochure (34 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bosch 1364
Summary of Contents for Bosch 1364

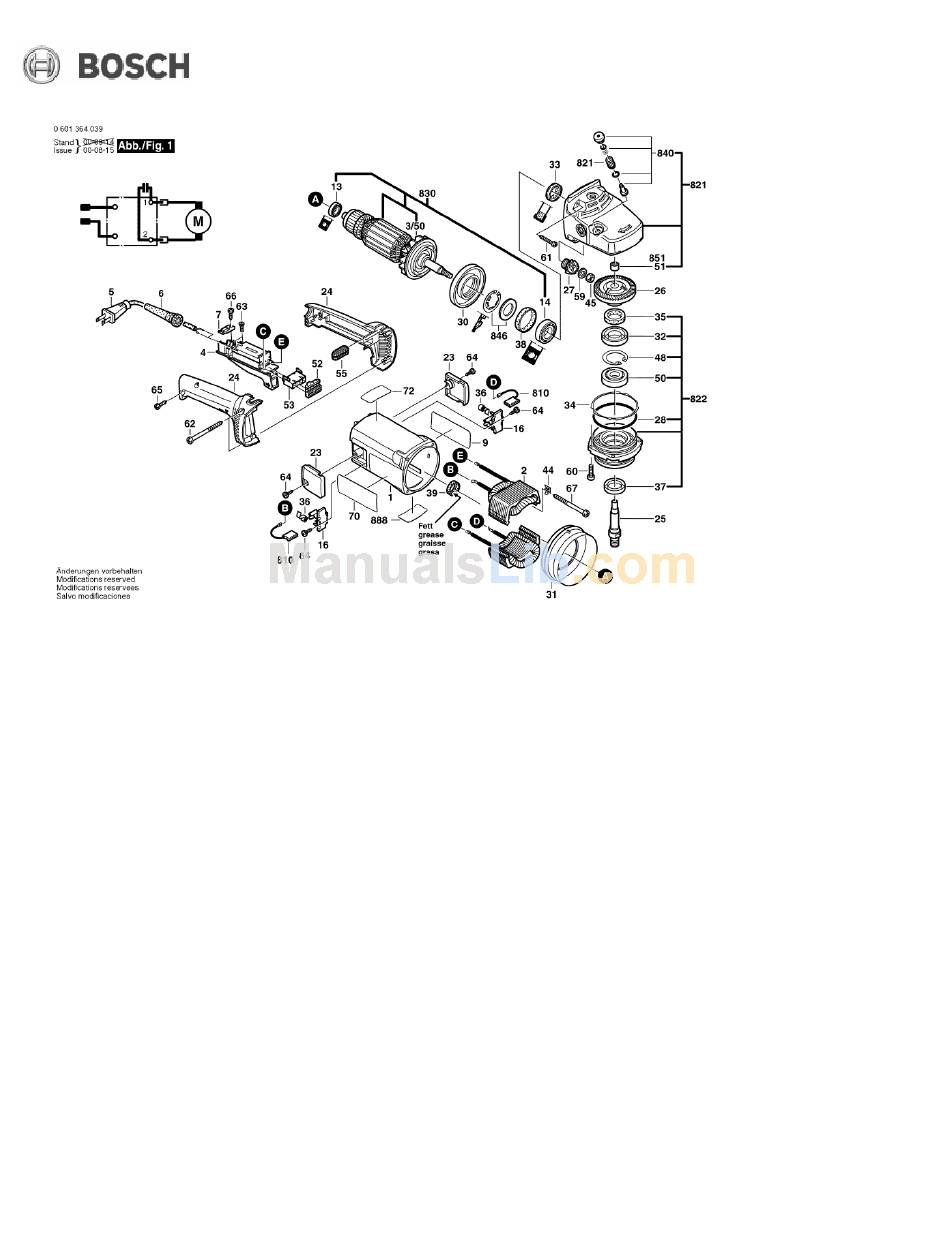

- Page 1 Page 1 http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=0601364039&ID_VERSION=1 0 601 364 039 ANGLE GRINDER 1364 Page 1 of 7 27.02.2007 16:34:41 2/27/2007...
- Page 2 Item Quantity Order No. Designation 1 605 108 MOTOR HOUSING \ BLACK 1 604 220 FIELD \ 100-120V 1 606 610 3/50 1 607 200 ON-OFF SWITCH 1 604 460 POWER SUPPLY CORD \ USA/CDN 2,15m 2 x 2,08mm SJ 14/2 1 600 703 GROMMET \ Ø10,5-Ø11x100 MM 1 601 302...
- Page 3 1 603 300 HEXAGON NUT \ M10, SW14 1 600 119 RETAINING RING 3 600 905 DEEP-GROOVE BALL BEARING 1 600 200 FRICTION BEARING \ Ø14 MM 1 602 388 CABLE RUN 1 605 190 SOCKET HOUSING 1 602 388 STORAGE LEDGE \ BLACK 1 600 101 PLAIN WASHER...
- Page 4 1 605 703 762/70 1 CONICAL SPRING WASHER 1 603 340 762/80 1 ROUND NUT \ 5/8"-11-UNC-3B, 1"(Ø 25,4 MM), SW 28,6, SW 9,6 1 600 793 SUCTION BEND \ Ø 35 MM 1 607 014 CARBON-BRUSH SET 1 607 000 GEAR HOUSING 1 607 000 PARTS SET...
- Page 5 Page 5 of 7 Page 2 http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=0601364039&ID_VERSION=1 2/27/2007...
