10. Repair

MacuLogix provides return-to-factory service for the AdaptDx Pro. Contact MacuLogix at
1-888-392-6801, Monday through Friday between 9:00 AM and 5:00 PM US Eastern time if you
encounter any problems requiring maintenance.
The following components of the device can be replaced by the user.
Adjustable Head Strap – To replace the headstrap, disconnect the headstrap from the device
by depressing the buttons demonstrated in figure 10.1. To connect the new headstrap, align the
connections and press them into place as demonstrated in figure 10.2.

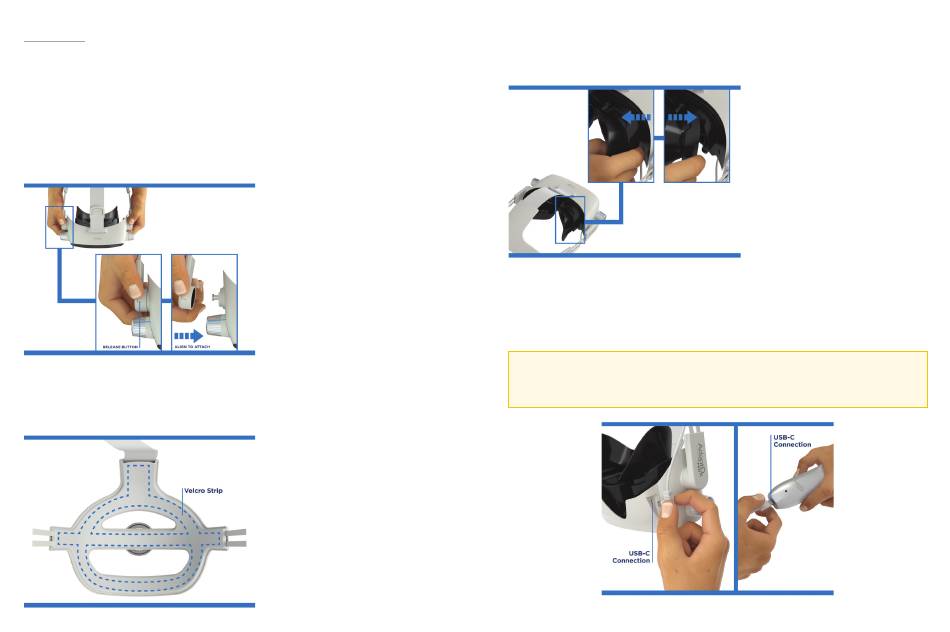

Figure 10.1
Padded Liner
– To replace the padded liner, remove the padded liner from the velcro strips which
are fastened to the head strap. Align the new foam liner to the head strap and firmly press over the
velcro strips to ensure the foam liner is securely attached to the head strap. The proper alignment is
demonstrated in figure 10.3.
20
Figure 10.2
Figure 10.3
Eyecups – To replace the eyecups, remove each eyecup from the device by grasping and pulling the
outside corner of the rubber eyecup as demonstrated in figure 10.4. To connect the new eyecups, align
the eyecup tabs to the device notches and press them into place as demonstrated in figure 10.5.
Figure 10.5
USB-C Cable – To disconnect the USB cable from the device or the handheld controller, firmly grasp
the cable by the connector and disconnect it from the device. To connect the USB cable from the device
or the handheld controller, firmly grasp the cable by the connector and insert the cable connector into
the device connection port as demonstrated in figure 10.6 and 10.7.
Only MacuLogix supplied USB-C cables should be connected to the AdaptDx Pro device
and it's components.
Figure 10.6
Figure 10.4
Figure 10.7
