Summary of Contents for Nedo TUBUS 2

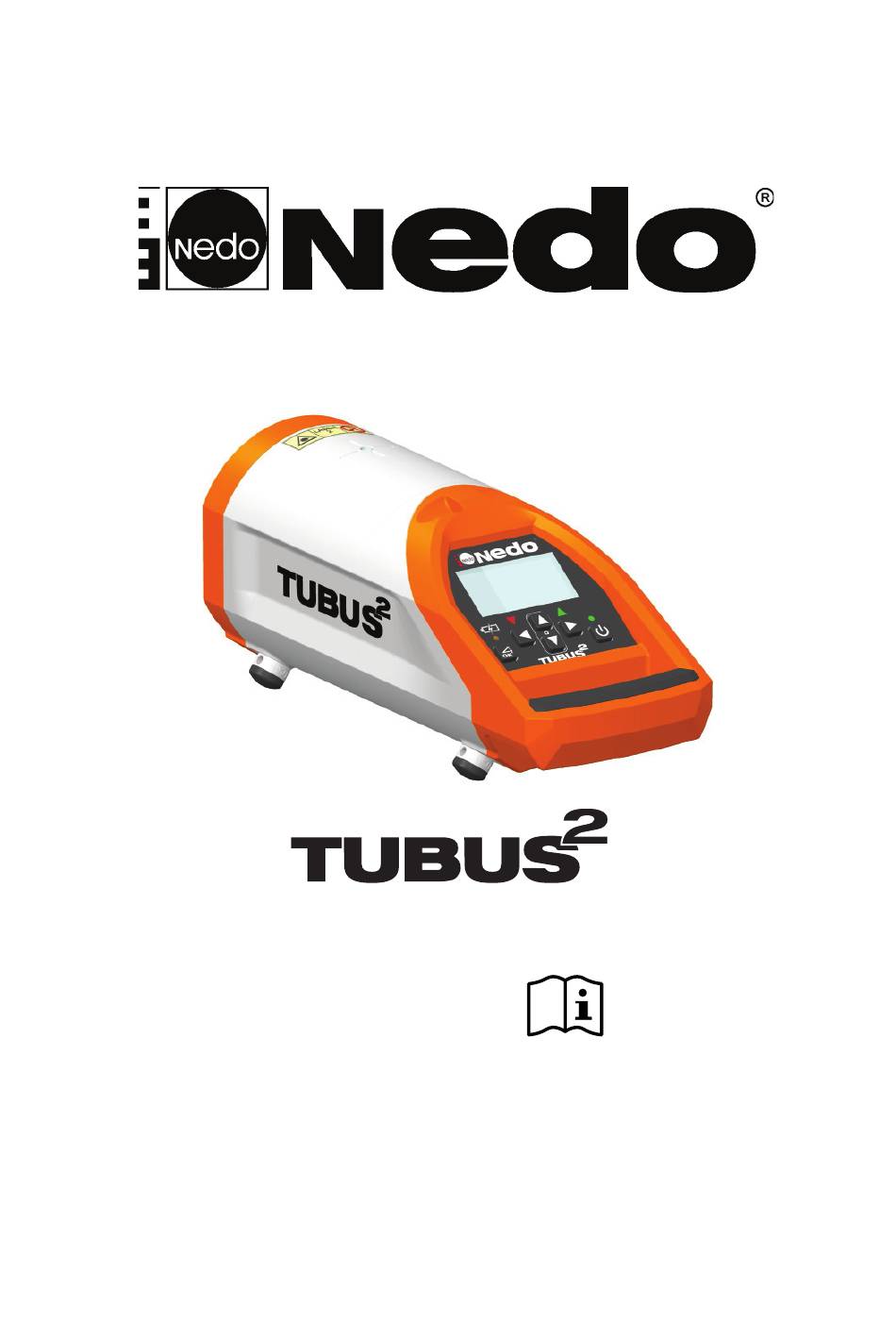

- Page 1 EN Operating Instruction...
- Page 2 These operating instructions have been drawn up with due care. However, NEDO GmbH & Co. KG does not accept any liability for possible errors in these operating instructions and their consequences. Equally, it does not accept any liability for direct losses or consequential losses resulting from improper use of the laser.
-
Page 3: Table Of Contents
5.4 Buttons of the TUBUS 2 remote control panel ......16 5.5 Additional displays of the TUBUS 2 remote control ...... 16 5.6 Additional button functions of the TUBUS 2 remote control ..17 6 TUBUS 2 Startup 6.1 Switching on the TUBUS 2 pipe laser ........... 17 6.2 Aligning the TUBUS 2 pipe laser .......... -
Page 4: About These Operating Instructions
TUBUS 2 pipe laser. Operation, maintenance and care of the laser as well as the warnings and error messages are also described. • Do not use the TUBUS 2 pipe laser until you have completely read and un- derstood these operating instructions. -
Page 5: Safety Information
Safety instructions 2 Safety information 2.1 Documentation Compliance with the following safety instructions and the specific national safety regu- lations and health & safety provisions is a basic requirement for trouble-free and safe use of the laser. Therefore, please read carefully through these operating instructions and all notes and follow them while working with the laser. -
Page 6: Power Supply Safety Instructions
Safety instructions Signage WARNING! Warning signs on the laser are for your safety. Never remove the warning signs! Laser exit openings Laser warning Type label 2.3 Power supply safety instructions WARNING! Destruction! Explosion risk! Use charger included in the scope of delivery only. Use the charger in dry rooms only. -
Page 7: General Safety Instructions
Do not use the units as a climbing aid for people or machines. 2.5 Intended use The TUBUS 2 pipe laser is suitable for measuring tilts and alignments in pipes and sewers. The unit is submersible (IP68). The unit can be operated with a radio remote control or alternatively via infrared. -
Page 8: Conformity Assessments
+49 7443 2401 45 bestätigen in alleiniger Verantwortung, dass das Gerät: confirm under our sole responsibility that the device: Type: TUBUS 2 – 472210 / 472210-632 Type: Beschreibung : Kanalbaulaser mit Fernbedienung description: Pipe laser with remote control Hersteller: Nedo GmbH &... - Page 9 Safety instructions FCC note This unit has been tested and conforms with the limits for a Class A digi- tal device in accordance with Part 15 of the FCC Rules. These limits should provide appropriate protection against harmful interference, if the device is operated in a commercial, industrial or business environment.
-
Page 10: Description Of The Tubus 2 3.1 General Product Description
3 Description of the TUBUS 2 3.1 General product description The TUBUS 2 is a fully automatic laser, which has been developed for use in pipe and sewer constructions. The TUBUS 2 can be used to survey or meas- ure and lay pipe systems quickly and easily. The innovative shock protection system and the robust, water and dust protected housing protect the laser. -
Page 11: Structure Of The Unit
EN Operating Instructions 3.4 Device components TUBUS 2 pipe laser 1 LED for signalling the laser axis of rotation 2 OLED display 3 Control panel with rubber keypad 4 Handle, rubberised 5 Adjustable feet for pipe (Ø 150mm, 200mm, 250mm, 300mm) -
Page 12: Technical Data
EN Operating Instructions 3.5 Technical spezification Pipe laser Pipe laser TUBUS 2 Ref-No. 472210 / 472210-632 Self-levelling range: -15% ... +40% Transverse tilt compensation ±5° Vertical adjustment range -15% ... +40% Horizontal adjustment range ±10° Display resolution 0,001% Levelling accuracy 1, 2 ±... -
Page 13: Charging The Battery
EN Operating Instructions 4 Initial start up TUBUS 2 4.1 Charging the battery 1 Remove the rubber cover from the charging socket. 2 Connect the adapter cable supplied to connect both units to the charger at the same time. 3 Connect the cable in the charging socket of the unit. -
Page 14: Tubus 2 Controls
EN Operating Instructions 5 TUBUS 2 Controls 5.1 Buttons of the TUBUS 2 control panel BUTTON SELECTION/ VALUE INPUT „upwards“ DISPLAY LED-DISPLAY Tilt adjustment LED-DISPLAY „Rising gradient“ (+) Tilt adjustment „Falling gradient“ (-) LED-DISPLAY Operating state LED-DISPLAY charging BUTTON Laser ON/OFF... -
Page 15: Tubus 2 + Rc Display And Button Functions
EN Operating Instructions 5.3 Display and button functions TUBUS 2 and Remote control No. Button/Display Description Up arrow Number selection upwards for tilt input or tilt adjustment upwards in manual mode Tilt indicator Lights up green if a rising gradient (+) is set... -
Page 16: Buttons Of The Tubus 2 Remote Control Panel
EN Operating Instructions 5.4 Buttons of th TUBUS 2 remote control panel BUTTON SELECTION / VALUE INPUT „upwards “ BUTTONs Activate settings menu DISPLAY LED-DISPLAY LED-DISPLAY Tilt adjustment Tilt adjustment „Falling gradient“ (-) „Rising gradient“ (+) BUTTON BUTTON Move laser beam... -
Page 17: Additional Button Functions Of The Tubus 2 Remote Control
EN Operating Instructions 5.6 Additional button functions of the TUBUS 2 remote control Button Description BUTTON Tilt input / OK The same function as for TUBUS 2 (for functions, see table on page 15) Manual mode Activate / deactivate manual mode. Laser beam can be set and adjusted using the UP/DOWN/RIGHT/LEFT arrow buttons. -
Page 18: Adjusting The Tilt
To confirm the set value, press the TILT/OK button. 7.2 Plumb function The TUBUS 2 remote control can be used to manually adjust the laser beam vertically. This function can be used to align the laser beam with a target mark above the pipe. -
Page 19: Measuring And Accepting The Tilt
EN Operating Instructions 7.3 Measuring and accepting the tilt The TUBUS 2 remote control can be used to manually align the laser beam verti- cally with the target plate and the tilt value can be accepted. Button Description To change the tilt manually, press the MANUAL but- ton. -
Page 20: Unit Settings
EN Operating Instructions 8 Unit settings The TUBUS 2 pipe laser provides a unit setting mode with which the laser can be adjusted individually to the needs of the user. The settings can either be selected directly at the laser or using the remote control. -
Page 21: Unit Menu
EN Operating Instructions 8.2 Unit menu Symbol Description Vibration sensitivity The threshold of the vibration sensitivity can be switched between OFF, COARSE and FINE. By default, the COARSE threshold is set. The function is active 60 seconds after the laser has levelled itself horizontally. -
Page 22: Info Displays And Warnings
Service indicator During start referencing, the laser shows a service symbol at the top left next to the hourglass in the form of a wrench. Remedy: Service is due! Send device for service at NEDO or to an authorized customer service. -
Page 23: Acoustic Warning Signal
EN Operating Instructions Displays in the control panel display Symbol Description Sleep-mode display on the remote control: Laser is in standby mode. Remedy: Use the remote control to disable the laser’s standby mode Infrared display on the remote control If the radio connection is disrupted the unit switches to infrared communication automatically. - Page 24 ® NEDO GmbH & Co. KG Hochgerichtstraße 39 – 43 72280 Dornstetten Deutschland www.nedo.com info@nedo.com Art.-Nr. 063049_EN Subject to technical changes without notice.
