- Page 1 Bedienungsanleitung Operating instructions Mode d‘emploi Gebruiksanwijzing Manual de instrucciones...
- Page 2 These operating instructions have been drawn up with due care. However, NEDO GmbH & Co. KG does not accept any liability for possible errors in these operating instructions and their consequences. Equally, it does not accept any liability for direct losses or consequential losses resulting from improper use of the laser.
-
Page 3: Table Of Contents
EN Contents 1 About these operating instructions 1.1 Symbols used in these operating instructions ..........17 2 Safety information 2.1 Documentation ..................18 2.2 Laser radiation ................... 18 2.3 Intended use ....................19 2.4 Transport and storage ................19 2.5 The environment ..................19 3 Description 3.1 General product description ............... -
Page 4: About These Operating Instructions
General Notes 1 About these operating instructions These operating instructions contain all the important information necessary for handling the PRIMUS 2 H fully automatic rotating laser. Operation, maintenance and care of the laser as well as the warnings and error messages are also described. -
Page 5: Safety Information
Safety instructions 2 Safety information 2.1 Documentation Compliance with the following safety instructions and the specific national safety regu- lations and health & safety provisions is a basic requirement for trouble-free and safe use of the laser. Therefore, please read carefully through these operating instructions and all notes and follow them while working with the laser. -
Page 6: Intended Use
The PRIMUS 2 H fully automatic rotating laser is suitable for levelling and for marking heights. The laser can be used indoors and outdoors. Repairs may only be carried out by NEDO or an authorised customer service agent. 2.4 Transport and storage The laser is is a sensitive, high-precision instrument and must be handled with appropriate care. -
Page 7: Description

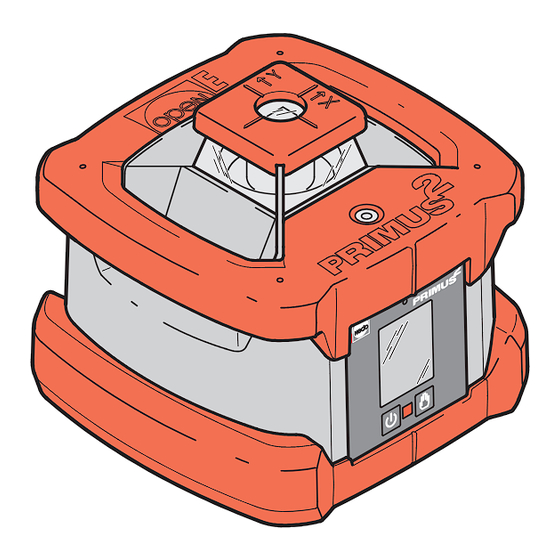

EN Operating Instructions 3 Description 3.1 General product description The PRIMUS 2 H laser is a fully-automatic rotating laser for horizontal use. The innovative shock protection system and the robust, water and dustproof housing protects the high power laser under virtually all indoor and outdoor operating conditions. -
Page 8: Controls
EN Operating Instructions 4 Controls 4.1 Control panel buttons The laser is operated using the control panel. Warning LED Display Activate/ deactivate Laser MANUAL ope- ON/OFF rating mode 4.2 Displays Symbol Description Warning C00 – C03 Error display ERR1 – 12 ROTATION mode Speed of the laser, from Serial no. -
Page 9: Initial Startup
EN Operating Instructions 5 Initial Startup 5.1 Power supply safety instructions WARNING! Destruction! Explosion risk! Use charger included in the scope of delivery only. Do not insert batters in the rechargeable battery pack and charge with the charger. CAUTION! Damage! Do not mix dead and fully charged batteries. -
Page 10: Starting Up The Laser
EN Operating Instructions 6 Starting up the laser 6.1 Install or s et up laser for use The laser can be installed or set up in a horizontal depending on the use situation. Horizontal on tripod Set up horizontally Set laser to working height HORIZONTAL laser projection Use integrated spirit level to align laser CAUTION! -
Page 11: Automatic Operating Mode
EN Operating Instructions 7.1 AUTOMATIC operating mode In AUTOMATIC operating mode, the laser automatically levels itself horizon- tally within a range of ±5° and compensates for minor vibrations. Switch on the laser Laser levels itself Levelling is finished, the flashing symbol goes horizontally out, the laser is active During and for 30 seconds after the levelling the laser can be placed in the fi-... -
Page 12: Maintenance/Care
The PRIMUS 2 H laser is a robust, maintenance-free laser for professional use indoors and outdoors. If the laser no longer works due to an internal error or damage, send the laser to the following address to be repaired: NEDO GmbH & Co. KG Service Department Hochgerichtstraße 39 – 43 72280 Dornstetten... -
Page 13: Checking The Horizontal Accuracy
NOTE Steps 1 and 2 now have to be repeated as described for the Y-axis. If the value of H is outside the tolerance, the Primus 2 must be adjusted by an autho- rised customer service agent or by Nedo. -
Page 14: Warnings And Error Messages
Unallowed change in horizontal position vertical position. Error messages Display Description of the error message Internal unit error Send laser to NEDO's Service department. ERR1 – ERR11 If this error occurs more than once, Send laser to NEDO's Service ERR12 department.
