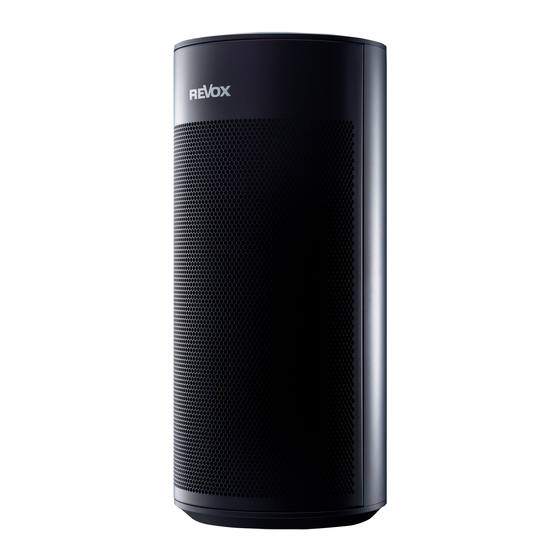

Revox STUDIOART A100 User Manual

Active, passive room speaker
Hide thumbs Also See for STUDIOART A100:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
STUDIOART
A100 Active Room Speaker
P100 Passive Room Speaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STUDIOART A100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Revox STUDIOART A100

Summary of Contents for Revox STUDIOART A100

  • Page 1 User Manual STUDIOART A100 Active Room Speaker P100 Passive Room Speaker...

  • Page 2: Table Of Contents

    Connecting an A100 to other STUDIOART products via cable or wireless ............. 10 A) STUDIOART A100 with P100 cable connection ........................ 10 B) Connecting STUDIOART A100 to further A100 - Wireless connection ................10 Wireless connection: Without the STUDIOART app, proceed as follows: ................11 Wireless connection: With the STUDIOART app proceed as follows: ..................
  • Page 3 The Basic Features of the STUDIOART App ......................13 Configugation ..................................13 Audio setup ..................................... 13 Info-Setup ....................................14 Pairing Setup ................................... 14 Connect / disconnect speakers ............................... 15 Configuration of paired speakers ............................15 Operation STUDIOART App..............................17 Speaker / room selection ................................ 17 Source and music selection ..............................

  • Page 4: Introduction

    STUDIOART app is offered for Android devices from Android 7.0 and Apple devices from iOS 7.0 for free. Scope of delivery • STUDIOART A100 Room Speaker (1x) • Power Supply 15VDC / 4A with Power Cord (1x) • Leaflet Safety Instructions & Warranty (1x) •...

  • Page 5: A100/ P100 Device View

    A100/ P100 Device view Room Speakers A100/ P100 Front view Rear view A100 with connector panel Rear view P100 with connector panel A100 Room Speaker STUDIOART...

  • Page 6: Connection Panel A100

    The input voltage of this power supply may be between 100 and 240 VAC. Use only the supplied original power adapter. Other manufacturer’s power supplies can damage the A100. In this case, Revox disclaims any warranty. LAN connection [LAN] If it is not possible to operate the A100 in a stable WLAN, the A100 can also be connected to a router or switch with a patch cable.

  • Page 7: Charging The Battery

    LED starts to change colour. Two sources are available locally: green : Local analogue input [3.5 mm jack plug on rear of housing] blue : Bluetooth connection [BT name: Revox A100] white [Preset LED]: Stored Internet radio stations. Not used at new delivery.

  • Page 8: A100 Legend Led Display

    A100 Legend LED display Status / Sources LED display Farbe Intervall Bedeutung green permanently Local analog input plays (Analog IN)  green blinking Local analog input selected, but music signal not available  blue blinking Ready for Bluetooth pairing  blue permanently Bluetooth connection asteblished...

  • Page 9: Commissioning

    Speaker placement The STUDIOART A100 and P100 speakers are loudspeakers that you can install anywhere. The prerequisite is that a good Wi-Fi coverage or a LAN connection is available at the installation site of the A100. When operating in the bathroom, please be aware that the A100 or P100 is moisture resistant but not waterproof.

  • Page 10: Integration Of An A100 Into The Domestic Network Via Wi-Fi / Lan

    1. Integration of an A100 into the domestic network via Wi-Fi / LAN The A100 derives its functionality mainly from streaming content from the Internet. For complete control, the A100 communicates with the STUDIOART app, which must also be in the same network as the A100. This chapter explains the possibilities of integrating the A100 into the home network.

  • Page 11: Integrating A100 In The Local Network Using An Apple Device

    Integrating A100 in the local network using an Apple device 1. Download and install the STUDIOART App from the Apple App Store for free. 2. Activate A100 hotspot mode: hold for approx. 5 sec - status LED flashes slowly  A100 sets up its own WLAN (WAC) 3.

  • Page 12: Integrate A100 Into The Local Network Via A Lan Connection

    Integrate A100 into the local network via a LAN connection Should it not be possible to operate the A100 in a stable WLAN, it can also be connected to a router or switch with a LAN cable (patch cable with RJ45 plug). Important note As soon as A100 is connected to LAN,...

  • Page 13: Connecting An A100 To Other Studioart Products Via Cable Or Wireless

    B) Connecting STUDIOART A100 to further A100 - Wireless connection When connecting wirelessly, one A100 is defined as the main loudspeaker (Chief) and the other A100 Active Room Speaker as the connected loudspeaker (Client).

  • Page 14: Wireless Connection: Without The Studioart App, Proceed As Follows

    Without Wireless connection: the STUDIOART app, proceed as follows: 1. Switch both A100 on by long press of - Status LED lights up  2. Define first A100 as Chief loudspeaker: Hold for more than 8 sec - Status LED flashes quickly first, then slowly...

  • Page 15: Connecting Studioart A100 To B100 Bass Module

    Connecting STUDIOART A100 to B100 Bass Module When pairing, an A100 is defined first, either directly on the device or via the STUDIOART App, as the main speaker. Then you initiate the pairing process on the B100 Bass Module itself. After successful pairing, the B100 will be listed as a connected Speaker in the app and can be further configured there.

  • Page 16: The Basic Features Of The Studioart App

    At low volume, our hearing perceives lower frequencies less intensively than medium or higher frequency ranges. This causes people to miss the bass range while listening to music at a low level. Revox has therefore developed a naturally adaptive bass correction, known colloquially as Loudness, which automatically corrects this phenomenon as a function of the volume control.

  • Page 17: Info-Setup

    New Version (Update) Revox is constantly working on product improvements. As soon as an update is available, this area will be displayed automatically. With the confirmation of the field UPDATE, you start the update process. With the help of the speech output of the A100 you will be informed about the update procedure.

  • Page 18: Connect / Disconnect Speakers

    Confirmation “OK” begins the 60-second pairing routine. Within this time another STUDIOART A100 or B100 Bass Module has to announce itself as a client. The procedure to register a STUDIOART loudspeaker as a client is described in the second main chapter of this manual.
  • Page 19 ... continue previous chapter Note: When the B100 is wirelessly connected with other STUDIOART products, the controls on the rear of the B100 bass module for “volume”, “crossover frequency” and “phase” are disabled. The settings are automatically set by the STUDIOART system. The gain and phase setting should be made at the listening position when the placement of the speakers is completed.

  • Page 20: Operation Studioart App

    Operation STUDIOART App Speaker / room selection first step, In the the STUDIOART loudspeaker or the associated room is selected by tapping on the corresponding line. Unless the speaker is participating in a multiroom group, the following 3 icons appear: Shuts down the A100.

  • Page 21: Source And Music Selection

    Source and music selection Selects the TIDAL music subscription service. TIDAL is natively integrated into the STUDIOART app, i.e. all functions are executed in the STUDIOART app. Selects the Deezer music subscription service. Deezer is natively integrated into the STUDIOART app, i.e. all functions are executed in the STUDIOART app. The Airplay icon is an indicator, not an active source.

  • Page 22: Faq

    Automatic switch-on does not work Possible causes: The level of the line input is too low. This can occur with music material with soft passages. If applicable, increase the input signal while reducing the volume. A100 Room Speaker STUDIOART...

  • Page 23: Technical Data A100

    Technical Data A100 Audio data Loudspeaker priniple Active bass reflex system Frequency response 52 -30000 Hz Electrical Data PowerSupple Voltage range 100 -240V AC [50-60 Hz] Power consumption max. 21 W Standby consumption < 0.9 Watt Auto switch-off 20 Minuten Dimensions Height 225 mm...
  • Page 24 Österreich / Austria Revox Handels GmbH Josef-Pirchl-Strasse 38, AT 6370 Kitzbühel tel +43 535 666 299, fax +43 535 666 299 4 info@revox.at www.revox.at Bedienungsanleitung Active 04 / Artikel-Nr 10.18.1504 E&EO Copyrigth by Revox Deutschland GmbH, Germany A100 Room Speaker STUDIOART...
