FT2-700-MECH Series
FlipTop™ FT2 Series, 700 Size, Mechanical

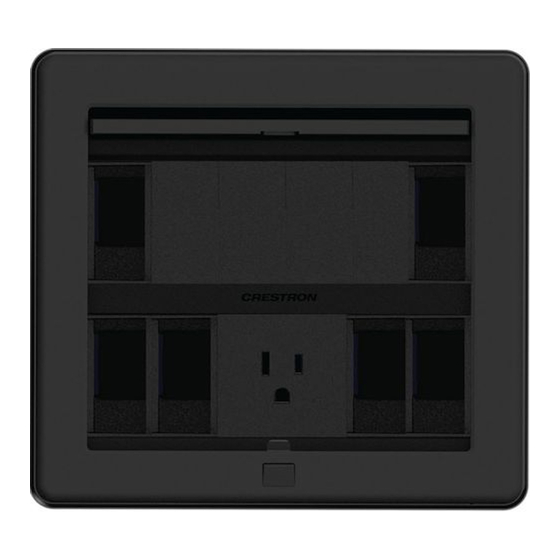

The Crestron® FT2-700-MECH, FT2-700-MECH-PTL,
FT2-700-MECH-AC, and the
FT2-700-MECH-ACUSB
management systems install into a table or other horizontal surface to
provide modular tabletop connectivity for users. The FT2-700-MECH
series feature a one touch lid that retracts fully and disappears with the
tap of a button. When the lid is retracted, 12 module slots are arranged in
two rows of six. The flexible modular design may also be customized with
an assortment of Crestron accessories. For more information about the
accessories, please visit www.crestron.com/Crestron-FlipTops.
The FT2-700-MECH-PTL offers an alternative pass-through lid style
which allows cables to be fully extended while the lid is closed.
The FT2-700-MECH-AC includes an FT2A-PWR-US-1-BASIC AC power
outlet module. Similarly, the FT2-700-MECH-ACUSB includes an
FT2A-PWR-US-1-BASIC and an FT2A-CHGR-USBA-BASIC USB rapid
charging module.
The FT2-700-MECH, FT2-700-MECH-PTL, FT2-700-MECH-AC, and the
FT2-700-MECH-ACUSB are all functionally similar. For simplicity within
this document, they are all referred to as the "FT2-700 assembly."
FlipTop™ cable
1
3
4
8
4
1
1
1
1
1
1
In the Box
FT2-700-MECH, FlipTop™ FT2 Series, 700 Size, Mechanical
Additional Items
Bars, Locking, with Screws (P/N 4528906)
Module, Blank Plate (P/N 2049602)
Module, Pass-Through Cable (P/N 4526880)
Spacer, Plastic, FT2-700 (P/N 2050568)
Template, Cutout (P/N 4527491)
FT2-700-MECH-AL, FT2-700-MECH-AC-A, and
FT2-700-MECH-ACUSB-A Only
Bezel, FT2-700, Alloy (P/N 4529321)
FT2-700-MECH-PTL-AL Only
Bezel, FT2-700, Pass-Through Lid, Alloy (P/N 4531563)
FT2-700-MECH-PTL-B Only
Bezel, FT2-700, Pass-Through Lid, Black (P/N 4531562)
FT2-700-MECH-B, FT2-700-MECH-AC-B, and
FT2-700-MECH-ACUSB-B Only
Bezel, FT2-700, Black (P/N 4529320)
FT2-700-MECH-AC-A, FT2-700-MECH-AC-B,
FT2-700-MECH-ACUSB-A, and FT2-700-MECH-ACUSB-B Only
FT2A-PWR-US-1-BASIC, AC Power Outlet Module
(P/N 6510522)
Quick Start
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crestron FT2-700-MECH Series
Summary of Contents for Crestron FT2-700-MECH Series
- Page 1 When the lid is retracted, 12 module slots are arranged in two rows of six. The flexible modular design may also be customized with Additional Items an assortment of Crestron accessories. For more information about the Bars, Locking, with Screws (P/N 4528906) accessories, please visit www.crestron.com/Crestron-FlipTops.
- Page 2 Quick Start FT2-700-MECH Series FlipTop™ FT2 Series, 700 Size, Mechanical FT2-700-MECH-ACUSB-A and FT2-700-MECH-ACUSB-B Only FT2A-CHGR-USBA-BASIC, USB Rapid Charging Module Mount the FlipTop Assembly (P/N 6510719) A mounting hole is required for an FT2-700-MECH installation. Use the Power Pack, Universal Wall Mount, 5 VDC, 5 A, 100-240 VAC included template to cut a new mounting hole for new installations.
- Page 3 Quick Start FT2-700-MECH Series FlipTop™ FT2 Series, 700 Size, Mechanical Replace the FT-600 FlipTop Assembly Secure the FlipTop Assembly An FT2-700 assembly may replace an FT-600 FlipTop assembly and use To secure the FT2-700 assembly to the table surface: the existing mounting hole. The FT-600 FlipTop assembly mounting hole is 1.
-
Page 4: Install The Modules
One empty module slot in the product documentation. For more information, refer to the specific FT2-700 assembly and one FT2-CBL-PT series or other interface cable product manual located at www.crestron.com/manuals. The following are required for installation. sections provide best practices and installation procedures for pass- through cable modules and blank plate modules. - Page 5 Quick Start FT2-700-MECH Series FlipTop™ FT2 Series, 700 Size, Mechanical Installing the Pass-Through Cable Module with Non-4K Cables The grommet is recommended to use with cables that are 10 mm or thinner. 1. Open the grommet. 2. Insert a cable into the grommet with the connector facing up toward the end user.
- Page 6 Quick Start FT2-700-MECH Series FlipTop™ FT2 Series, 700 Size, Mechanical Blank and Keystone Plate Modules 6. Attach the side plate to the module by snapping the plastic clips on the plate into the two slots on the module. NOTE: If the side plate must be removed, use a small, flat object (such as a flat-head screwdriver) to carefully pry the plastic clips on the side plate off of the module near the two slots.
-
Page 7: Install The Bezel
Quick Start FT2-700-MECH Series FlipTop™ FT2 Series, 700 Size, Mechanical Install the Locking Bars Install the Bezel Place the bezel onto the FT2-700 assembly so that the retractable lid fits 1. Position the locking bars so that the screws attached to the locking inside the bezel opening. - Page 8 Quick Start FT2-700-MECH Series FlipTop™ FT2 Series, 700 Size, Mechanical Operate the FlipTop Assembly Visit the Product Page To operate the FT2-700 assembly: Scan the QR code to visit the product page. 1. Tap the lid retraction button to retract the one-touch lid. The lid FT2-700-MECH disappears into the assembly.
- Page 9 Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. The product warranty can be found at www.crestron.com/warranty.
