8-Outlet Power Conditioner and Surge Protector

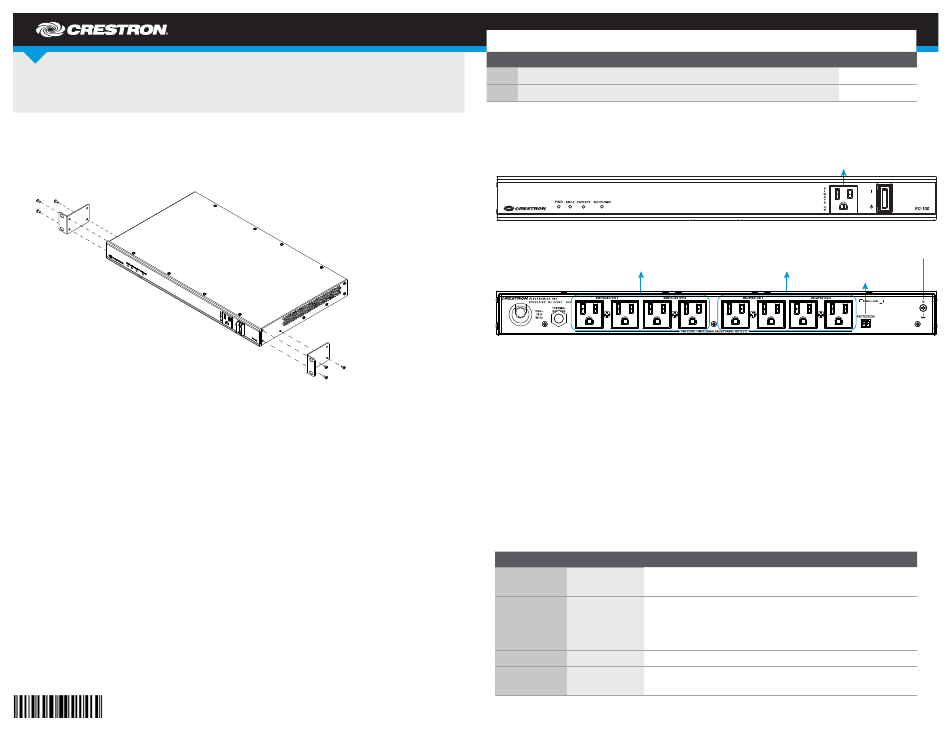

DO Install the Device
The Crestron PC-100 is designed to be rack mounted. The device occupies 1U of rack space.
®
Using a #1 or #2 Phillips screwdriver, attach the two included rack ears to the device, and then
mount the device into the rack using four mounting screws (not included).
DO Perform an Outlet Test
Before making connections to the PC-100, perform an outlet test to ensure that the outlet the
device is plugged into is properly wired:
1. Ensure that the front panel switch is turned off (moved to the down position) and that no
connections have been made to the device.
2. Plug the PC-100 into the outlet and wait until the PROTECT LED lights. (This process may take
several seconds.)
3. Verify that the FAULT LED is not lit. If the FAULT LED lights, then the connected outlet is
miswired. Do not make any connections to the device until the outlet is repaired and the
FAULT LED does not light when the device is plugged into the outlet.
DO Connect the Device
Make connections to the PC-100 using Crestron power supplies for Crestron equipment.
CAUTION: The front panel switch must be turned off (moved to the down position) before plugging
in the PC-100.
CAUTION: The PC-100 must be plugged into a circuit that has a 20-amp or a 15-amp circuit
breaker.
DO Check the Box
QTY PRODUCT
2 Bracket, Rack Ear, 1U
1 Connector, 2-Pin
Front Panel Connections
Rear Panel Connections
SWITCHED ON 1 and 2:
Switched ac outputs
NOTE: The front panel outlet is always on, independent of the front panel switch position.
This outlet is protected from surges and has EMI filtering. Even if the unit is out of voltage
range (93 to 135 volts), has incorrect wiring, or has failed surge protection, all eight rear panel
outlets turn off but the front outlet remains on. If this situation occurs, the yellow SHUTDOWN
LED lights and the PWR LED turns yellow.
NOTE: The rear panel outlets marked "SWITCHED ON" turn on immediately when the front
panel switch is turned on (moved to the up position). The outlets marked "DELAYED ON 1" turn
on one second after the front panel switch is turned on. The outlets marked "DELAYED ON 2"
turn on two seconds after the front panel switch is turned on.
NOTE: The 2-pin PROTECTION port on the rear panel is an isolated contact and has the pins
internally opened while all surge protection is active. The connection is closed when any surge
protection is compromised. This closure provides surge protection notification to a connected
control system.
NOTE: The front panel LEDs behave as follows:
LED COLOR FUNCTIONALITY
Amber: Power is present on ac cord.
PWR Amber/Green
Green: Switch is in ON position, and power is present.
One of the following is true:
- Surge protection is compromised.
FAULT Red
- No ground is detected.
- Line and neutral are reversed.
PROTECT Green All surge protection is functional.
An over- or undervoltage condition is causing the outputs
SHUTDOWN Amber/Green
to turn off.
COLOR PART NUM.
2032122
2003574
ALWAYS ON:
Unswitched ac output
DELAYED ON 1 and 2: PROTECTION: Ground
Switched ac outputs To alarm, light, or
logic input of a device
