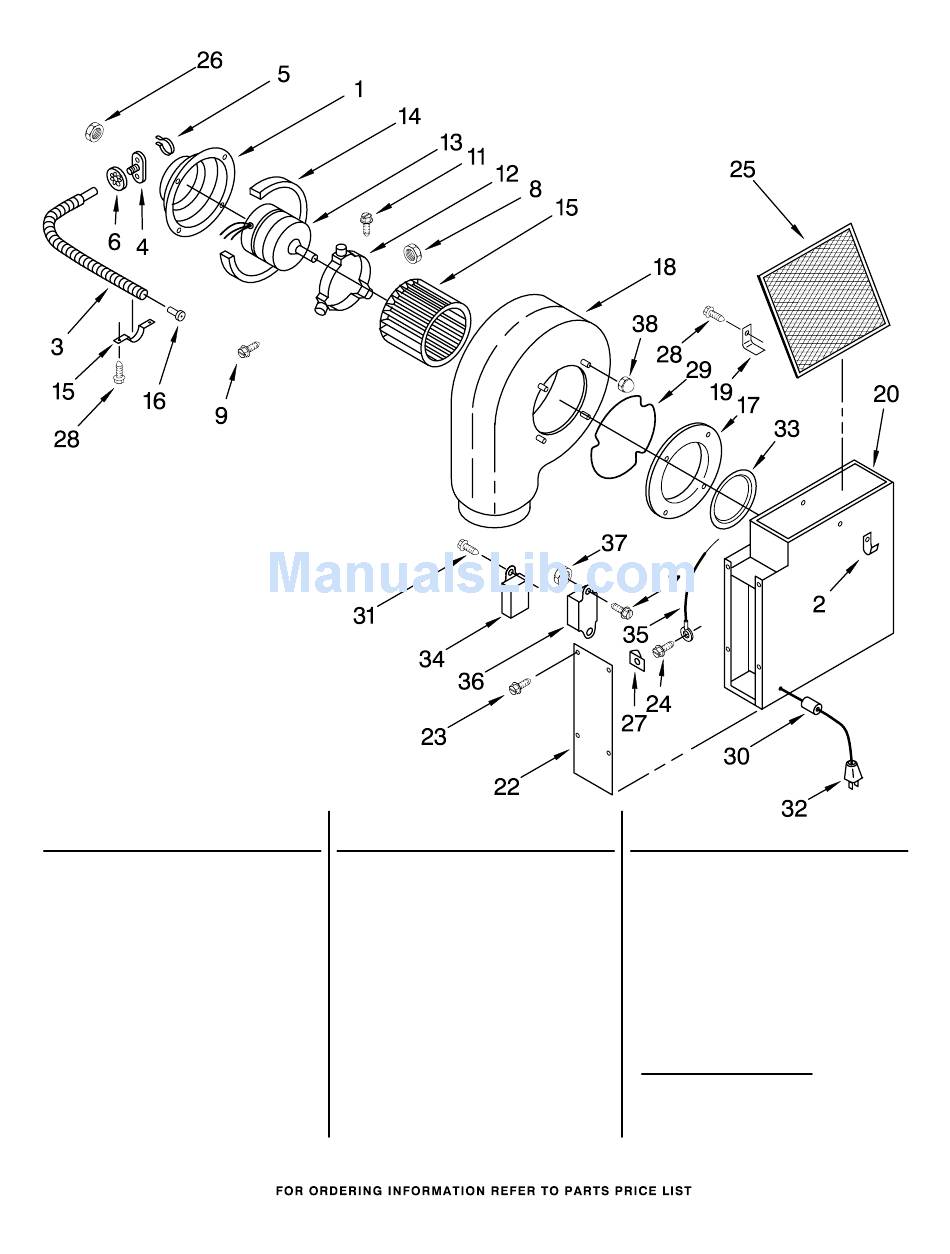

Blower Parts - Whirlpool SC8720EDB0 Parts List

Illus. Part
No. No. DESCRIPTION
1 4381688 Cover, Motor
2 4381689 Clip, Plenum
3 4381690 Conduit, Metal
4 4381691 Connector, Conduit
5 4381692 Clamp, Cable
6 4381693 Clip, Conduit
7 4381694 Screw, Mtg.
8 4381695 Nut, Band
9 4381696 Screw, Band
11 4381698 Screw, Spacer (3)
12 4381699 Band, Motor
13 4381700 Motor, Blower
14 4381701 Gasket, Foam
15 4381702 Wheel, Blower
4381689 Clip

BLOWER PARTS

For Model : SC8720EDB0, SC8720EDW0
(Black)
Illus. Part
No. No.
16 4381704 Bushing, Conduit
17 4381705 Ring, Inlet
18 4381706 Housing, Blower
19 4381707 Retainer, Filter
20 4381708 Plenum
22 4381709 Plate, Cover
23 4381710 Screw, Cover Plate
24 4381711 Screw, Ground
25 4381712 Filter, Grease
26 4381713 Locknut
27 4381714 Clip, Cover Plate
28 4381715 Screw, Plenum
29 4381716 Spring, Retainer
30 4381717 Relief, Strain
31 4381718 Screw, Relay (2)
(White)
Illus.
DESCRIPTION No.
32
33
34
35
36
37
38
LITERATURE PARTS
2
Part
No. DESCRIPTION
4381719 Cord, Power
4381720 Ring, Restrictor
4381721 Relay
4381722 Clip, "J" (2)
4381723 Wire, Ground
4381724 Module, Spark
4381725 Nut, Mtg.
4381726 Cap, Nut (4)
4381727 Connector (4)
4381728 Nut, Wire (4)
LIT4381592 Guide, Use & Care
LIT4381590 Instructions,
Installation
4381736
