9−97 LITHO IN U.S.A. (rmb)

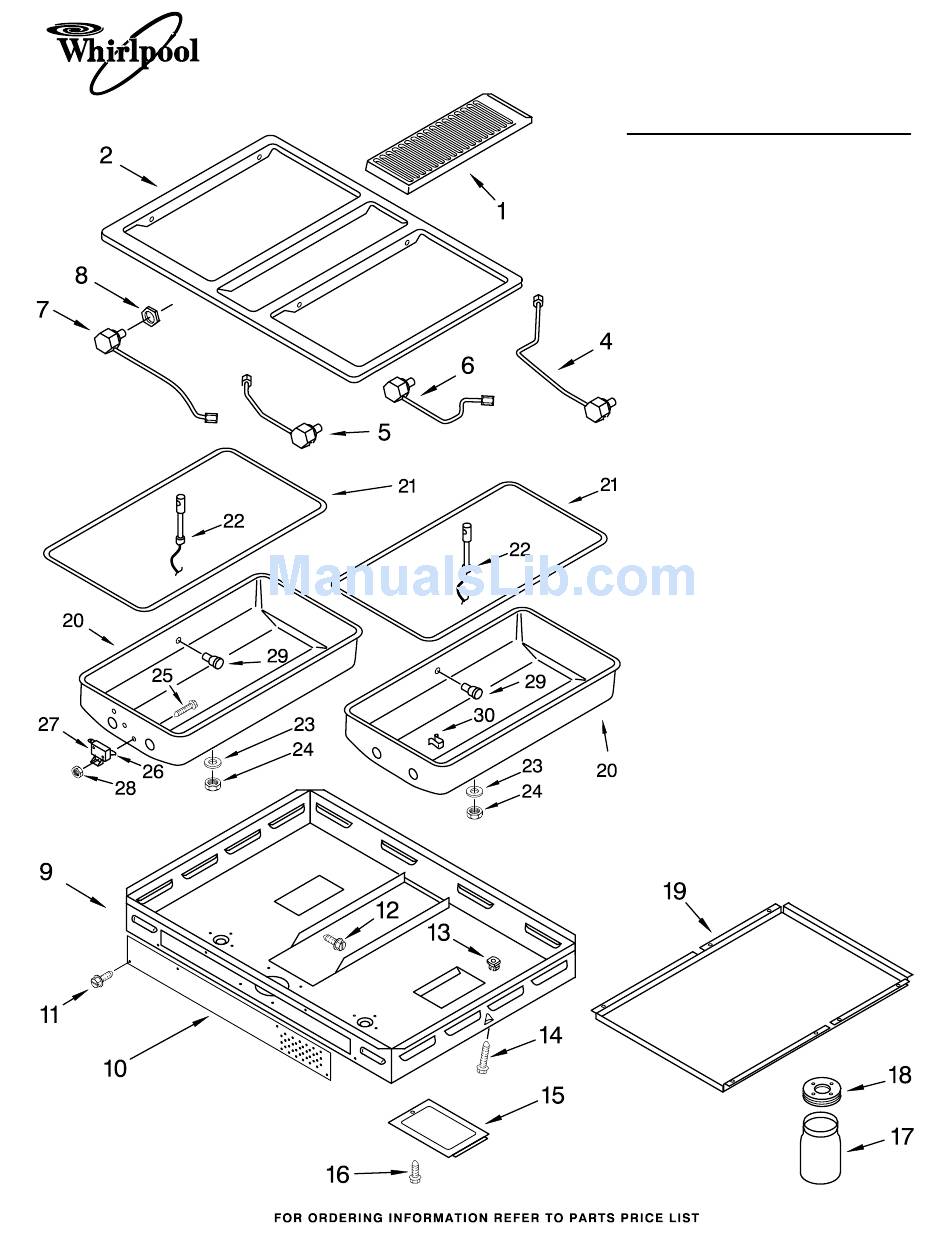

BODY PARTS
For Model : SC8720EDB0, SC8720EDW0
(Black)
(White)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
30" GAS CONVERTIBLE
DOWNDRAFT COOKTOP
Part
No.
DESCRIPTION
Cover, Vent
4381645 Black
4381646 White
Top, Main
4381639 Black
4381640 White
4381656 Nut, Pan (5)
4381668 Tube, Burner (RR)
4381669 Tube, Burner (RF)
4381678 Tube, Burner (LF)
4381677 Tube, Burner (LR)
4381734 Nut, Tubing (4)
4381667 Washer, Tubing (4)
4381665 Box, Burner
4381687 Cover, Front
4381679 Screw, Cover (4)
4381679 Screw, Support (6)
4381666 Nut, Hold Down
4381683 Screw, Hold Down
4381685 Cover, Access (RT)
4381679 Screw, Cover (4)
4381681 Jar, Grease
4381680 Lid, Jar
4381684 Baffle, Bottom(LT)
Pan, Module
4381655 Left
4381648 Right
4381654 Seal, Pan
4381661 Igniter, Spark
4381647 Lockwasher (2)
4381660 Nut, Jam (2)
4381649 Screw, Pan
4381662 Insulator, Switch
4381650 Switch, Micro
4381651 Washer (Teflon)
4381653 Nut, Switch (2)
4381657 Pin, Locator (3)
4381659 Clip, Pan (4)
Part No. 4381736 Rev. A
