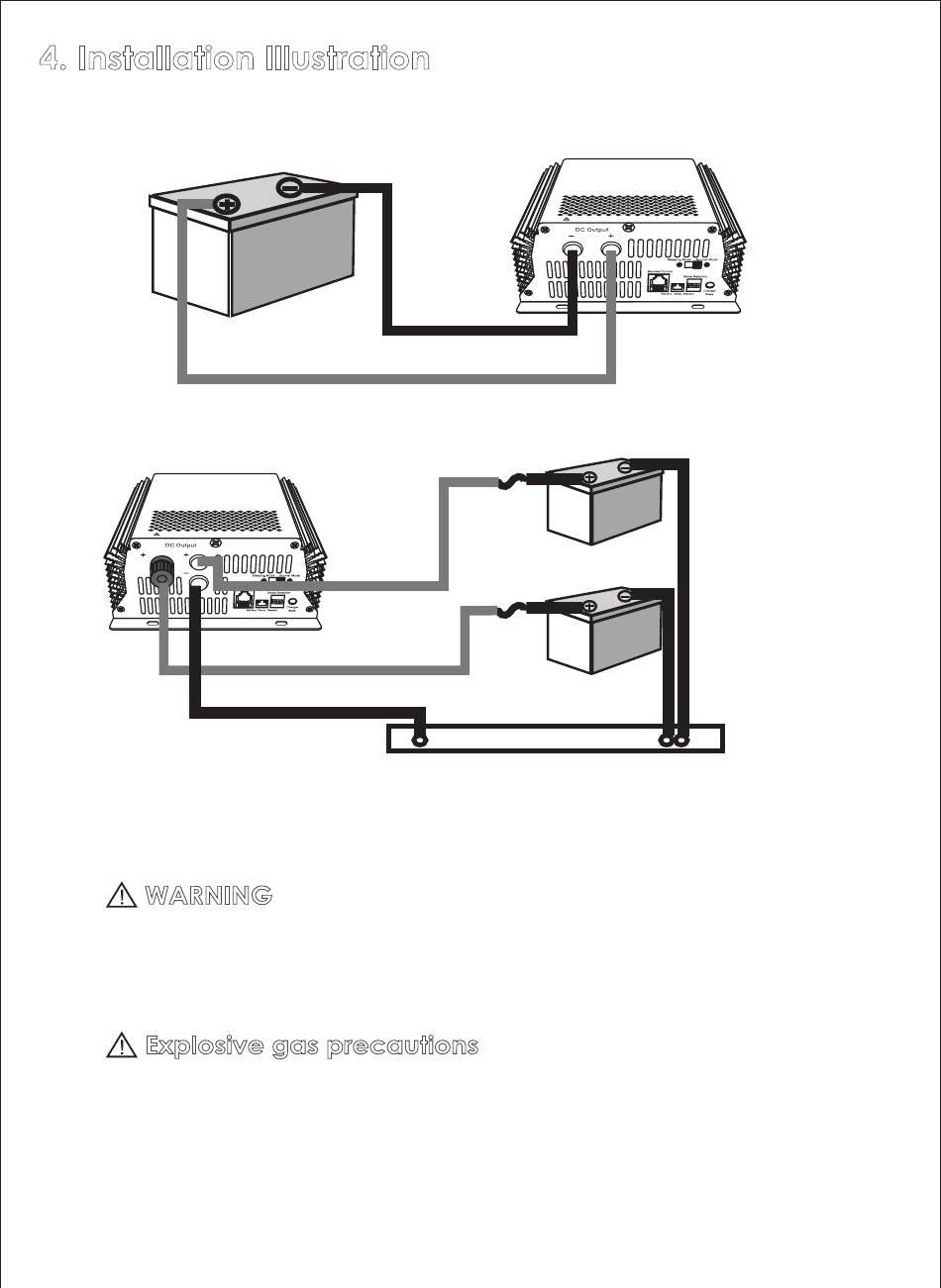

4. Installation Illustration

Before charging, read the instructions; for indoor use only. Disconnect the supply
before making or breaking the connections to the battery.
red (positive)
C-15L-12 ; C-7L-24 / C-15-14 ; C-7-24 / C-30-12 ; C-15-24
Warning : Don't reverse the (+) and (-) of the battery!
Or internal damage will result!
Note 5:
Please connect the main battery cable prior to 2nd battery terminal if you just have 1 battery.
WARNING
Explosive gases; Prevent flames and sparks; Provide adequate ventilation during
charging. Include a warning against recharging non-rechargeable batteries.
If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
Explosive gas precautions
(1). The chargers have been approved as Ignition Protected. They may be installed
in areas containing gasoline tanks and fittings which require Ignition Protected
equipment. It is safest not to install electrical equipment in these areas.
(2). To reduce the risk of battery explosion, follow these instructions and those
published by the battery manufacturer and the manufacturer of the equipment
in which the battery is installed.
r y
t t e
B a
red (positive)
red (positive)
black (negative)
C-60-12 ; C-30-24
Warning : Don't reverse the (+) and (-) of the battery!
Or internal damage will result!
black (negative)
DC Negative Bus
Main battery
(the red Cable)
r y
t t e
B a
( Note 5 )
2nd battery
r y
(the red terminal)
t t e
B a
