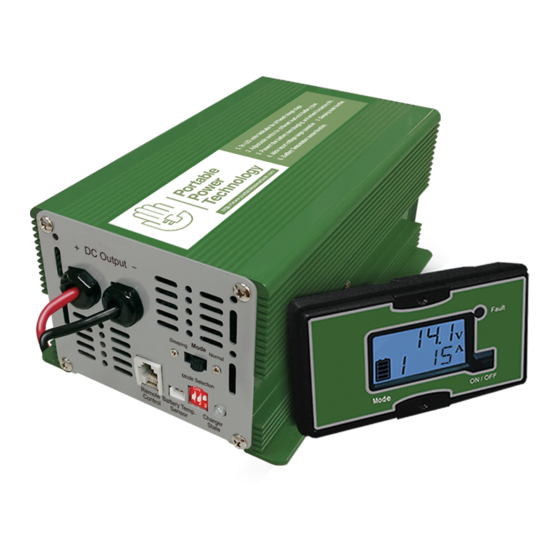

Multistage Battery Charger
C-15L-12
C-7L-24
C-15-12
C-7-24
． PFC function.
． Sleeping mode function.
． Wide input voltage (universal) range operation.
． LCD remote control.
． Battery temperature sensor function.
． Tri-LED color indicator for different charge stage.
． Adjustable charging mode switch for different lead-acid battery types.
． Prevent the battery overcharging, and extend the battery life.
． For recovery of the aging (sulfated) battery.
C-30-12
C-15-24
Design Features:
– except C-15L-12 / C-7L-24.
Us er Ma nual
C-60-12
C-30-24
– except C-15L-12 / C-7L-24 .
Advertisement
Table of Contents
Summary of Contents for Portable Power Technology C-15L-12
- Page 1 ． PFC function. – except C-15L-12 / C-7L-24. ． Sleeping mode function. ． Wide input voltage (universal) range operation. – except C-15L-12 / C-7L-24 . ． LCD remote control. ． Battery temperature sensor function. ． Tri-LED color indicator for different charge stage.
-
Page 2: Table Of Contents
List of contents Important Safety Instructions Where to install Overview Installation Illustration Charging volt graph Charger LCD Remote Control C-15L-12 / C-7L-24 specification C-15-12 / C-7-24 specification C-30-12 / C-15-24 specification C-60-12 / C-30-24 specification Charging Formula... -
Page 3: Important Safety Instructions
1. Important Safety Instructions Before installing and using the charger, read all instructions and cautionary markings on the charger, the batteries, and all appropriate sections of this guide. General Safety Precaution: A. Do not expose the charger to rain, snow, spray, or bilge water. To reduce risk of fire hazard, do not cover or obstruct the ventilation openings. -
Page 4: Where To Install
2. Installation Location: Physical requirements for installation IMPORTANT This product is best mounted in a Horizontal position. If the unit is mounted in a vertical position, The cooling fan must be at the bottom of the unit. Condition Description Do not expose the charger to metal filings or any other form Clean of conductive contamination. -
Page 5: Overview
A. Product Introduction Warning: Damage caused by wrong positive (+) and negative (-) connection is not covered by the warranty. C-15L-12 ; C-7L-24 / C-15-12 ; C-7-24 / C-30-12 ; C-15-24 Warning : Don't reverse the (+) and (-) of the... - Page 6 Note 3: Warning : Don't reverse the (+) and (-) of the battery! Or internal damage will result! ※Note 3 t t e black Battery Temp. Sensor: To detect the battery temp. While charging, please connect the wire sensor to the battery Negative (-) terminal. When the battery (-) pole temp.
-
Page 7: Installation Illustration
Or internal damage will result! t t e black (negative) red (positive) C-15L-12 ; C-7L-24 / C-15-14 ; C-7-24 / C-30-12 ; C-15-24 Main battery (the red Cable) t t e Warning : Don't reverse the (+) and (-) of the battery! -
Page 8: Charging Volt Graph
5. Charging volt graph (0:OFF Mode 1 Suitable for re-charging (100) lead storage battery. 1 2 3 standby Mode 2 Suitable for re-charging orange orange green (120) gel battery. LED color 1 2 3 Suitable for re-charging lead storage battery, which is in good condition battery (no any sulfated situation),and completely disconnected from the devices... -
Page 9: Charger Lcd Remote Control
6. Charger LCD Remote Control : fault indicator Fault Fault Mode Mode ON / OFF ON / OFF 2. Mode 1 ~ 5, no battery connected. 1. OFF battery volt Fault Fault Mode Mode ON / OFF ON / OFF battery capacity ON/OFF switch charging mode... -
Page 10: C-15L-12 / C-7L-24 Specification
C-15L-12 / C-7L-24 specification M o d e l C-15L-12 C-7L-24 INPUT Voltage range 120Vac (100~130Vac) / 230Vac (180~240Vac). Frequency range 45 ~ 65Hz Efficiency >=85% Power factor 0.5 at full load (±5％) Input socket IEC plug OUTPUT Mode Selection... -
Page 11: C-15-12 / C-7-24 Specification
C-15-12 / C-7-24 specification C-15-12 C-7-24 M o d e l INPUT Voltage range 100~240Vac Frequency range 45 ~ 65Hz Efficiency >=85% Power factor 1.0 at full load (+/-5%) Input socket IEC plug OUTPUT Mode Selection Mode 1 Mode 2 Mode 3 Mode 4 Mode 5... -
Page 12: C-30-12 / C-15-24 Specification
C-30-12 / C-15-24 specification Model C-15-24 C-30-12 INPUT Voltage range 100 ~ 240VAC Frequency range 45 ~ 65Hz Efficiency >=85% Power factor 1.0 at full load (+/-5%) Input socket IEC plug OUTPUT Mode Selection Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6... -
Page 13: C-60-12 / C-30-24 Specification
C-60-12 / C-30-24 specification Model C-60-12 C-30-24 INPUT 100 ~ 240VAC Voltage range Frequency range 45 ~ 65Hz Efficiency >=85% Power factor 1.0 at full load (+/-5%) Input socket IEC plug OUTPUT Mode Selection Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6... -
Page 14: Charging Formula
Typical charging efficiency forlead-acid batteries A Group size battery rated at 100 amp-hours is 40% discharged, that is, Example it has a DOD = 40. Charging time with a C-15L-12 unit is calculated as follows: 100Ah x 40% Charging time = = 3.3 hours...
