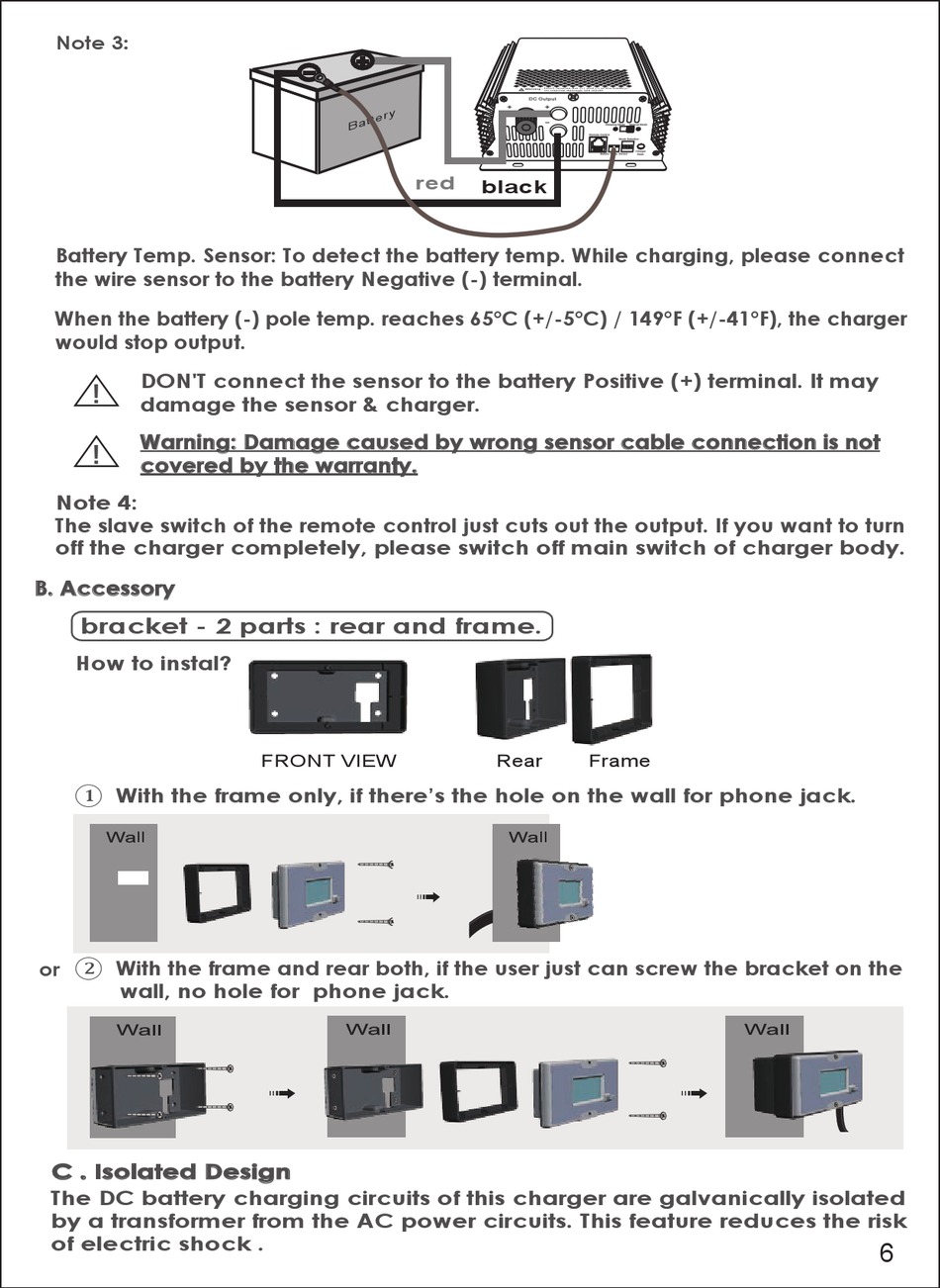

Note 3:
Battery Temp. Sensor: To detect the battery temp. While charging, please connect
the wire sensor to the battery Negative (-) terminal.
When the battery (-) pole temp. reaches 65°C (+/-5°C) / 149°F (+/-41°F), the charger
would stop output.
DON'T connect the sensor to the battery Positive (+) terminal. It may
damage the sensor & charger.
Warning: Damage caused by wrong sensor cable connection is not
covered by the warranty.
Note 4:
The slave switch of the remote control just cuts out the output. If you want to turn
off the charger completely, please switch off main switch of charger body.
B. Accessory
bracket - 2 parts : rear and frame.
How to instal?
① With the frame only, if there's the hole on the wall for phone jack.
② With the frame and rear both, if the user just can screw the bracket on the
or
wall, no hole for phone jack.
C . Isolated Design
The DC battery charging circuits of this charger are galvanically isolated
by a transformer from the AC power circuits. This feature reduces the risk
of electric shock .
r y
t t e
B a
red
FRONT VIEW
Warning : Don't reverse the (+) and (-) of the battery!
Or internal damage will result!
※Note 3
black
Rear
Frame
6
