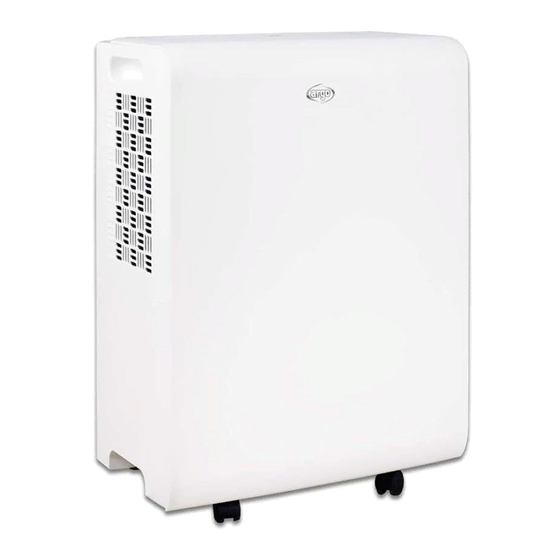

Argo DRY PURY 25 Operating Instructions Manual

Hide thumbs Also See for DRY PURY 25:
Table of Contents

Advertisement

Quick Links

EN
DEHUMIDIFIER
DRY PURY 25
OPERATING INSTRUCTIONS
Read the instructions carefully before operating or servicing the dehumidifier.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage.
Keep these instructions in a safe place for future reference.
V 07/20
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRY PURY 25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argo DRY PURY 25

Summary of Contents for Argo DRY PURY 25

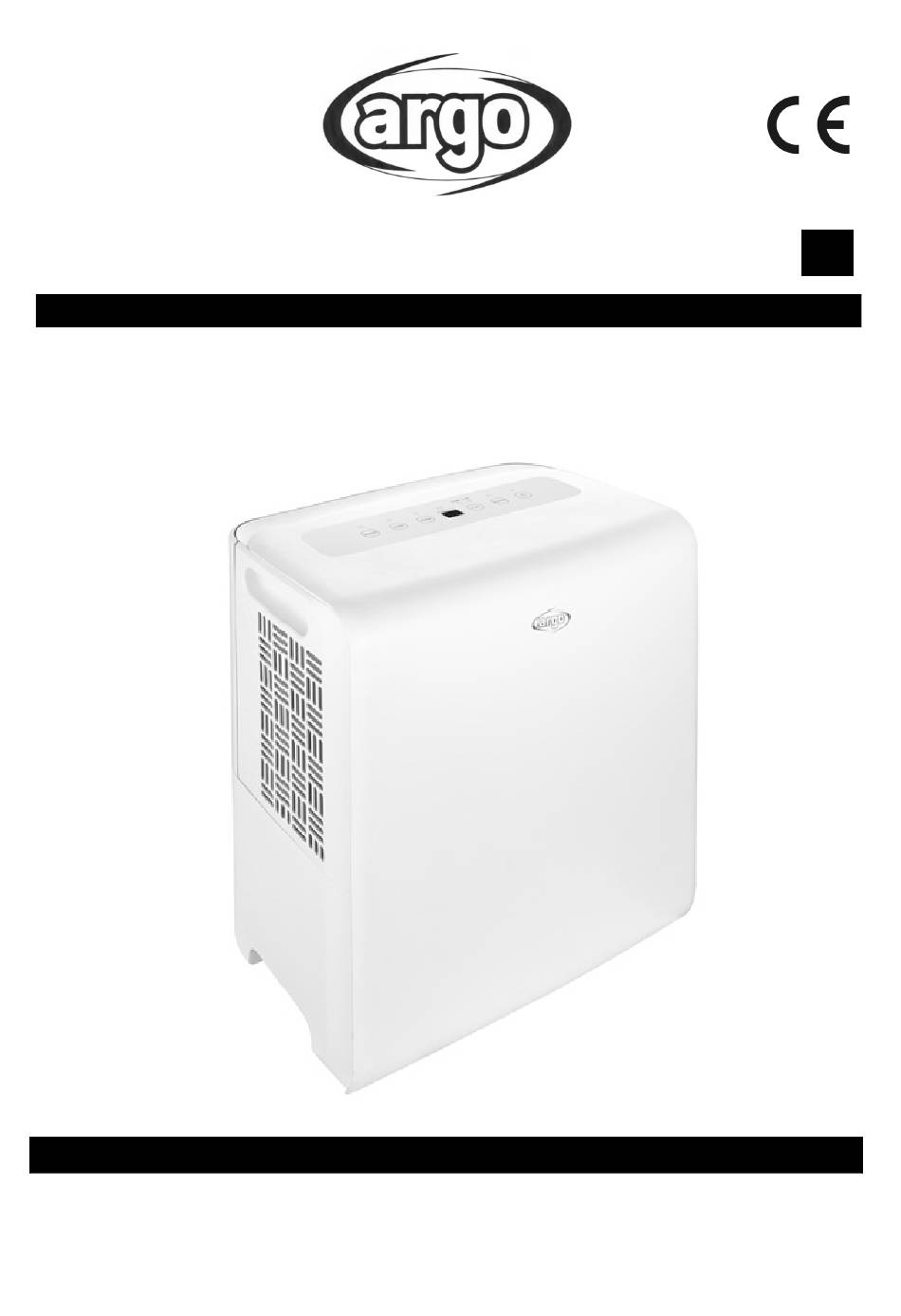

  • Page 1 DEHUMIDIFIER DRY PURY 25 OPERATING INSTRUCTIONS Read the instructions carefully before operating or servicing the dehumidifier. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Keep these instructions in a safe place for future reference.
  • Page 2 Appliance filled with flammable gas R290. Before installing and using the appliance, read the owner’s manual. Before install the appliance, read the installation manual. Before repair the appliance, read the service manual. The Refrigerant R290  To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
  • Page 3 Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons. Damage the product due to improper use or misuse of the product; Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of manufacturer;...
  • Page 4 GENERAL OPERATING AND SAFETY INSTRUCTIONS  This appliance is a highly efficient dehumidifier, designed for domestic use only!  Use this dehumidifier only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or malfunctions. ...
  • Page 5  To disconnect the appliance, set the switch to OFF and remove the plug from the socket. Only pull on the plug. Do not pull the cord.  Do not bend, drag or twist the cord, or apply force to remove it. Do not operate the unit if its cable or plug are damaged;...

  • Page 6: Description Of Parts

     Do not use the appliance in the bathroom or laundry room.  Keep the appliance well away from sources of heat which could cause plastic parts to become warped.  Do not spray insecticides, oils or paints near the appliance; doing so may damage its plastic parts or start a fire.

  • Page 7: Appliance Start-Up

    PRE-OPERATING CHECKS AND OPERATIONS Before operating the appliance, check the correct positioning of the float inside the condensate collection tank. Remove the tank following the direction of the arrow. Remove from the tank the bubble plastic bag which contains the 4 wheels and the cable reel Reposition the tank, closing it perfectly, as shown below Check that the float inside the tank for collecting the condensate is correctly positioned.

  • Page 8: Operating Precautions

    Green filter - Catechin filter natural substance extracted from tea, eliminates odors and pollutants Gray filter - Silver ion filter, eliminates bacteria Blue filter - Additional filter with anti-bacterial action The dehumidifier is equipped with a signaling system for the need to clean the dust filter after 250 hours of operation (AIR CLEAN SYSTEM).
  • Page 9 Carefully remove the tank and following the direction of the arrow, paying attention to not spill out the water from the tank and then splash onto the floor. Empty the tank. Reposition the tank following the direction of the arrow. N.B.
  • Page 10 Rubber plug Adaptor The height of the drainage hose must not exceed that of the hole: do not block the drainage hose exit. When disconnecting the tube, prepare a container to collect the remaining water from the tube. Basin V 07/20...

  • Page 11: Control Panel

    CONTROL PANEL Water tank FULL light Filter cleaning indicator High fan speed Timer indicator Low fan speed 6. Auto Button 4. Timer Button 3. Fan Button 1. Power Button 5. Filter Button Display 2. Humidity Button Each time the button is pressed, the unit emits an auditory signal. BUTTONS &...

  • Page 12: Cleaning The Water Tank

    We recommend not using the dehumidifier in room temperatures lower than 5°C. MEMORY FUNCTION: the dehumidifier starts up again after a power failure keeping last settings. AUTOSTOP FUNCTION: if the humidity it’s lower than 5% respect to the one set by the humidifier automatically it stop. CLEANING AND MAINTENANCE MAINTENANCE OF THE HUMIDIFIER’S EXTERIOR SURFACE Warning...
  • Page 13 Do not dry the filter with a heat source or with a hairdryer, it could catch fire. Use a vacuum cleaner with the lowest possible power to avoid damaging the fibers. It is advisable to clean the filter every 3 months or more frequently, depending on the frequency of use, for a maximum of 4 cleaning cycles, then it must be replaced.
  • Page 14 Due to the temperature difference of the heat On departure, the air may smell exchanger, the air can have a strange smell on musty departure. The dehumidifier may emit noise if placed on a The appliance emits noise wooden floor If the noise seems like a hiss, it is normal, it is the refrigerant that circulates in the appliance There is water in the tank even...
  • Page 15 REGULATION (EU) N. 517/2014 - F-GAS The unit contains R290, a natural greenhouse gas with global warming potential (GWP) = 3 DRY PURY 25: Kg. 0,075 = 0,000225 Tonn CO equiv. Do not release R290 into the atmosphere. INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2012/19/EU This appliance may not be scrapped with domestic waste at the end of its life cycle.

Table of Contents
