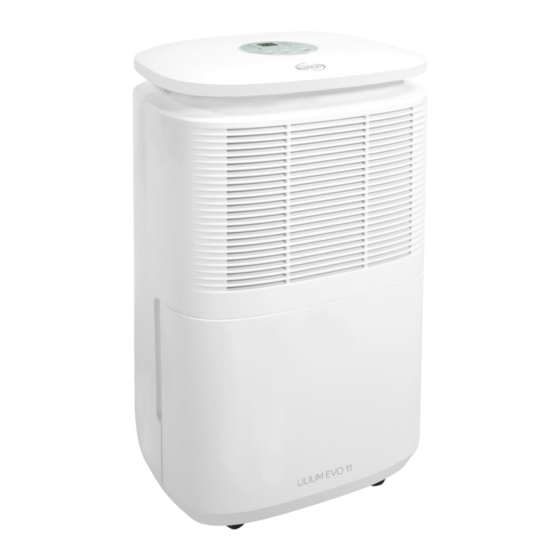

Argo LILIUM EVO 11 Operating Instructions Manual

Hide thumbs Also See for LILIUM EVO 11:

Advertisement

Table of Contents

EN
DEHUMIDIFIER
LILIUM EVO 11 – LILIUM EVO 13
OPERATING INSTRUCTIONS
Read the instructions carefully before operating or servicing the dehumidifier.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage.
Keep these instructions in a safe place for future reference.
V 11/18
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LILIUM EVO 11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argo LILIUM EVO 11

Summary of Contents for Argo LILIUM EVO 11

  • Page 1 DEHUMIDIFIER LILIUM EVO 11 – LILIUM EVO 13 OPERATING INSTRUCTIONS Read the instructions carefully before operating or servicing the dehumidifier. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Keep these instructions in a safe place for future reference.
  • Page 2 The Refrigerant R290 • To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The refrigerant is the fluoride R290 = 3 GWP (Global warming potential). This refrigerant is flammable and inodorous. It can lead to explosions under certain conditions, however the flammability of this refrigerant is very low and it can be ignited only by fire.
  • Page 3 GENERAL OPERATING AND SAFETY INSTRUCTIONS • This appliance is a highly efficient dehumidifier, designed for domestic use only! • Use this dehumidifier only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or malfunctions. •...
  • Page 4 • Do not bend, drag or twist the cord, or apply force to remove it. Do not operate the unit if its cable or plug are damaged; doing so can cause fires or electric shock. If the power cord is damaged, it must be replaced by a service centre.

  • Page 5: Description Of Parts

    Do not move the appliance while it is operating; doing so can • cause leaks and malfunction. DESCRIPTION OF PARTS FRONT VIEW REAR VIEW The following space must be maintained to ensure the operating efficiency of the dehumidifier. Air outlet V 11/18...

  • Page 6: Appliance Start-Up

    OPERATING INSTRUCTIONS APPLIANCE START-UP Place the product on a flat and stable heat-resistant surface, at least 1 metre away from flammable or heat-sensitive materials and 50 cm away from walls or other obstructions. Make sure the water tank is in the correct position. Connect the power cord to a suitable electric socket (220-240V/50Hz).
  • Page 7 CONTINUOUS CONDENSATE DRAINAGE You can fit a 17 mm internal diameter PVC hose, a 19 mm outer diameter and a 30cm lengh hose to drain the tank continuous (included). Turn off the appliance and remove the plug before connecting the hose. Remove the drain hole cap and connect a PVC hose (supplied) to the drain hole.

  • Page 8: Control Panel

    CONTROL PANEL DISPLAY LED TIMER OPERATION LED LED TANK FULL LED DEFROST LED CHILD LOCK HIGH-LOW FAN (2) MODE BUTTON SPEED LED (4) FAN BUTTON “+” AND “-“ BUTTON (1) ON/OFF BUTTON (5) TIMER BUTTON BUTTONS (1) ON/OFF BUTTON Press this button to turn the dehumidifier on and off. (2) MODE BUTTON Press this button to enter the mode selection state: the corresponding led will light on.
  • Page 9 DISPLAY Shows the relative humidity setting. TIMER LED Shows the timer setting. TANK FULL LED When the tank is full, the TANK FULL LED lights on and the dehumidifier stops running. A 10 second beep sounds. Remove the tank and empty it (as indicated in "HOW TO ELIMINATE CONDENSATION"), then restore it; the dehumidifier will start running again.

  • Page 10: Cleaning The Water Tank

    CLEANING AND MAINTENANCE MAINTENANCE OF THE HUMIDIFIER’S EXTERIOR SURFACE Warning Always pull the dehumidifier's plug out of the power socket before cleaning it, to prevent electric shock and malfunction. Warning Do not wet the appliance or immerse it in water, otherwise electric shocks may occur. Use a damp and soft cloth to clean the exterior surface of the dehumidifier.
  • Page 11 TROUBLESHOOTING PROBLEM POTENTIAL CAUSE SOLUTION The dehumidifier is not working. The temperature is above 32 ° C or below 5 It is not possible to adjust the settings. °C. The internal tank is full. Empty the tank The tank is not positioned correctly. Position the tank correctly The set humidity level is higher than that in the room.
  • Page 12 When the water tank is full, the FULL indicator led is on for reminding. REGULATION (EU) N. 517/2014 - F-GAS LILIUM EVO 11 The unit contains R290, a natural greenhouse gas with global warming potential (GWP) = 3 - Kg. 0.035 = 0.000105 Tons CO equiv.

This manual is also suitable for:

Lilium evo 13
