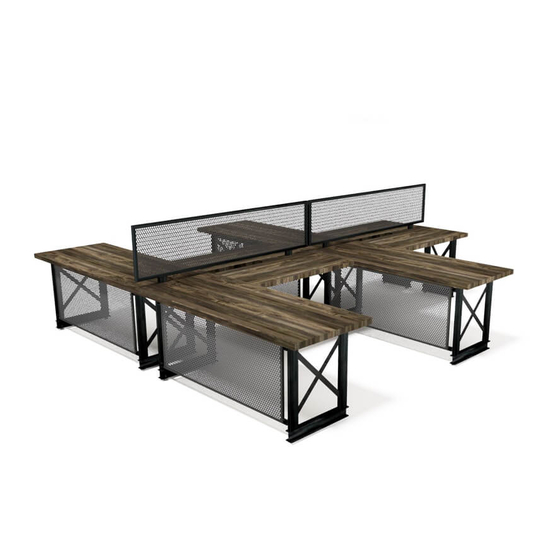

IA CUBE 4 PERSON
L-SHAPE WORKSTATION
Assembly Instructions
any wooden tops over and inspect the bottom sides for markings.
Thank you for your purchase!
Iron Age Office furniture is uniquely and individually
fabricated. For this reason, your furniture is pre-assembled
and labeled before shipping. Labels are marked on the
underside of the furniture. Most furniture is then
deconstructed prior to shipping. Pieces that uniquely
correspond can typically be found on the same pallet.
Assembly is best completed by keeping the pieces that
correspond together. Clear your work area of anything that
could scratch furniture surfaces. If possible, cover your
work area with a clean, soft blanket. Carefully flip
Match legs, flat brackets, etc.
to the appropriate labels.
If you need further assistance of any kind,
Iron Age Office Operations Manager
678-725-1473 (c)
hd@ironageoffice.com
please contact:
Henry Dover
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Iron Age Office IA CUBE 4 PERSON
Summary of Contents for Iron Age Office IA CUBE 4 PERSON
- Page 1 L-SHAPE WORKSTATION Assembly Instructions Thank you for your purchase! Iron Age Office furniture is uniquely and individually fabricated. For this reason, your furniture is pre-assembled and labeled before shipping. Labels are marked on the underside of the furniture. Most furniture is then deconstructed prior to shipping.
-
Page 2: Tools Required
HARDWARE Screws are shown actual size. You may receive extra hardware with your unit. Tools Required #3 Square Drive 14-10 LAG BOLT QTY: 84 LEVELING FOOT QTY: 34 9/16 Crescent Wrench 3/8-16 BOLT 7/32 Hex Drive QTY: 26... - Page 3 PARTS CORNER BRACKET LEFT LEG CENTER SPINE WALL T-BRACKET RIGHT LEG CENTER SPINE WALL CROSS BRACKET LEFT LEG FIRST MAIN TOP SPLICE PLATE RIGHT LEG SECOND MAIN TOP SPLICE PLATE FRONT WALL LEFT THIRD MAIN TOP SPLICE PLATE FOURTH MAIN TOP FRONT WALL RIGHT SPLICE PLATE FIRST RETURN TOP...
- Page 4 ASSEMBLY STEP 1 Screw in leveling feet to bottoms of all walls. Screw in leveling feet into walls with 9/16 crescent wrench. STEP 2 Flip A (right wall) to an upright position. Secure a T-bracket to the top of wall with a 3/8-16 bolt.
- Page 5 ASSEMBLY STEP 4 Flip B wall to an upright position. Align to joined A walls and secure to shared T-bracket with a 3/8-16 bolt (like steps 2 and 3). Secure bottom of walls with corner brackets in both corners of the connection using 3/8-16 bolts.
- Page 6 ASSEMBLY STEP 7 Flip A-3 walls to an upright position. Align to B wall and secure to shared T-bracket with 3/8-16 bolts (like steps 2 through 4). Secure bottom of walls with corner brackets in both corners of the connection using 3/8-16 bolts. STEP 8 Place main tops face down.
- Page 7 ASSEMBLY STEP 9 Align legs to tops. Secure with (5) 14-10 lag bolts in each leg. Screw in (5) 14-10 Lag bolts in each leg using a #3 square drive. STEP 10 Align splice plates to both main tops using markings on the tops. Secure to tops with 14-10 lag bolts.
- Page 8 ASSEMBLY STEP 11 Screw in (2) leveling feet in each leg. Screw in leveling feet into each leg with a 9/16 crescent wrench. STEP 12 Flip main tops to an upright position and align to A, A-2 and B walls. Secure to angle mounts with 14-10 lag bolts on the underside of desks.
-
Page 9: Care Instructions
YouTube.com Search Term: Magnetic Trough Assembly CARE INSTRUCTIONS To care for either wooden or metal surfaces of Iron Age Office products, gently wipe with a soft cloth dampened with water and a mild dishwashing liquid. Once satisfied, dry with a soft cloth.
