OctoDome® Multi Instructions
Figure 1.
Figure 3.
Figure 5.
Figure 7.
Figure 9.
For detailed specifications, product tutorials and more, please visit www.photoflex.com
|
Figure 2.
Figure 4.
Figure 6.
Figure 8.
Item #'s:
870358 (FV-MOD3), 870361 (FV-MOD5), 870364 (FV-MOD7)

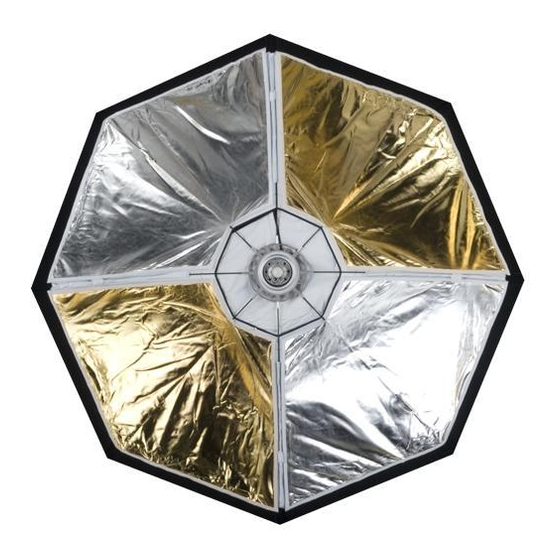

OctoDome Multi —
Before assembling your OctoDome softbox, make sure all components
are present. You will need:
• OctoDome softbox
• Photoflex OctoConnector (to fit your strobe light - sold separately)
• Eight rods
• Outer rear cowling patch
• Inner rear cowling Velcro® Insert
• Inner baffle
• Face diffuser
• Set of 4 Gold/Silver Panel Inserts
Note: In most cases, the softbox connector is designed to connect with
your light head in the same manner as your light head's
accessories. If using a strobe light, make sure your OctoConnector
is the correct one designed for your light.
Assemble the Softbox to the Connector
1. Place softbox face down on a flat, clean surface.
2. The connector has nine rod receptacle holes, three of which
are tapped. Current model OctoConnectors use circle icons (
for OctoDomes and squares icons (
Use the circle icons for your Octodome.
3. Position connector at the center of the softbox. The connector
front (with the rounded screw heads) Fig. 3 should face away
from the softbox and the connector back (with the bolt nuts)
should face into the softbox.
Inserting Rods into the Connector
Note: Each corner of the connector has a rod receptacle hole. Some of
the holes are tapped but will be used.
4. Insert the first rod.
5. Insert the second rod into the hole diagonally opposite the
first hole.
6. Insert the third rod through the eighth rods
Attaching the Rear Cowling Patch
Note: There are two rear patch components
7. Line up the Velcro of the Gold/Silver inner patch with the
corresponding Velcro of the outer patch interior.
8. Position the rear patch assembly over the corresponding Velcro
on the rear of the OctoDome.
9. Press the cowling assembly in place around the rear of
the softbox.
For Strobes or Cool Lights
) for rectangular Softboxes.
)
