StarLite QL

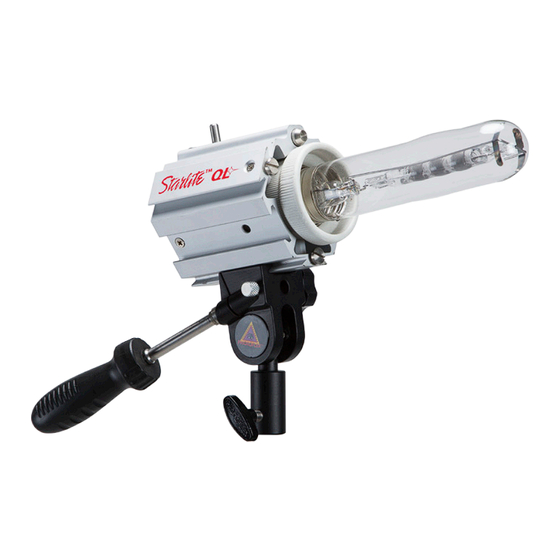

The StarLite QL features a quick locking design for quick secure set up
and tear down.
The StarLite QL comes with:
• StarLite QL LampFixture
• Swivel Stand Mount
• Power cord with 20 amp industrial switch
Note: Lamps for the Starlite are sold separately, available in 120 and
220 voltage at 500 or 1000 watts with a mogul base size to match
the Starlite. A step-down adapter to convert the mogul base to a
standard Edison base is available and the part number is FV-SKT.

Safety Precautions

• The StarLite is designed for use with a high heat resistant SoftBox
such as the Photoflex SilverDome
MovieDome . Be sure the SoftBox you are using is rated for use
®
with hot lights as you could create a hazardous situation.
• Do not operate the StarLite QL in moist or wet conditions as this
will create a hazardous situation.
• Always turn off power and unplug the power cable before
changing lamps.
NOTE: We recommend that you assemble the SoftBox to the StarLite
OctoConnector. For instructions on assembly of your particular
SoftBox, refer to the instructions included with your SoftBox or
go to www.Photoflex.com for further details.

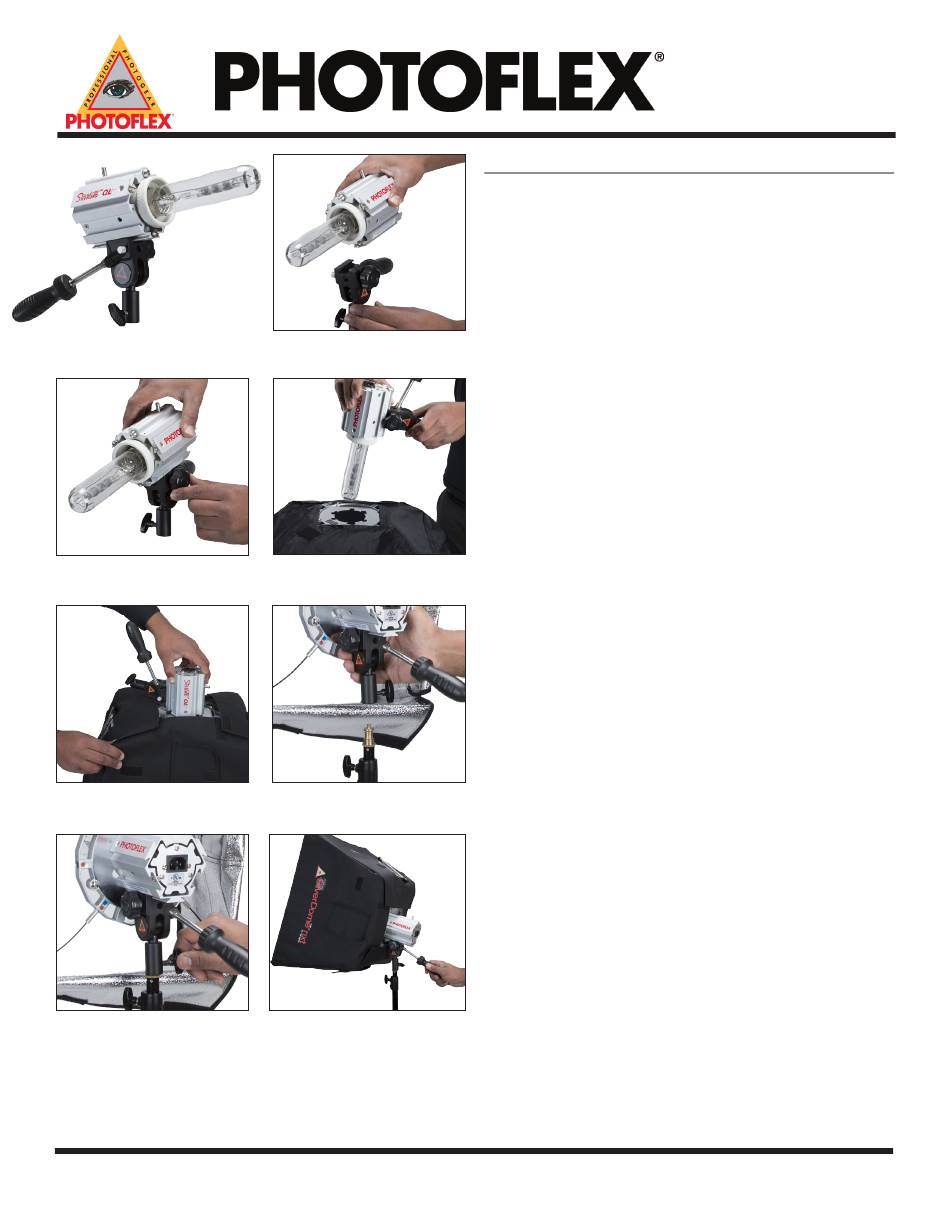

Assembly of the StarLite Head to the Swivel Stand Mount

1. Slide the bottom of the StarLite
of the swivel stand mount.
2. Securely tighten the set screw on the swivel to lock it in place.
Locking the StarLite Head and Swivel Assembly to the StarLite
OctoConnector
3. With the SoftBox assembled and face down on a clean flat
surface; place the StarLite head over the connector, matching
the three metal posts on the head with the three corresponding
key holes.
4. Insert the StarLite head into the SoftBox connector and turn the
head clockwise to lock it in place.
Note: The locking pin will click into place through the plate, confirming
you have the unit correctly assembled together.
Placing the StarLite & SoftBox Assembly Onto Your LiteStand
5. With the StarLite head securely attached to the Swivel and the
SoftBox, lift the assembly and place the 5/8 inch receiver over the
top stud of your LiteStand
6. Set the receiver onto the stud making sure that it drops all the
way down and then tighten the set screw to properly secure it.
7. Make sure that the twist lock handle is tightened securely to
prevent unwanted tilt before letting go of the assembly on
the LiteStand.
.com
®
NXT, OctoDome NXT or
® ®
head onto the receiving channel
®
