Photoflex MultiDome Series Instructions

MultiDome Family Instructions | Items: 870601 (MD-2M293) and 870604 (MD-3L293)
Figure 1.
Figure 3.
Figure 5.
Figure 7.
Figure 9.
For detailed specifications, product tutorials and more, please visit www.photoflex.com
Figure 2.
Figure 4.
Figure 6.
Figure 8.

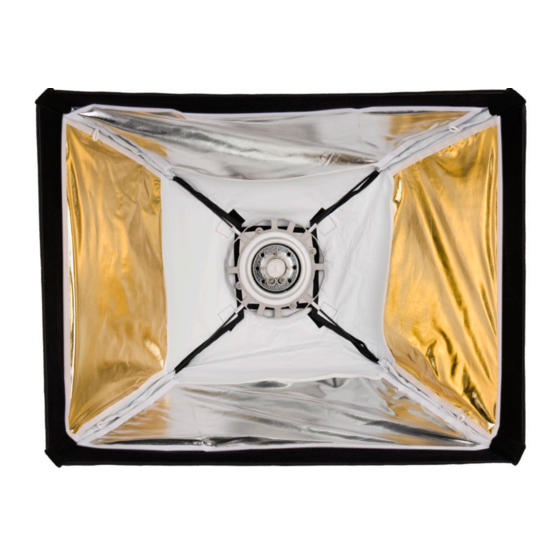

MultiDome
Before assembling your MultiDome softbox, make sure all components
are present. You will need:
• MultiDome softbox
• Circle Face Mask
• Connector for your specific light (not included)
• Four rods
• Inner baffle (medium, large, and x-large only)
• Front diffuser
• Set of two Silver/Gold reversible panels for short sides
• Set of two Silver/Gold reversible panels for long sides

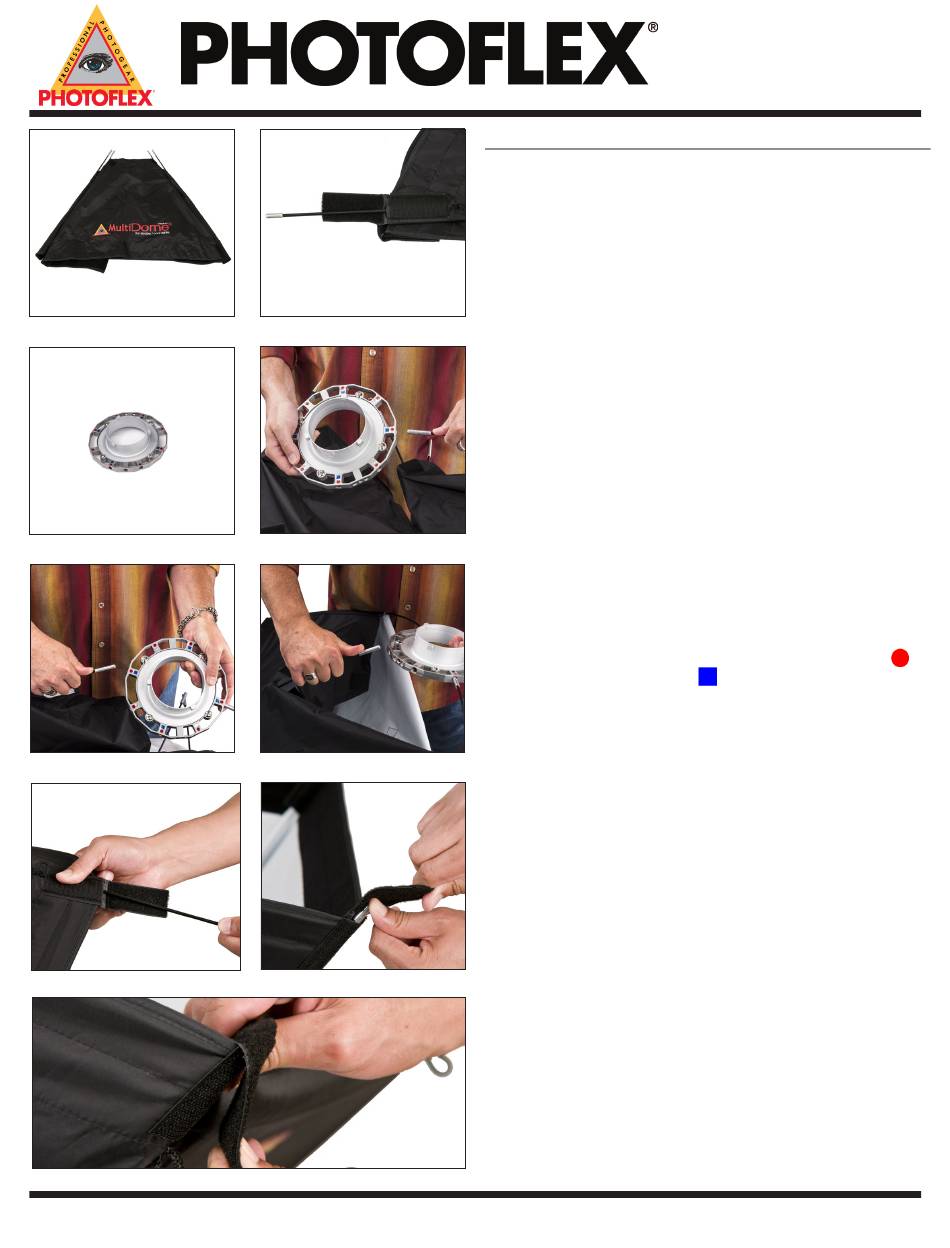

Assemble the Softbox to the Connector (Figures 1-9)
1. Place softbox with all four rods into their sleeves on a flat,
clean surface.
2. If closed, open all four Quick Release Corners (QRC).Pull Velcro® tab
open at each corner so that rods extend freely. (not available on Small
MultiDome.)
3. Notice that the connector has nine receptacle holes, three of which are
"tapped" (except with the extra small LiteDome which comes
with a four hole Basic Connector). The small, medium, large and
extra large LiteDome only use four of the eight octoconnector rod holes.
(The remaining four holes are for use with the OctoDome®, Photoflex's
eight rod softbox.) Current model OctoConnectors use circle icons (
OctoDomes and squares icons (
4. Position connector at the center of the softbox. Insert the first rod into
one of the rod receptacle holes).
NOTE: If you are planning on using the ShoeMount hardware (AC-B222SM)
with this assembly, make sure that one of the large tapped holes is
centered between two inserted rods.
5. Insert the second rod into the hole diagonally opposite the first hole.
6. Insert the third and fourth rods.
7/8. Use one hand to pull QRC flap over rod tip while pushing the rod into
place with your thumb
9. Secure flap to its Velcro counterpart. Repeat this process for the
remaining corners.
) for rectangular Softboxes.
) for
