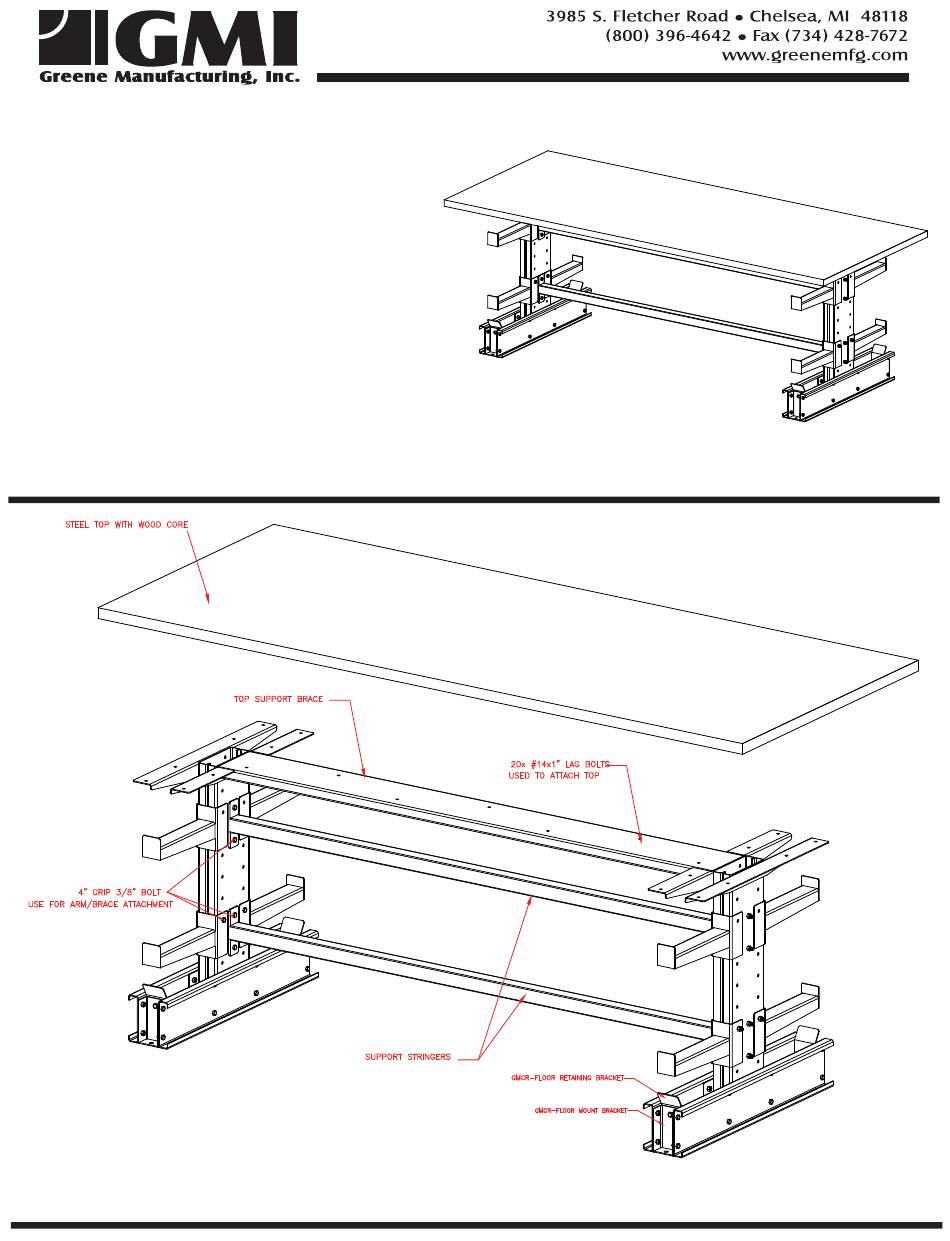

GMCR WORKBENCH
TOOLS REQUIRED FOR ASSEMBLY
Electric Hand Drill, 3/8" Magnetic Hex Driver Bit, Socket
Set, Open End Wrenches.
BEFORE ASSEMBLING THE WORKBENCH
Read through the assembly instructions to familiarize
yourself with the order in which the parts are
assembled.
We suggest that you clear & vacuum the area where
the bench is to be assembled.
It is important that the bench is assembled in the
same sequence as instructed.
HARDWARE
All assembly hardware is provided.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GMI GMCR WORKBENCH
Summary of Contents for GMI GMCR WORKBENCH
- Page 1 GMCR WORKBENCH TOOLS REQUIRED FOR ASSEMBLY Electric Hand Drill, 3/8" Magnetic Hex Driver Bit, Socket Set, Open End Wrenches. BEFORE ASSEMBLING THE WORKBENCH Read through the assembly instructions to familiarize yourself with the order in which the parts are assembled.
- Page 2 Connect the base side plates to the upright. Attach each plate using (4) 3/8 x 1” hex head bolts and nylock nuts per base plate. 3/8 x 1” Nylock Nut Hex Head Bolt Base Side Plates Attach the arms to the uprights. Two per side of the upright.
- Page 3 Insert the face/floor mount plate between the front of the two base plates. Use (4) 3/8” x 1” hex head bolts and nylock nuts to attach. Once bolted in place attach the material retaining plate to the back side of the face plate as shown in Fig.2.
- Page 4 Attach the support brace and top mounting bracket to the uprights. Top Mounting Bracket Insert (2) 3/8 x 4” hex head bolts through the top support brace assembly, followed by the upright and then the top mounting bracket. Secure Top Support Brace with (2) nylock nuts per upright.
