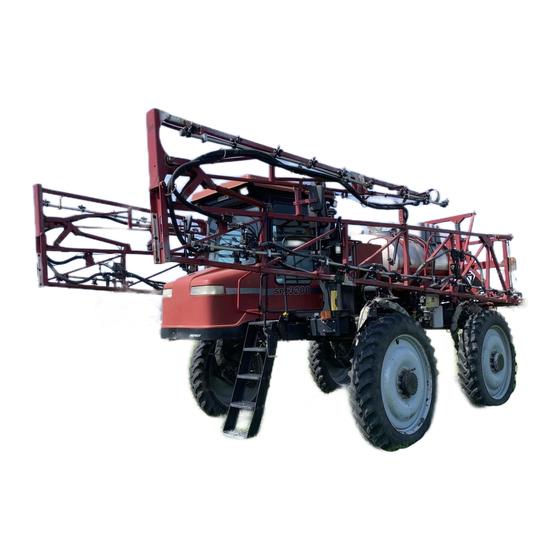

- Page 1 Case IH SPX 320 Closed Center Supplement & Installation Manual P/N 016-0190-034 Rev D 09/15 Copyright 2006, 2015...
- Page 2 DISCLAIMER While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no responsibility for omissions and errors. Neither is any liability assumed for damages resulting from the use of information contained herein. Raven Industries shall not be held responsible or liable for the effects of atmospheric conditions and sunspot activity on the performance of our products.
- Page 3 Manual # 016-0190-034 H A P T E R NTRODUCTION Congratulations on your purchase of the Raven SmarTrax system! This system is designed to provide cutting-edge, hands-free steering of your machine via GPS coordinates.
-
Page 4: Basic Kit
CaseIH SPX 3200 CC SmarTrax Installation Manual Below you will see the kit contents that you should have received with this SmarTrax kit. Basic Kit Contents Case SPX 3200 CC SmarTrax Kit Contents Quantity Item Description Part Number KIT, S.P.S. 063-0181-007 PLATE, MOUNTING, UNIVERSAL HYDRAULIC, 107-0171-578... - Page 5 Manual # 016-0190-034 H A P T E R AFETY Hydraulic Important: Hydraulics are under pressure. Never attempt to open or work on a hydraulic system with the equipment running. Safety Care should always be taken when first opening a system that was previously pressurized.
- Page 6 CaseIH SPX 3200 CC SmarTrax Installation Manual We welcome your feedback about this manual. If you have any comments or Contacting suggestions for improvement, please let us know by contacting our Customer Raven Support Center by any of the following methods: Industries Via phone: 1-800-243-5435 Via mail:...
- Page 7 Manual # 016-0190-034 H A P T E R OUNTING THE NIVERSAL RACKET AND ALVE Position the t-shaped bracket on a flat spot on the steel frame support beam, just below the cab and behind the steering orbital. Attach the universal mounting bracket to teh machine using the provided bolts by drilling holes through the frame or by welding the bracket to the frame.
- Page 8 CaseIH SPX 3200 CC SmarTrax Installation Manual Notes:...
- Page 9 Manual # 016-0190-034 H A P T E R YDRAULICS Remove the existing tank to orbital hose at the orbital and attach a Installing the provided tee fitting to the orbital. Tank Hose Re-connect the hose to the tee fitting. Connect one end of the tank hose (P/N 214-1000-203) to the tee and the other end to the T Port on the steering assist valve.
- Page 10 CaseIH SPX 3200 CC SmarTrax Installation Manual Installing Remove existing left steer hose at the orbital and attach a provided tee fitting to the orbital. A-Port to Left Re-connect the hose to the tee fitting. Steer Hose Connect one end of the A-Port to Left Steer hose (P/N 214-1000-204) to the tee and the other end to the A-port on the steering assist valve.
- Page 11 Manual # 016-0190-034 Installing the Remove the existing load sense hose from the orbital. LS-Steer Hose Attach one end of the new LS-Steer hose (P/N 214-1000-207) to the orbital and the other end to the LS-Steer port on the SmarTrax valve. Installing the Connect the male end of the LS-PV hose (P/N 214-1000-206) to the female end of the machine’s original load sense hose.
- Page 12 CaseIH SPX 3200 CC SmarTrax Installation Manual...
- Page 13 Manual # 016-0190-034 H A P T E R TEERING OSITION ENSOR & IRING ARNESS NSTALLATION Mounting the Important: Be sure not to over extend or over compress the steering position sensor when turning the wheels. Attach the steering position sensor to the right side steering cylinder using band clamps, screws, and brackets.
- Page 14 CaseIH SPX 3200 CC SmarTrax Installation Manual...
-
Page 15: Start-Up Procedures
Manual # 016-0190-034 H A P T E R TART- ROCEDURES After installing the SmarTrax on your machine, always follow these start-up procedures. Make sure the Steering Position Sensor does not over-extend or over- compress when turning the wheels. Turn the wheels fully from side to side numerous times to remove air from the hydraulic system. - Page 16 CaseIH SPX 3200 CC SmarTrax Installation Manual Notes:...
- Page 19 RAVEN INDUSTRIES LIMITED WARRANTY WHAT IS COVERED? This warranty covers all defects in workmanship or materials in your Raven Flow Control Product under normal use, maintenance, and service. HOW LONG IS THE COVERAGE PERIOD? This warranty coverage runs for 12 months from the purchase date of your Raven Flow Control Product.
