NuAire BOXER Installation And Maintenance Manual

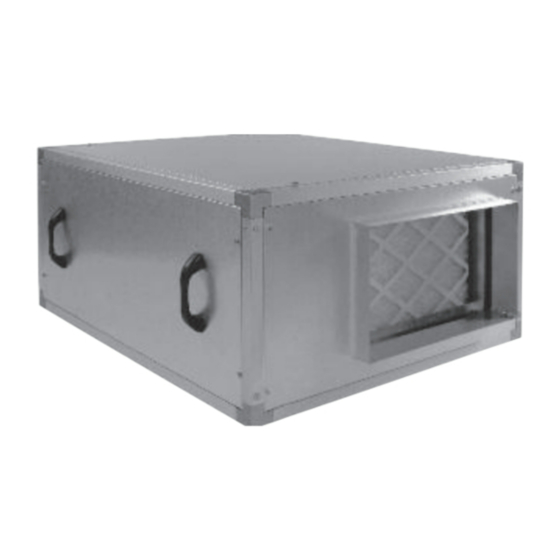

B OX E R
Air Handling Units
Chilled Water
Coil
.
.
.
.
.
.
.
.
.
.
.
.

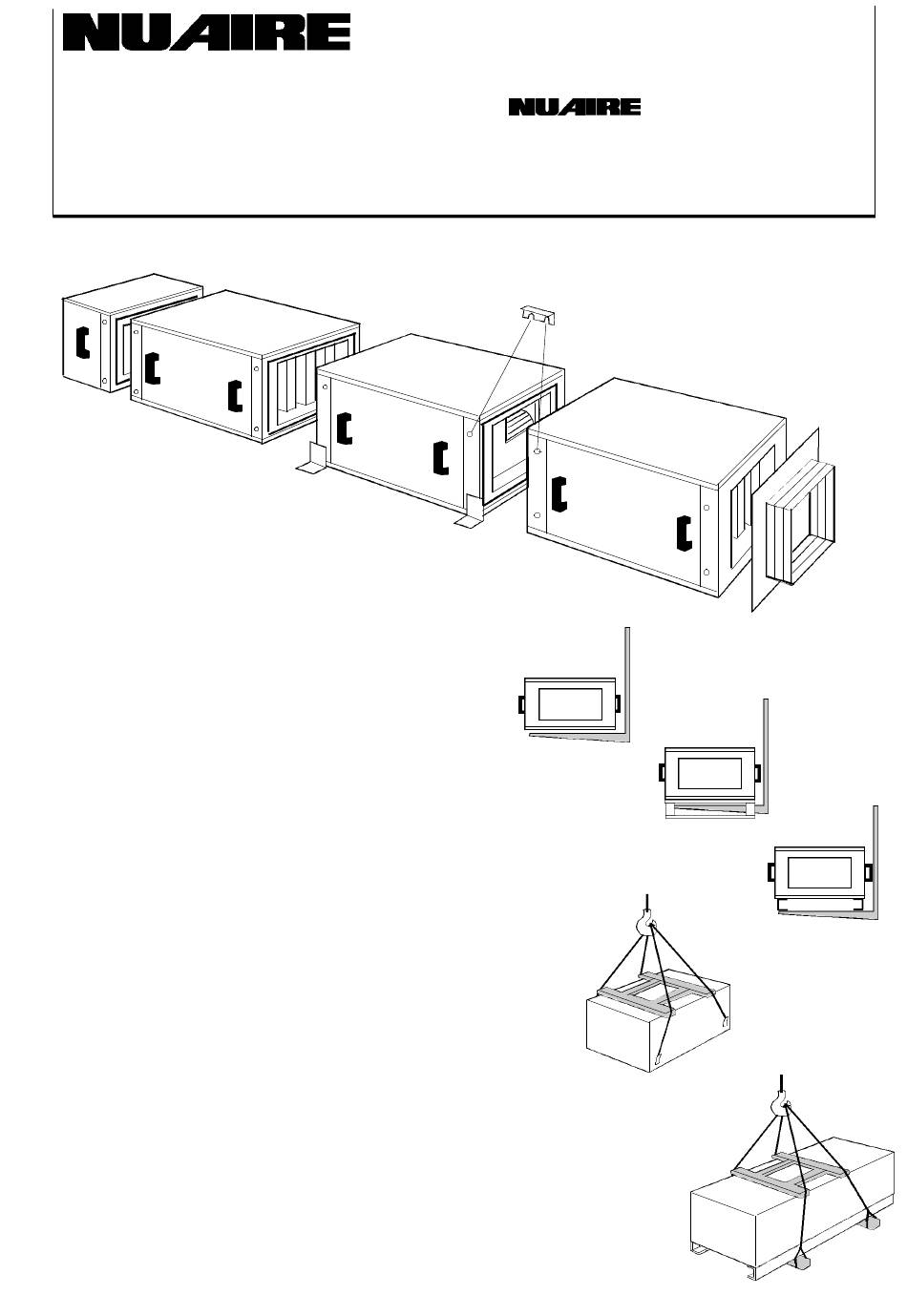

Fig. 1 Typical module arrangement shown for
illustrative purposes only.
Introduction
The NuAire Boxer range of Air Handling Equipment
comprises a selection of component modules. Fig 1 shows a
typical arrangement. The modules provide treatment and
conditioning of supply and extract air for general ventilation
systems. Note: To ensure effective operation of a system it
is essential that these instructions are adherred to.
Receipt of equipment
Depending on the order placed with your supplier; the
equipment will either be delivered as separate modules, for ease
of movement and assembly on site, or as full / sectional
assemblies complete with a base frame.
In either case a dimensional drawing of the system will be
supplied (attached to the supply fan module). The installer must
check that the delivered items correspond with those detailed on
the drawing.
Note: when assembling the system, the specified position of the
components with the associated orientation and airflow
directional restraints must be followed.
Lifting, moving and storage of equipment
When moving the units follow the procedure as shown in the
diagrams. Do not attach lifting devices other than those shown.
When using slings ensure that spreaders are employed to
prevent damage to the unit casings.
Equipment should be stored in a dry location and protected from
the accumulation of building dust and debris.
Do not stack the equipment during storage. Ensure that no
impact loads are applied to the equipment
The handles fitted to the side panels of the units are for panel
removal only. DO NOT attempt to move the unit using the
handles.
Note: Avoid the panel handles when lifting. Consider the
centre of gravity of the unit- this is not always central to the unit.
Silencer
.
.
.
.
.
.
.
.
Feet
Installation
and Maintenance
NuAire Limited
Western Industrial Estate,Caerphilly,
Mid Glamorgan CF83 1XH
Telephone: 02920 885911
Facsimile: 02920 887033
Email: info@nuaire.co.uk
www.nuaire.co.uk
Fan
Brackets
.
.
.
.
.
.
.
.
Forklift
Slings via spreaders
fitted to unit lifting
eyes. NB. individual
modules only
Slings via spreaders
fitted to unit with
baseframe
Fig. 2
Lifting and moving the unit.
Leaflet 670777
APRIL 2000
Silencer
Flexible
Spigot
.
.
.
.
.
.
.
Palletised
Assembly with
baseframe
1
