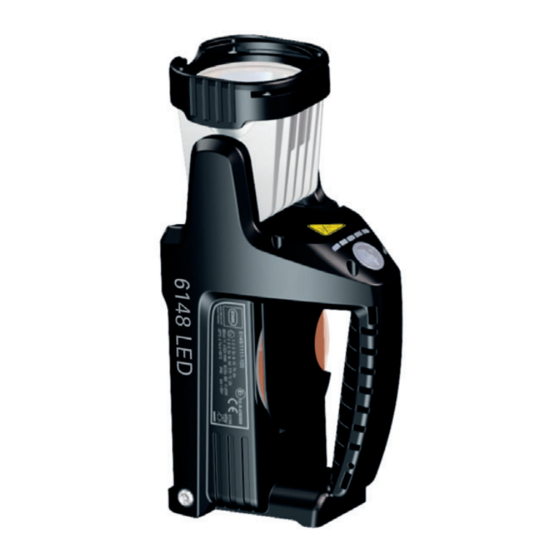

Portable Lamp
Series 6148
Operating instructions
Additional languages r-stahl.com
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6148 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Stahl 6148 Series

Summary of Contents for Stahl 6148 Series

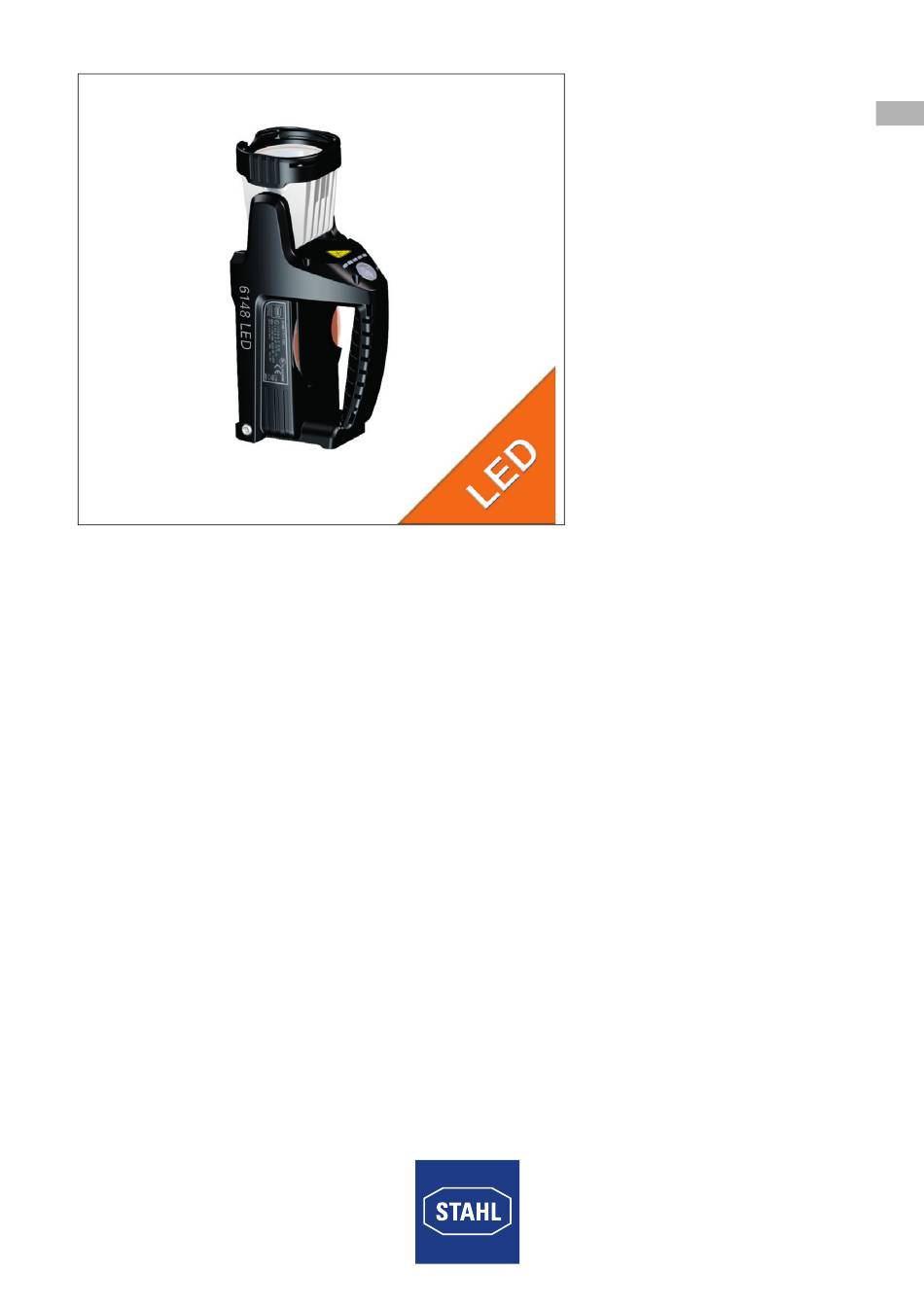

  • Page 1 Operating instructions Additional languages r-stahl.com Portable Lamp Series 6148...

  • Page 2: Table Of Contents

    Contents General Information ....................3 Manufacturer .......................3 Information regarding the operating instructions ..........3 Further documents ....................3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols in these operating instructions .............4 Warning notes .....................5 Symbols on the device ..................5 Safety notes ......................6 Operating instructions storage ................6 Safe use ......................6...

  • Page 3: En En

    • Data sheet For documents in additional languages, see r-stahl.com. Conformity with standards and regulations See certificates and EU Declaration of Conformity: r-stahl.com. The device has IECEx approval. For certificate please refer to the IECEx homepage: http://iecex.iec.ch/ Further national certificates can be downloaded via the following link: https://r-stahl.com/en/global/support/downloads/.

  • Page 4: Explanation Of The Symbols

    Explanation of the symbols Explanation of the symbols Symbols in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Danger due to energised parts Risk of damage to the eyes caused by optical radiation Portable Lamp 206676 / 614860300010 Series 6148...

  • Page 5: Warning Notes

    Explanation of the symbols Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation. The warning notes have the following structure: • Signalling word: DANGER, WARNING, CAUTION, NOTICE • Type and source of danger/damage •...

  • Page 6: Safety Notes

    • Use the device in accordance with its intended and approved purpose only. • Always consult R. STAHL Schaltgeräte GmbH if using the device under operating conditions which are not covered by the technical data. • We cannot be held liable for damage to the device caused by incorrect or unauthorised use or non-compliance with these operating instructions.

  • Page 7: Modifications And Alterations

    Function and device design Modifications and alterations DANGER Explosion hazard due to modifications and alterations to the device! Non-compliance results in severe or fatal injuries. • Do not modify or alter the device. No liability or warranty for damage resulting from modifications and alterations.

  • Page 8: Technical Data

    Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IECEx IBE 11.0009 Ex ib IIC T4 Gb Ex tb IIIC T75°C Db Europe (ATEX) Gas and dust IBExU 11ATEX 1066 E II 2 G Ex ib IIC T4 Gb E II 2 D Ex tb IIIC T75°C Db Certifications and certificates Certificates...
  • Page 9 110 to 240 V AC: approx. 1.8 m long, with Europlug, 2-pin charging cable 12 to 30 V DC: approx. 1.8 m long, with free ends, 2-pin For further technical data, see r-stahl.com. 206676 / 614860300010 Portable Lamp 2019-10-10·BA00·III·en·05...

  • Page 10: Transport And Storage

    Transport and storage Transport and storage General • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free. • Do not drop the device. Batteries • Do not transport together with other materials. •...

  • Page 11: Dimensions / Fastening Dimensions

    Mounting and installation Dimensions / fastening dimensions Dimensional drawings (All dimensions in mm [inches]) – Subject to alterations ø 4,50 [ø 0,18] 279 [10,98] 64 [2,52] 79 [3,11] 14754E00 140 [5,51] 14753E00 Portable lamp Charging unit 135 [5,32] 55 [2,17] ø...

  • Page 12: Mounting / Dismounting, Operating Position

    Mounting and installation Mounting / dismounting, operating position DANGER Explosion hazard when used in hazardous areas. Non-compliance results in severe or fatal injuries. • Only assemble and use the charging unit in safe areas. 7.2.1 Charging Unit Assembly The assembly site must be level and support the weight. Wall mounting •...
  • Page 13 Mounting and installation Table mounting • Place the charging unit (2) on a level surface (3). • Secure it in the correct location using 3 screws (1) (tightening torque 1.5 Nm); screws are not included in delivery. 14772E00 7.2.2 Charging unit connection 110 to 240 V AC •...
  • Page 14 Mounting and installation 7.2.3 Assembly of the adapter in third-party charging units Adapter for third-party charging units LG443 • Insert the adaptor (1) into the third-party charging unit LG443 (2). • Push the brackets (3) onto the third-party charging unit LG 443 (2). •...

  • Page 15: Commissioning

    Commissioning Commissioning DANGER Explosion hazard when used in hazardous areas. Non-compliance results in severe or fatal injuries. • Only assemble and use the charging unit in safe areas. Insert the portable lamp into the connected charging unit before using it for the first time Charging unit: •...

  • Page 16: 9 Operation

    Operation Operation DANGER Explosion hazard due to incorrect installation! Non-compliance results in severe or fatal injuries. • Check the device for proper installation before commissioning. • Comply with national regulations. CAUTION Risk of damage to the eyes caused by optical radiation! Non-compliance can result in minor injuries.

  • Page 17: Emergency Light Operation

    Operation 9.1.3 Switching off • Press the pushbutton when the main light is blinking. • Press the pushbutton at least 5 seconds after the last switching operation. 9.1.4 Dimming mode WARNING Risk of injury due to rotating parts under stroboscopic lighting. Non-compliance can result in severe or fatal injuries.

  • Page 18: Charging Operation

    Operation 9.2.1 Switching the emergency light mode on and off Upon delivery, the "Emergency light mode" function is on. With the function switched off and in case of power failure, the following states will be activated at the portable lamp. before insertion into the charging unit: in case of power failure: Main LED and secondary LED: OFF Main LED and secondary LED: OFF Main LED: ON...
  • Page 19 Operation Charging unit: • Connect to the supply voltage. • Ensure that the "Power" LED lights up. • Insert the portable lamp. Portable lamp: The portable lamp reacts when it is placed in the charging unit – it switches off any LEDs that are switched on, performs a function test and indicates the state of charge and any errors via the LED display.

  • Page 20: 9.4 Battery Capacity Test

    Operation Battery capacity test DANGER Explosion hazard when used in hazardous areas. Non-compliance results in severe or fatal injuries. • Only assemble and use the charging unit in safe areas. The test: • should be carried out once a year. •...

  • Page 21: Indications

    Operation Test sequence • The battery is charged for 12 hours. • Then the LED main light is switched on. • The battery is discharged to 10% of its capacity. • The discharge time is measured and evaluated. green green green green Description Battery test aborted Interruption of the charging operation After charging, the battery capacity is less than...
  • Page 22 Operation Charging operation green green green green Description Battery capacity < 20% Battery capacity < 42% Battery capacity < 65% Battery capacity < 88% Battery capacity ( 98% Battery capacity > 98% Activating and deactivating the emergency light operation green green green green Description Emergency lighting function off Emergency lighting function on Activating/deactivating the charging switch-off when used in a motor vehicle...

  • Page 23: Troubleshooting

    • Insert portable lamp into charging unit. • Charge battery. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number of the device •...

  • Page 24: Maintenance, Overhaul, Repair

    Maintenance, Overhaul, Repair Maintenance, Overhaul, Repair CAUTION Risk of electric shock or malfunction of the device due to unauthorized work! Non-compliance can result in light injuries! • Before carrying out work on the device, switch off voltage supply. • Work performed on the device must only be carried out by authorized and appropriately trained qualified electricians.
  • Page 25 Maintenance, Overhaul, Repair 10.1.1 Battery replacement DANGER Explosion hazard if the device is opened in a hazardous area. Non-compliance results in severe or fatal injuries. • Only open the device in a safe area. 15005E00 6 screws for head (Torx 10) PCB connection line PCB connection line (+;...

  • Page 26: 10.2 Repair

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website.

  • Page 27: Disposal

    Accessories and Spare parts NOTICE Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. Figure Description Art. no. Weight...
