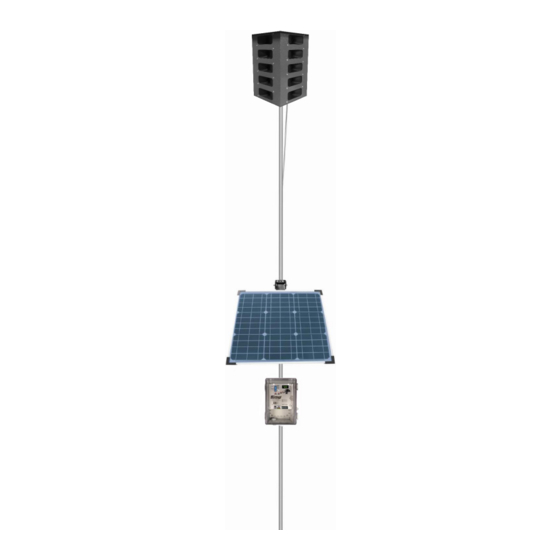

Bird Gard Super Pro Amp User Manual

Enhanced fidelity and dynamic range, multi-function display, usb sound upload, temporary mute button
Hide thumbs Also See for Super Pro Amp:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
•
Enhanced Fidelity and Dynamic Range
•
Multi-Function Display
•
USB Sound Upload
•
Temporary Mute Button
***See our Bird Gard Super Pro Amp installation video on our Bird Gard
YouTube channel at: https://www.youtube.com/watch?v=aIMK7N-EOZk
(Note: The video shows a previous version of the Bird Gard Super Pro AMP,
but the installation is the same as shown.)
Bird Gard 270 E. Sun Ranch Drive / P.O. 1690, Sisters, OR 97759 T 541-549-0205 F 541-549-5286 Info@BirdGard.com
www.BirdGard.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Super Pro Amp and is the answer not in the manual?

Questions and answers

Related Manuals for Bird Gard Super Pro Amp

Summary of Contents for Bird Gard Super Pro Amp

  • Page 1 (Note: The video shows a previous version of the Bird Gard Super Pro AMP, but the installation is the same as shown.) Bird Gard 270 E. Sun Ranch Drive / P.O. 1690, Sisters, OR 97759 T 541-549-0205 F 541-549-5286 Info@BirdGard.com www.BirdGard.com...

  • Page 2: Table Of Contents

    Building a Mounting Pole of Mast Installation*** 20-Speaker Tower Solar Panel Control Box Solar Panel Connections Control Box Settings Recordings Mode Settings LED Display and Mute Button Updating Bird Deterrent Sounds Troubleshooting Warranty Bird Gard Super Pro Amp Display USB Users Manual – 7.7.20 (#655-0077-00)

  • Page 3: Overview

    Overview Bird Gard utilizes the innate power of the natural survival instincts of birds to effectively repel them. New, enhanced fidelity and dynamic range digital recordings of distressed and alarmed birds, along with the sounds made by their natural predators are broadcast through weather-resistant speakers over the top of crops.

  • Page 4: Bird Control Management Guidelines

    • It is always best to run the Bird Gard units at High volume and on the Short time off setting. This ensures maximum “bird stress” and creates a hostile environment.

  • Page 5: Materials List

    Control Box Connector Cable 2 Wire - 10 ft. Long 1/4” x 1-1/8” x 2” Solar Panel Mounting U-Bolts Recommended Group 27 Battery Battery Box (not included) Bird Gard Super Pro Amp Display USB Users Manual – 7.7.20 (#655-0077-00)

  • Page 6: Assembly

    Lay the Control Unit face down. Attach the two Control Box Mounting Brackets to the back with the included screws (Figure 1). Solar Panel Installation and Tilting Instructions Figure 1 Bird Gard Super Pro Amp Display USB Users Manual – 7.7.20 (#655-0077-00)

  • Page 7: Placement

    • Mount the 20-Speaker Tower at least 5 - 10 feet above terrain, crops, trees and other obstacles. • Placing Bird Gard units on top of a hill or small rise will result in give better coverage than at the bottom of a valley.

  • Page 8: Building A Mounting Pole Of Mast

    10 ft. lengths making it ideal for low crops, vineyards and bushes. • You will want to take down your Bird Gard unit after harvest and store it in a dry location until the next season.

  • Page 9: Installation

    8. Rotate the solar panel so it faces SOUTH and tighten the Pivot Bolts, so the panel is at approximately 45 degrees. Approximately 3 ft. U-Bolts Approx. 45 deg. Figure 5 Bird Gard Super Pro Amp Display USB Users Manual – 7.7.20 (#655-0077-00)

  • Page 10: Control Box

    BATTERY Figure 7 CAUTION: Your Bird Gard Super Pro Amp is capable of producing sounds up to 125 decibels. Hearing protection must be worn anytime the unit is on! Bird Gard Super Pro Amp Display USB Users Manual – 7.7.20 (#655-0077-00)

  • Page 11: Control Box Settings

    When the Bird Gard unit is first installed the TIME OFF INTERVAL should be set to SHORT to create the greatest sense of danger and move the birds out of the area the fastest. NOTE: Increasing the TIME OFF INTERVAL may lower the effectiveness of your Bird Gard unit.

  • Page 12: Led Display And Mute Button

    The multi-function LED display screen operates immediately when the control box is turned ON. The screen initially displays the Bird Gard LLC company name followed by the product name, Super Pro Amp. Then the screen indicates the number of the sound recording chip that is currently being played (i.e.

  • Page 13: Updating Bird Deterrent Sounds

    Updating Bird Deterrent Sounds Your Bird Gard Super Pro Amp includes preinstalled bird deterrent sounds. A copy of your bird deterrent sounds is contained on the removable USB stick and are based on the list of birds you provided when your Bird Gard unit was ordered. The combination of bird sounds can be easily updated with the aid of a Windows computer with an available USB port.

  • Page 14: Troubleshooting

    If you have any questions about the use or operation of this product call us toll free at 888-332-2328 Monday - Friday 7:30 am-4:00 pm Pacific Time. Outside the U.S. and Canada call 541-549-0205 Bird Gard Super Pro Amp Display USB Users Manual – 7.7.20 (#655-0077-00)

  • Page 15: Warranty

    Warranty 1-YEAR ABSOLUTE SATISFACTION GUARANTEE: ® IF YOU ARE NOT COMPLETELY SATISFIED WITH THE PURCHASE OF ANY BIRD GARD PRODUCT, CONTACT THE PLACE OF PURCHASE OR OUR CUSTOMER SERVICE DEPARTMENT WITHIN 1 YEAR OF YOUR DATE OF PURCHASE FOR PROMPT AND COURTEOUS REPLACEMENT, REPAIR OR REFUND.
