ADVANTAGE AIR MyPlace User Manual

Hide thumbs Also See for MyPlace:
Table of Contents

Advertisement

Quick Links

Smart Home Systems
User Manual
V3.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MyPlace and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADVANTAGE AIR MyPlace

Summary of Contents for ADVANTAGE AIR MyPlace

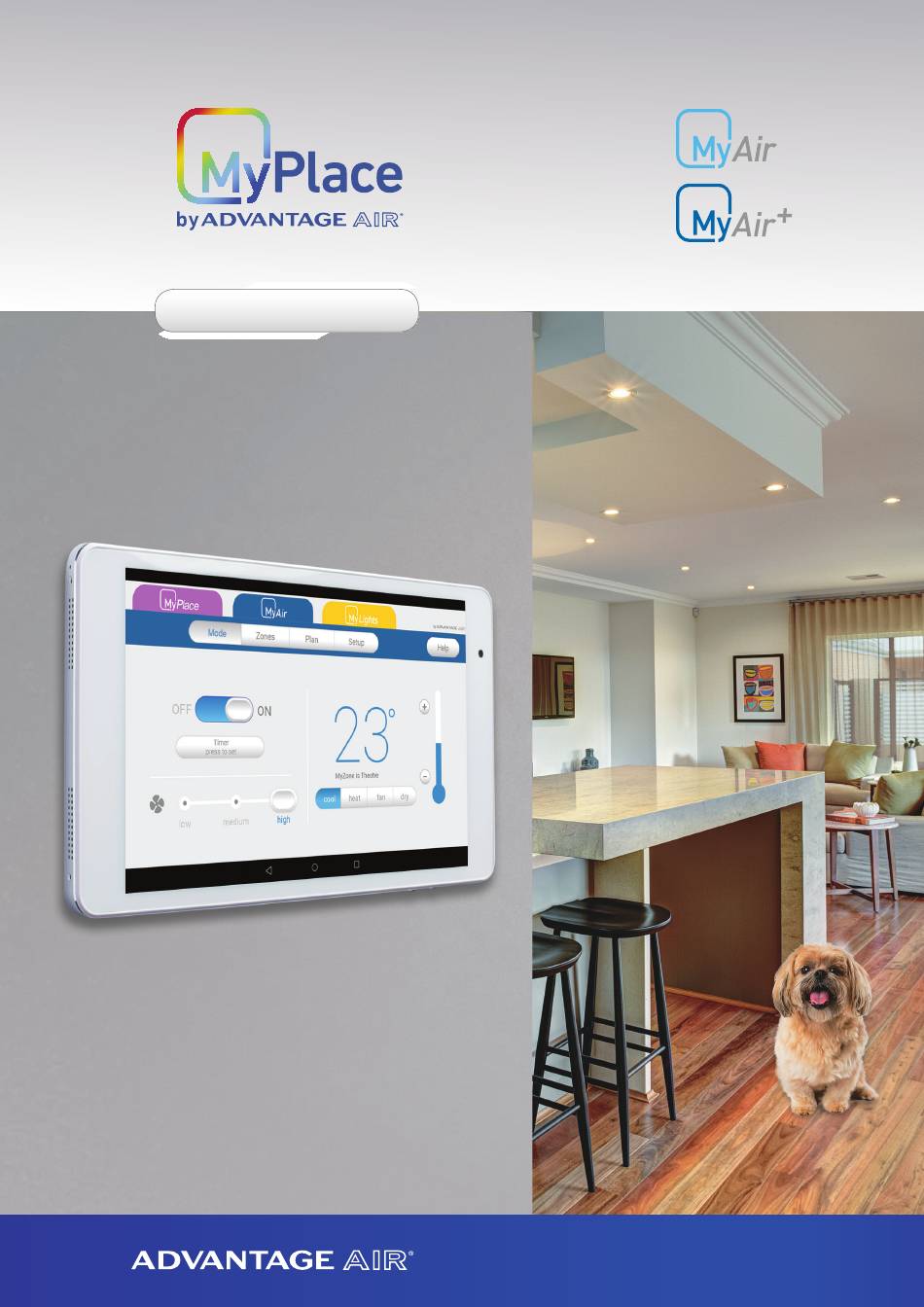

  • Page 1 Smart Home Systems User Manual V3.3...

  • Page 2: Table Of Contents

    MyAir User Manual Contents 1 - INTRODUCTION 2 - MODE PAGE 3 - ZONES PAGE 4 - MYZONE (OPTIONAL) 5 - MOTION ZONE (OPTIONAL) 6 - CONSTANT ZONES 5 - FRESH AIR (OPTIONAL) 6 - PLANS PAGE 7 - PLANS EDIT PAGE 8 - SETUP PAGE 9 - TROUBLESHOOTING MyAir+ User Manual...

  • Page 3: Introduction

    If you walk away from your screen it will go to sleep, to wake the screen simply double tap on a corner of the screen. This is your home screen, press the large MyPlace button to start the MyPlace app. User Manual V3.3...

  • Page 4: Mode Page

    2 - MODE PAGE The Mode Screen on the MyAir tab allows you to control your Air-conditioner’s operation. Mode Zones Plan Setup Help Timer Off in 10hr 30min press to set MyZone is Theatre cool heat medium high From the Mode Screen you can perform the following actions: •...
  • Page 5 MODE PAGE Simple Timer The Simple Timer can be used to turn the Timer aircon unit ON or OFF after a set time. press to set The timer can be set up to 12hours. Off in Pressing the Trash icon clears the timer. 5 hours NOTE: This is a once-only timer that does not repeat each day.

  • Page 6: Zones Page

    If your zone has a temperature sensor installed, MyPlace will allow you to choose your desired temperature with the - / + buttons. MyPlace will aim to maintain the desired temperature in that zone by automatically controlling airflow when the air conditioner is running.

  • Page 7: Myzone (Optional)

    4 - MYZONE (OPTIONAL) The MyZone feature makes that particular zone the “information centre” for the air conditioning unit. That means the set-point for that zone becomes the set- point the air conditioning unit will work toward. The actual measured temperature of that zone is the temperature sent to the unit for it to make its decisions about whether to start/stop or speed up/down to effectively achieve the set-point while maintaining constant airflow in the MyZone.

  • Page 8: Motion Zone (Optional)

    5 - MOTION ZONE (OPTIONAL) Motion controlled Zones vary the temperature in unoccupied zones in order to save energy on air conditioning empty spaces. For example: You are cooling your home with the master bedroom Zone target temp set at 24 with motion enabled.

  • Page 9: Constant Zones

    6 - CONSTANT ZONES Depending on your specific installation, your MyAir system may be set up with electronic Constant Zones. These are pre-programmed by your installer to relieve excess air pressure in your air-conditioning system if insufficient zones are open. Constant Zones are noted with a small letter C to the right of the zone name.

  • Page 10: Fresh Air (Optional)

    5 - FRESH AIR (OPTIONAL) If your system is fitted with the optional fresh air feature, you will find a button at the bottom of your zones screen as pictured below. Turning ON fresh air will enable your system to draw in air from outside the home. This feature is particularly useful when the outside temperature is pleasant such as in the evenings.

  • Page 11: Plans Page

    6 - PLANS PAGE Plans allow you to set your air conditioner up just the way you like it, this even includes which Zones to have turned ON and their air flow or target temperature setting. Once your Plan is captured you can have it activated automatically at any time on any day.

  • Page 12: Plans Edit Page

    7 - PLANS EDIT PAGE You will enter the Plans Edit Screen after pressing the + button to add a new Plan or if you press on an existing Plan. From the Plans Edit Screen you can perform the following actions: •...
  • Page 13 Times Plan will start / stop Set up new Plan 1. Configure Aircon(s) and Zones to the required setup*. 7 - PLANS EDIT PAGE Press then add button to create a new Plan. *See other help pages for Aircon and Zone setup. Here’s the Plan...

  • Page 14: Setup Page

    Western Australian time, you will need to choose the appropriate time zone for your location. Your MyPlace tablet is set to auto update the date & time from the internet provided you are connected to the internet.

  • Page 15: Troubleshooting

    • Check for any fault codes displayed in the SETUP page, if a fault code is shown contact your dealer and advise them of the fault code. • Ensure your MyPlace tablet is up to date with the latest app updates from the Google Play Store.

  • Page 16: Myair+ User Manual

    MyAir+ User Manual Contents 1 - INTRODUCTION 2 - HOME PAGE 3 - MYAIR+ PLANS 4 - NAMING AIR-CON UNITS MyAir User Manual User Manual V3.3...
  • Page 17 MyPlace wall mount touch screen. 2 - HOME PAGE When the MyPlace app is started the MyAir+ tab will display the home screen as shown above. Each icon set above represents a separate air-con, pressing on the top left of an icon will open that air-con unit.
  • Page 18 3 - MYAIR+ PLANS The MyAir+ Plans screen can be accessed from the Plans button in the bottom right hand corner of the MyAir+ Home screen. MyAir+ Plans apply to all of your air-con units, this means that the “captured” snapshot for the plan will include the state of all air-cons in your system as well as all the zone settings for each of the air-cons.
  • Page 19 For further assistance, call our MyTeam Support on 1300 850 191, Mon-Fri from 6am to 5pm WST. Advantage Air Aust Pty Ltd reserves the right to change specifications, modify designs and discontinue items. Whilst we try to keep every detail in this document current and accurate, if there are differences or changes then Advantage Air shall not be liable for these.
