Instructions Created by an:

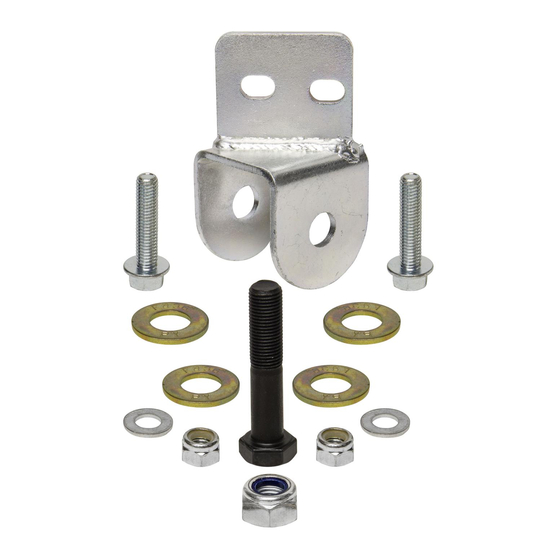

Suzuki Samurai Steering Stabilizer Bracket for 3"
Drop Pitman Arm
(SKU# SST-SB-DP)
Bracket to be used with
this
Drop Pitman Arm
SST-DPNS
CAUTION:
Safety glasses should be
worn at all times when working with
vehicles and related tools and
equipment.
For additional copies of these
and other instructions go to:
www.lowrangeoffroad
tab.
"Instructions"
Installation Instructions
and click on the
Suggested Tools:
• 19mm Box End Wrench
• 19mm Ratcheting Box End Wrench
• 13mm Box End Wrench
• 13mm Ratcheting Box End Wrench
Advertisement
Table of Contents
Related Manuals for Low Range Off-Road SST-SB-DP
Summary of Contents for Low Range Off-Road SST-SB-DP

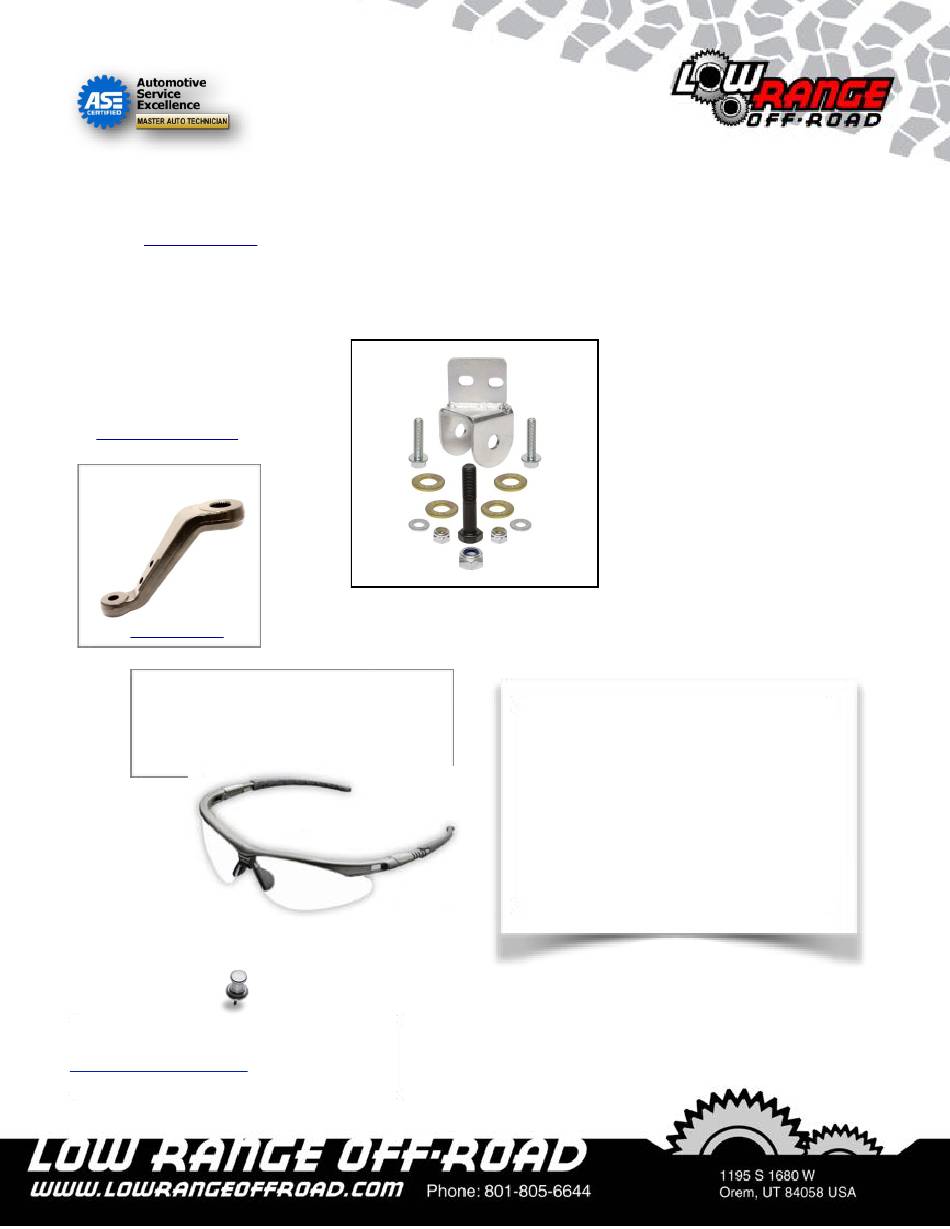

- Page 1 Instructions Created by an: Suzuki Samurai Steering Stabilizer Bracket for 3" Drop Pitman Arm (SKU# SST-SB-DP) Installation Instructions Bracket to be used with this Drop Pitman Arm SST-DPNS CAUTION: Safety glasses should be Suggested Tools: worn at all times when working with vehicles and related tools and equipment.
- Page 2 Lifting and Supporting the Vehicle Note: Lifting the vehicle is optional. It simply makes the job a little easier. This job could be done with the vehicle on the ground. Lifting Option 1 Lift and support the vehicle on a twin post, frame contact, lift.
- Page 3 Lifting Option 2 Lift the front of the vehicle with a floor jack and support it on safety stands. Front Floor Jack Steering Stabilizer Parts Identification Steering Stabilizer Pin Top Stabilizer Flat Washer Stabilizer Stabilizer Stabilizer Bolt Pin Top Pin Bottom Bushing Bushing...
- Page 4 IMPORTANT NOTE: These instructions were created using a Samurai with an OEM (Original Equipment Manufacturer) steering stabilizer which requires the use of all four washer spacers (See Step 2 blow). If you are installing the stabilizer bracket with an aftermarket stabilizer you my NOT need all 4 spacer washers. ...
- Page 5 Step 5 Step 6 Install both of the supplied M8 nylock While holding the bolt with a 13mm box nuts. end wrench, tighten the nylock nuts using a 13mm ratcheting box end wrench. Tighten the second nylock nut in the same way.
- Page 6 Low Range Off-Road Technical Support at 801-805-6644 M-F during regular store hours. Thank you for purchasing from Low Range Off-Road. These instructions are designed as a general installation guide. Installation of many Low Range Off-Road products require specialized skills such as metal fabrication, welding and mechanical trouble shooting.
