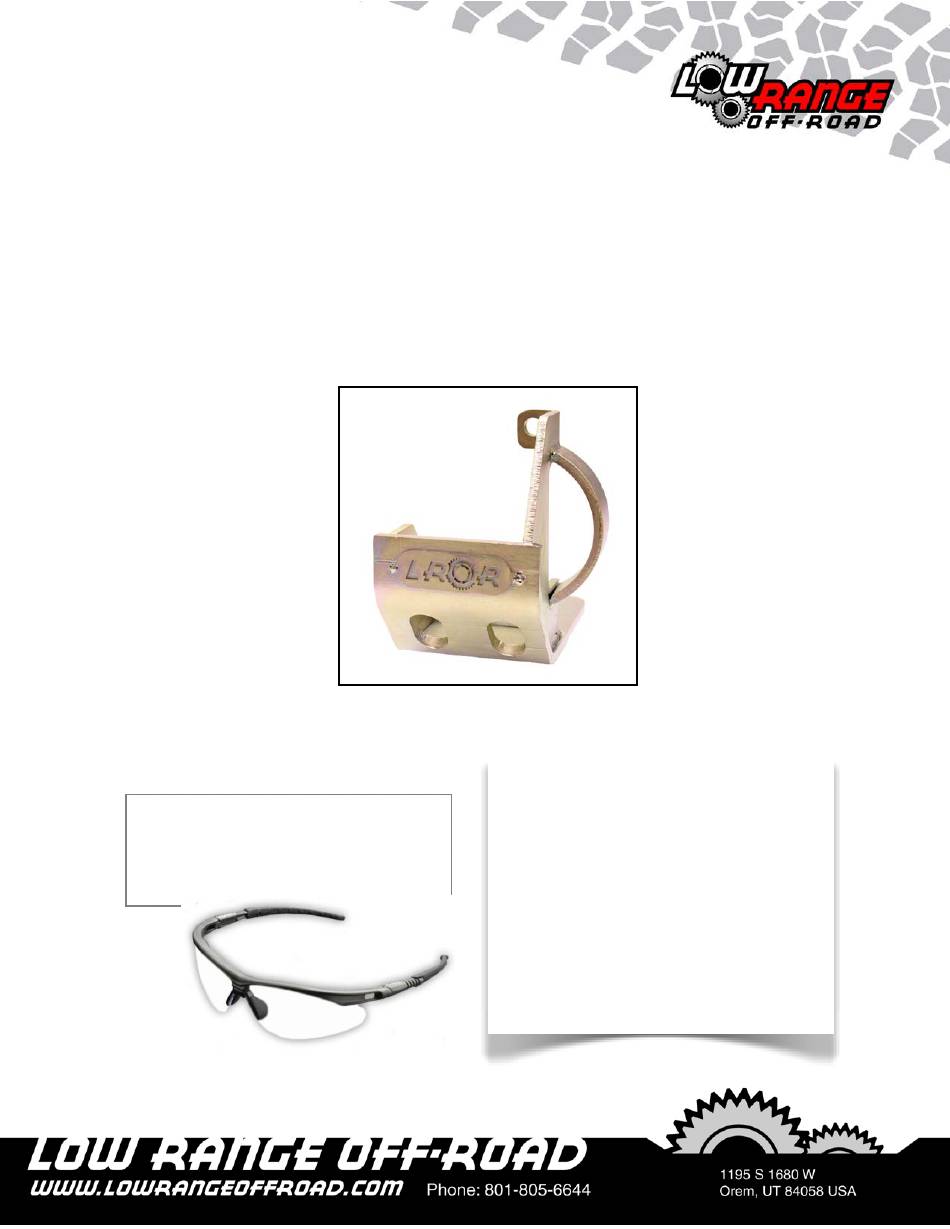

Toyota Electric E-Locker Motor Guard
(SKU# TDI-ELMG)
CAUTION:
Safety glasses should be
worn at all times when working with
vehicles and related tools and
equipment.
Installation Instructions
Suggested Tools:
• 12 mm Socket
• Ratchet
• Extension
• Hacksaw
• Permanent Marker (White)
• Bench Vice
• File
Advertisement
Related Manuals for Low Range Off-Road TDI-ELMG
Summary of Contents for Low Range Off-Road TDI-ELMG
- Page 1 Toyota Electric E-Locker Motor Guard (SKU# TDI-ELMG) Installation Instructions Suggested Tools: CAUTION: Safety glasses should be worn at all times when working with • 12 mm Socket vehicles and related tools and • Ratchet equipment. • Extension • Hacksaw • Permanent Marker (White) •...
- Page 2 Bolt Nuts Step 1 Step 2 Safely position the vehicle on a twin Remove the E-Locker fasteners (two post lift. nuts and one bolt) using a 12 mm socket. Note: We did this job on a twin post lift but it could easily be done with a floor jack and jack stands or it could be done without lifting the vehicle at all.
- Page 3 E Locker Cover Modification Step 4 Step 4 Continued Mark the cover as shown. Cover shown properly marked. Step 5 Step 5 Continued Secure the cover in a vice and E Locker cover properly cut. along the marks using a hacksaw (or cut off wheel).
- Page 4 Step 6 Smooth the rough edgers with a file. Note: We also recommend painting the exposed metal to reduce the risk of rust. E Locker Guard Installation Leave lock washer off Step 7 Step 8 Reinstall the E-Locker cover and snug Install the E-Locker guard and tighten the (2) attaching bolts.
- Page 5 Low Range Off-Road Technical Support at 801-805-6644 M-F 8am-5pm MST. Thank you for purchasing from Low Range Off-Road. These instructions are designed as a general installation guide. Installation of many Low Range Off-Road products require specialized skills such as metal fabrication, welding and mechanical trouble shooting.
